Smart Vascular Screening Device
Arterial Stiffness measurement
Provides state-of-the art monitoring and diagnosis of arterial stiffness which presages potential blood circulation disorders.
Important for disorders in the lower limbs, which is a major risk in older patients in Cyprus and may not be successfully monitored by standard blood pressure monitors.
Clinical quality measurement of blood pressure and arterial hemodynamic
Allows Practitioners simplified procedure and accurate reporting, to know the vascular age of patients.
1. Measures the Cardio-Ankle Vascular Index (CAVI)
2. Ankle Brachial Index (ABI)
3. Blood pressure

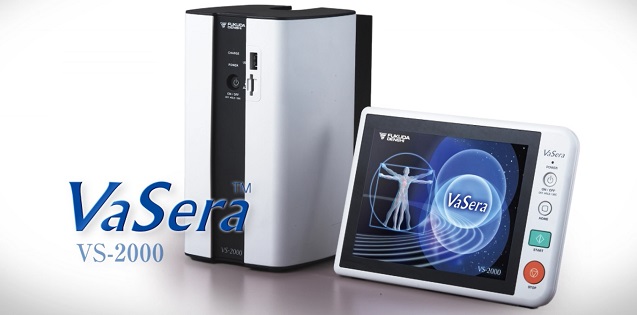

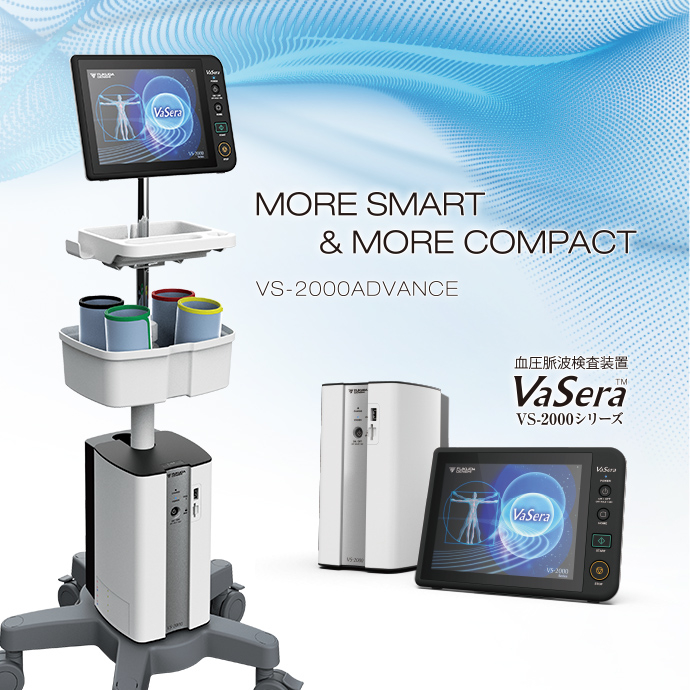

Flexibility with an integrated touch screen and adjustable trolley and it can be used on a desk.
VS-2000 EXAMINATIONS

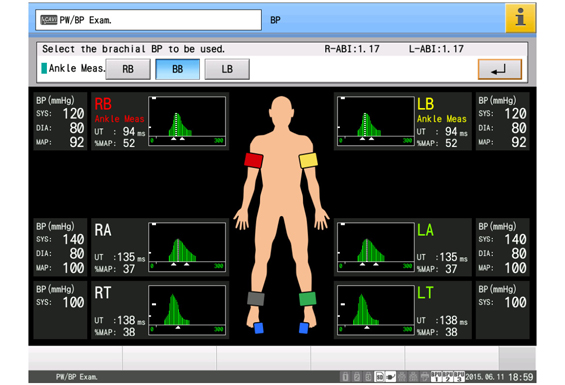

Blood Pressure
Multiple measurements and the doctor can select the measurement with the best quality.
On the screen are displayed the Mercury blood pressure meter, the average values and the pulse amplitude graph. The examination conforms with AHA and ESH guidelines.

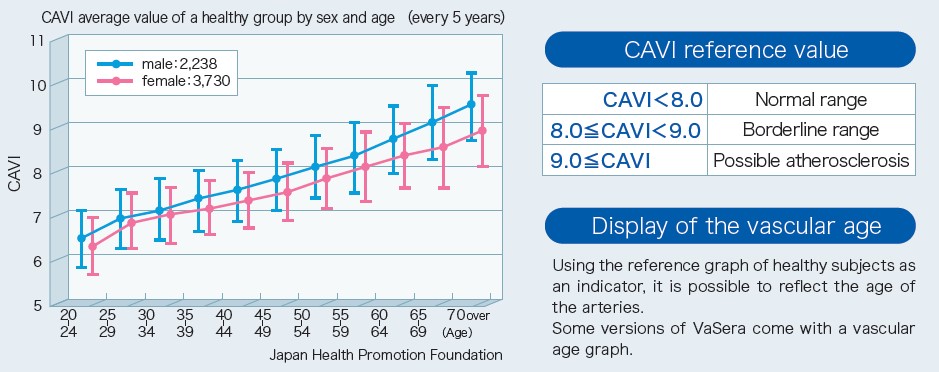

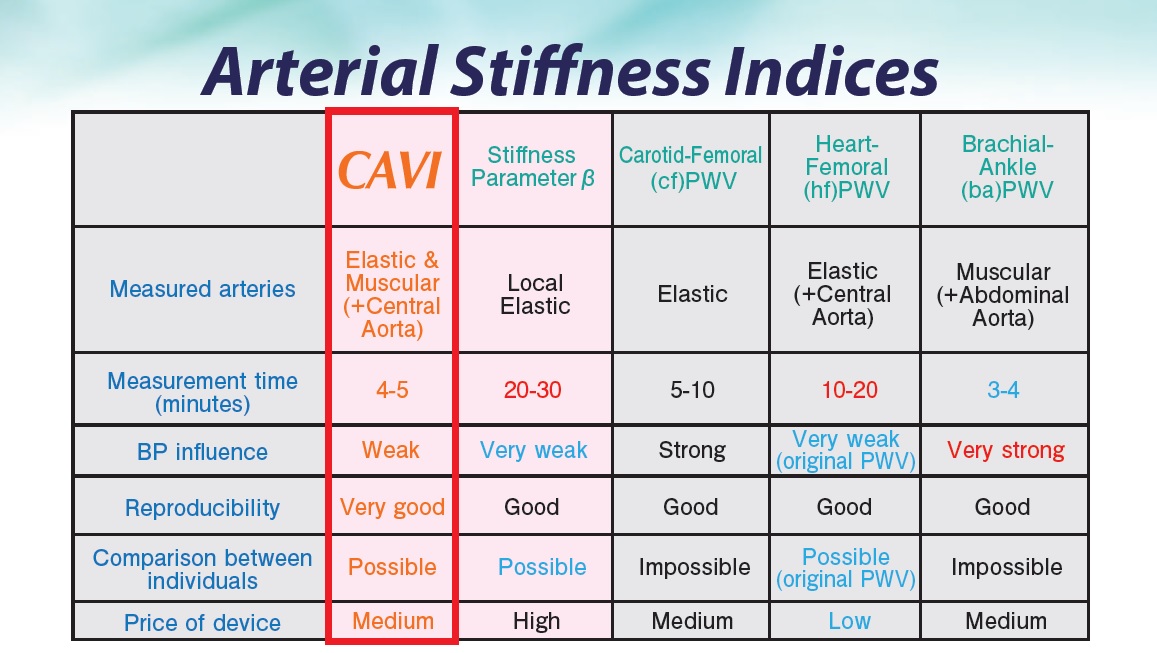

Cardio-Ankle Vascular Index (CAVI)
The degree of artery stiffness between the heart and ankle.
This index is independent of fluctuation in blood pressure and higher becomes, the stiffer the artery is.
Very good indication for Atherosclerosis. Using this index you can determined the vascular age of the artery for better understanding by the patient.
Ankle Brachial Index (ABI)
Degree of stenosis, occlusion in the peripheral arteries.
The early detection of the peripheral artery disease is important because it is one of the major causes to lead in more serious diseases in cardio and cerebrovascular.
Toe Brachial Index (TBI)
By using the toe cuffs (optional), the doctor can measure the toe blood pressure and obtain the TBI.
This index can be used for patients with severe calcification or occlusion in lower limbs, which is hard to detect the blood pressure waveforms.

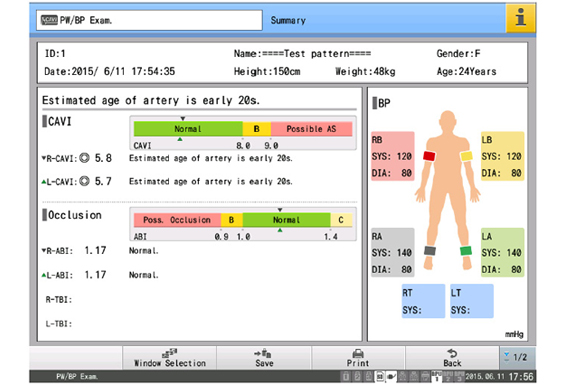

VS-2000 SOFTWARE
Simple and Accuracy GUI
VS-2000 FEATURES & SPECIFICATIONS

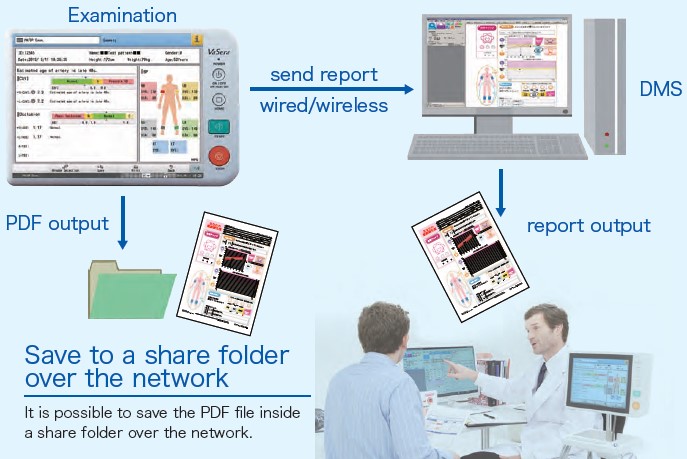

Preview function & network
Various reports for the doctor and the patient are available.
Offerinf print preview of the reports for easy observation of the whole examination. Along with the integrated LAN or WLAN (optional) network the measurements can be sent in a personal computer for easy management of its patient database.
ECG module
The device is equipped with an optional 12 lead ECG module for a more compact and one stop shop device that fits in the doctor office in Cyprus.

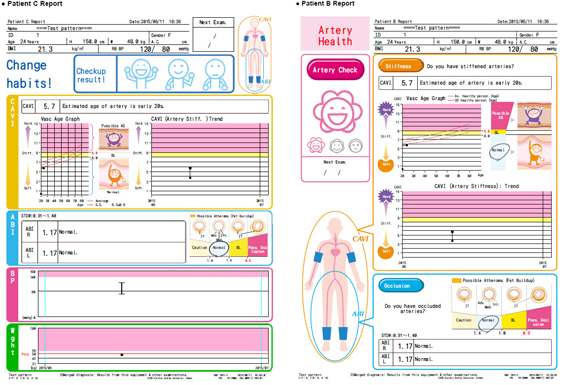

Reports(printing color report can be selected)
1. Standard report: Concisely presents CAVI, ABI and interpretation.
2. Detailed report: Enables confirmation of CAVI, ABI, body weight and BMI in time series as well as evaluation of medication effects.
3. For tester report: Presents data using graphs and illustrations.
Measuring range: 0-300 mmHg
Pressure accuracy: ± 3 mmHg
Measuring method: Oscillometric
PCG frequency: 165-280 Hz within -3db
Main unit: 178 (W) x 181 (D) x 315 (H) mm
Display: 297 (W) x 95.5 (D) x 210 (H) mm
