Brain-NIRS System !

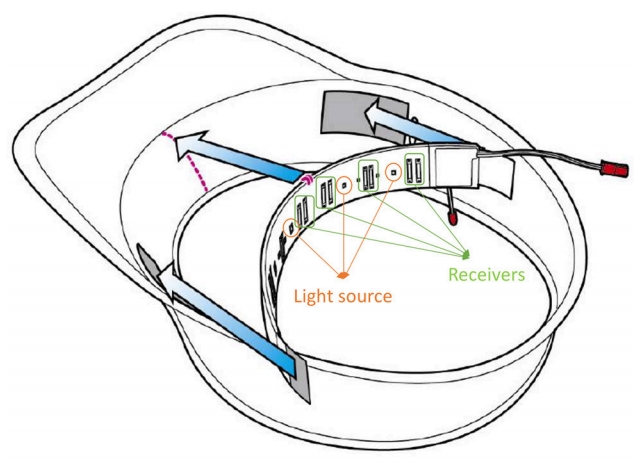

Wearable brain blood visualization Device !

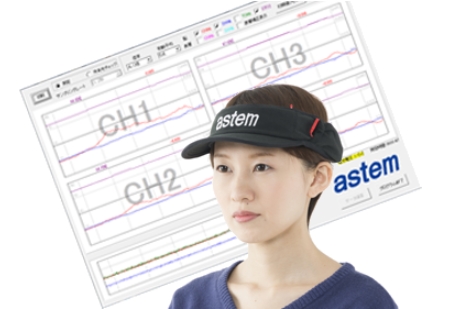

Wearing sun-visor, measuring start !

Extremely lightweight (110g) NIRS device !





















System features

- Extremely lightweight of 110g (Sun Cap type)

- Stretch fabrication

- Size : M/L size for men, M/S for women, S for kids

- Increasing accuracy of deep layerby using surface layer blood volume

- Displaying real time trend

- Enabling long periods measurement with low power consumtion













Specifications

- LED sensor : 4channels (fixed)

- Measurable items

  1) Surface layer (scalp) : oxy-Hb, deoxy-Hb

  2) Deep layer (brain) : oxygen saturation (rSO2 : %), oxy-Hb, deoxy-Hb (mM)

- Acceleration sensor (X, Y, Z)

- Increasing the accuracy of deep layer by using surface layer blood volume

- Wireless devcie : Zigbee protocol

- Power Supply : 2AAA dry batteries

- Sampling rate : Max20Hz













Software

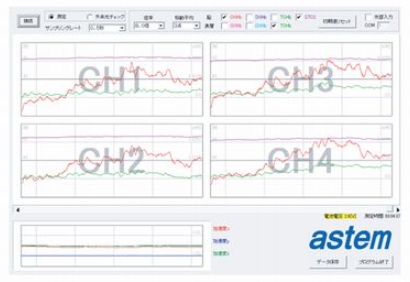

- Measurement screen on PC

















Contact & Ask



Smart Brain Research Center

TEL : 02 553 0923



www.mdksystem.com
