[HRV Analysis]Smart HRV Analysis program, Kubios HRV Scientific, HRV분석
Kubios HRV Scientific is the gold standard heart rate variability (HRV) software
Offering unparalleled precision and power for HRV analysis.
Specifically designed for scientific research and professional use, it is trusted by over 1,800 universities
Software Features

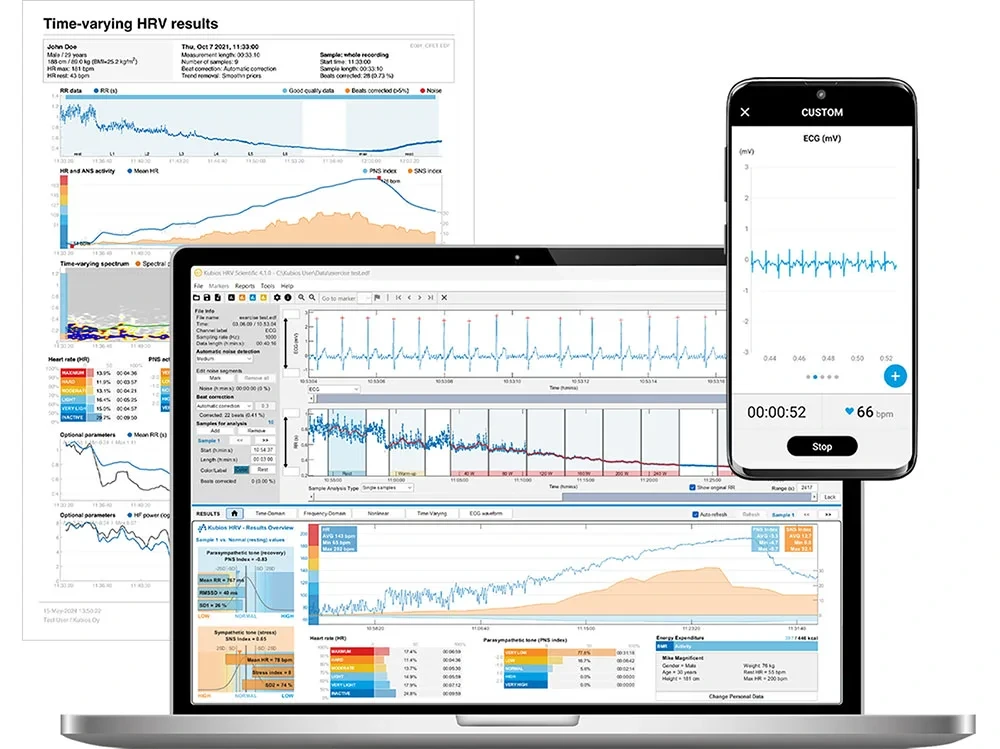

1. Kubios HRV mobile app for custom HRV measurements
2. Supports HR, ECG and PPG devices (see supported devices)
3. Accurate beat detection, noise detection, and beat correction
4. Analyze data in specified time windows or or assess HRV time trends with time-varying analysis
5. Over 40 HRV parameters for in-depth analysis
6. PNS and SNS indexes for stress monitoring
7. Validated respiration rate (RESP) estimate
8. ECG waveform analysis (e.g., QRS duration, QT/QTc times)
9. ANS function analysis (Valsalva maneuver, deep breathing, head-up tilt)
10. Physiological performance analysis (HR, RESP, TRIMP, ventilatory thresholds VT1 and VT2, VO2, and HR recovery)
11. Reporting options (CSV, PDF, MAT, SPSS-friendly exports)
12. Suitable also for HRV analysis in various animal species
13. For Windows (10/11, 64-bit) and macOS (Monterey, Ventura, or Sonoma).
License
1. Single User Licenses
Used on one computer at a time (one active session) and conduct one HRV measurement at a time with the app.
2. Group Measurement License
Supports simultaneous HRV measurements for 10 or more participants (license-dependent) using the Kubios HRV mobile app, with all data analyzed in Kubios HRV Scientific.
3. Classroom License
Designed for educational institutions, the Classroom license covers 10 or more computers (license dependent) with a single license, simplifying license management. Available also for larger research groups.
Kubios HRV Scientific Specifications
Operating system
- Windows and macOS
Kubios HRV mobile app
- Custom Measurement mode of the Kubios HRV app
- Sensor: Polar H10 and Verity Sense sensors, as well as other Bluetooth HR sensors supporting RR interval data
Supported devices
- HR monitors: Polar, Garmin, Suunto, and others that provide IBI or RR data.
- ECG devices: Actiheart 5, AliveCor Kardia, Biopac, Bittium Faros, etc.
- PPG devices: Empatica E4, HeartMath emWave, and other PPG devices with IBI data
- Supported file formats include EDF/EDF+, Biopac ACQ3, FIT, and custom formatted text and CSV files
- Small animal HRV data is supported
- See detailed information about supported devices
Pre-processing
- Built-in beat detection for ECG and PPG data
- Automatic noise detection algorithm with adjustable sensitivity
- Automatic beat correction algorithm for correcting missed, extra and misaligned beats from RR interval data
- Trend removal for optimal short-term HRV analysis

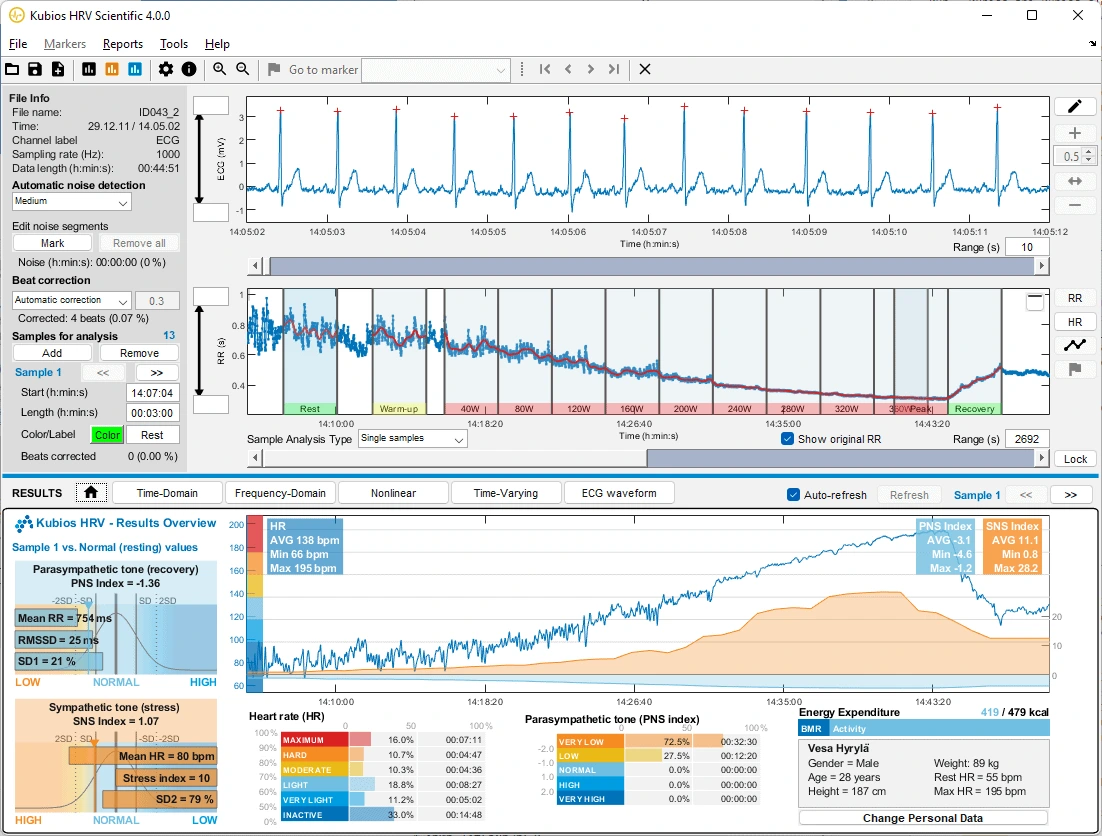

HRV analysis

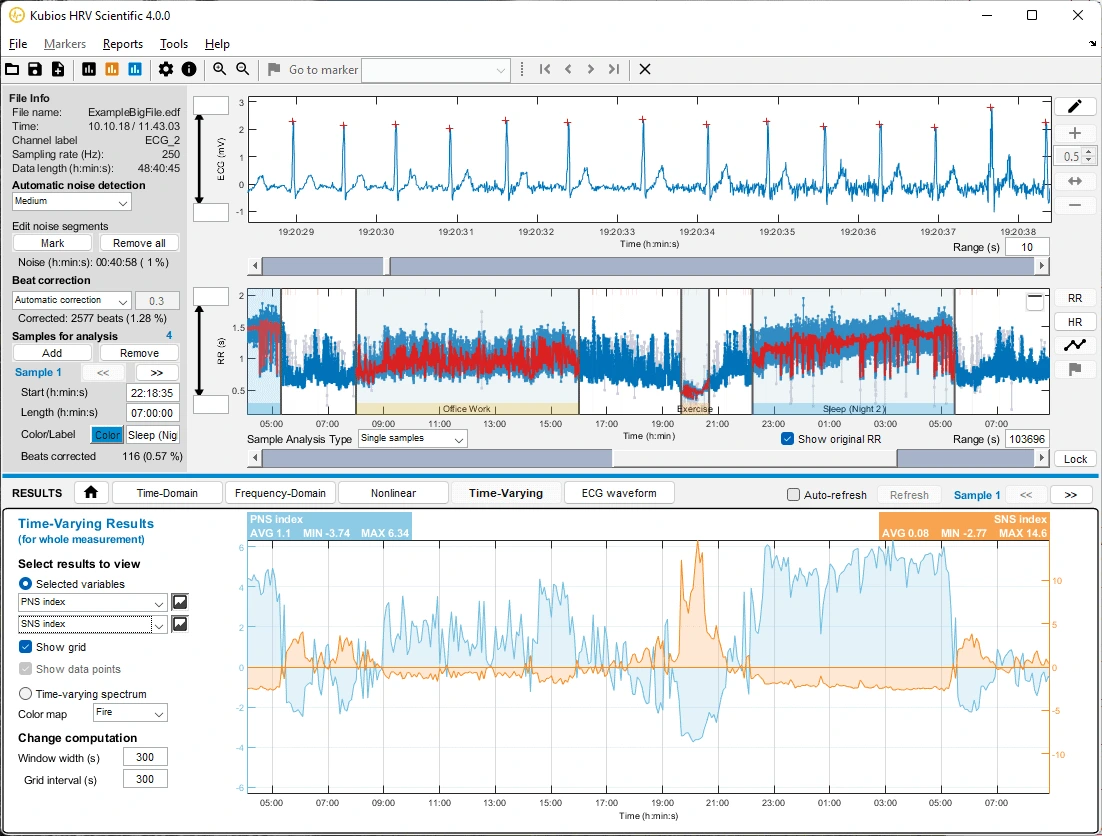

- Analyze specified time periods or entire recordings using time-varying analysis
- Parasympathetic (PNS) and sympathetic (SNS) indexes for stress and recovery monitoring
- Time domain HRV parameters: Mean RR, SDNN, RMSSD, pNN50, HRV triangular index, TINN, HR deceleration (DC) and acceleration capacity (AC) etc.
- Frequency-domain HRV parameters: VLF, LF and HF band powers, peak frequencies and LF/HF ratio
- Nonlinear HRV parameters: Poincare plot (SD1, SD2, and SD2/SD1), ApEn, SampEn, Detrended fluctuation analysis (DFA), Recurrence plot analysis (RPA), and Multiscale entropy (MSE)
- Respiration rate (RESP) estimate for exercise physiology and accurate respiratory sinus arrhythmia (RSA) analysis

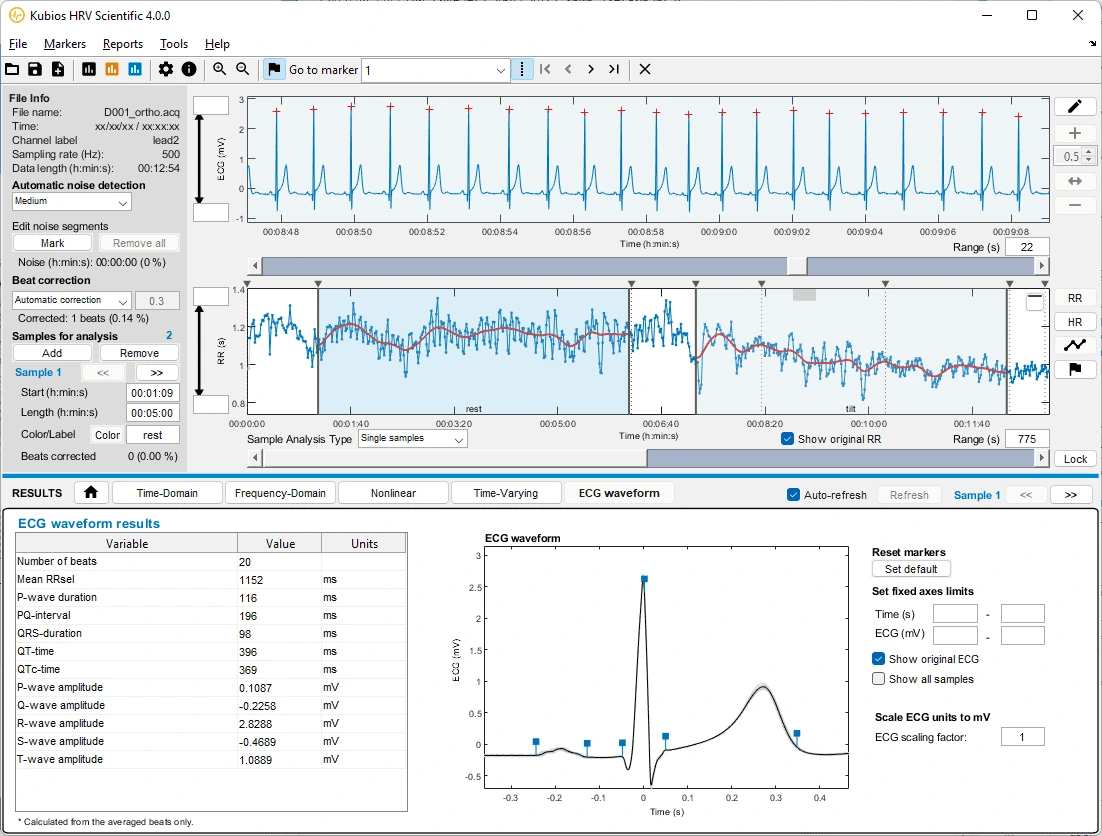

ECG waveform analysis
- Analyze QRS duration, QT/QTc times, and P, Q, R, S and T wave amplitudes for specified time periods
- Parameters are extracted from an average ECG waveform (selection criteria for averaged beats can be adjusted)
ANS function analysis
- Analyze standard autonomic nervous system (ANS) function tests, including Valsalva ratio, HR response to deep breathing, 30:15 ratio for head-up tilt challenge
- Additional HRV scores for the deep breathing period as well as for the supine and standing periods of the head-up tilt challenge.
Sports and exercise analysis
- Detailed physiological performance metrics, including HR, HR reserve, RESP, training impulse (TRIMP), ventilatory thresholds (VT) based on HR, RESP and DFA-alpha1, and VO2
- Heart rate recovery at 60s, 120s and 300s increments as well as fast 30s recovery (T30).
Reports and results export

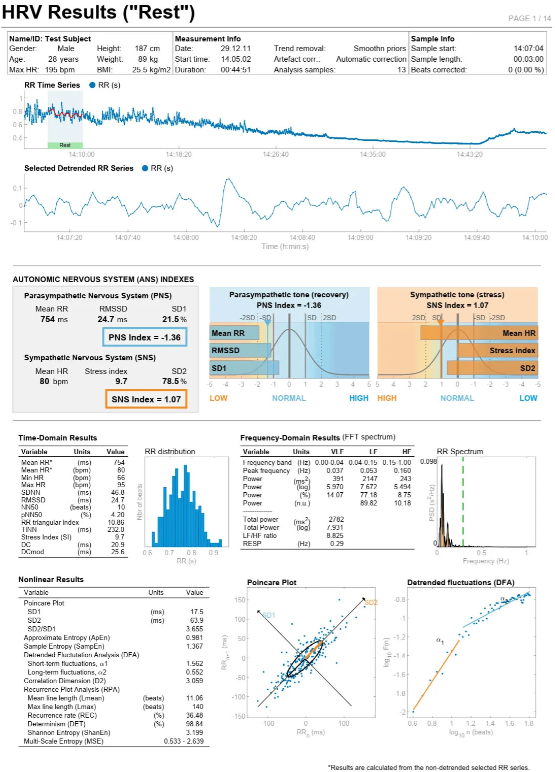

- HRV analysis results (PDF report, CSV, and SPSS-friendly exports). The SPSS-friendly batch file export is ideal for group analyses or repeated measures

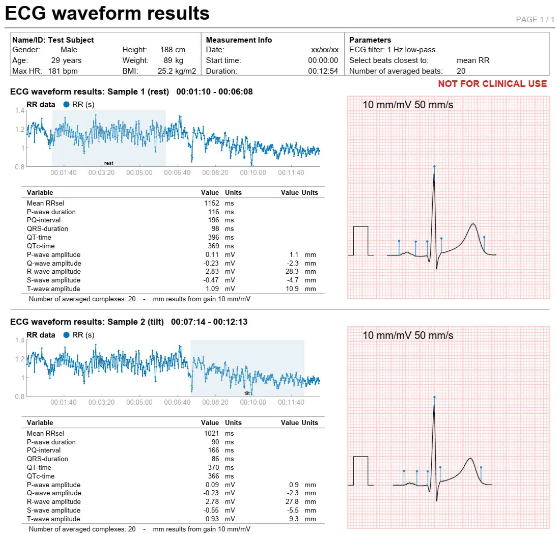

- ECG waveform analysis results (PDF report, CSV, and SPSS-friendly exports)

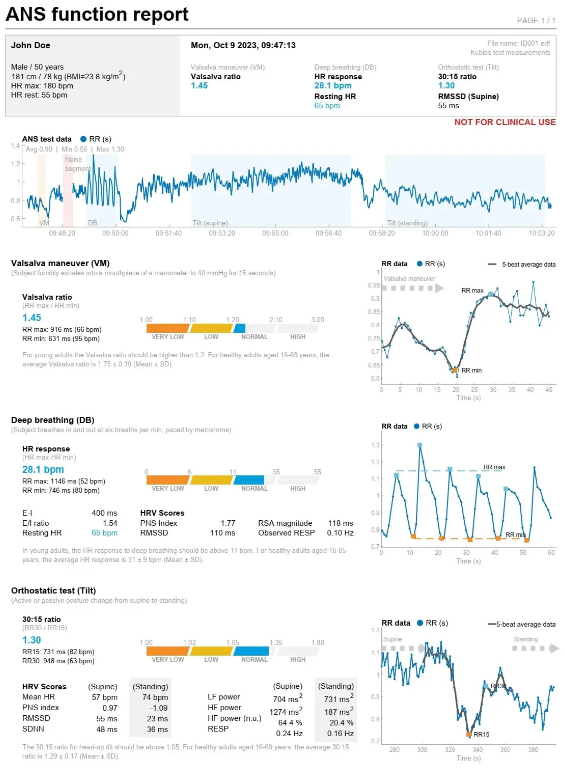

- ANS function analysis results (PDF report and CSV export)

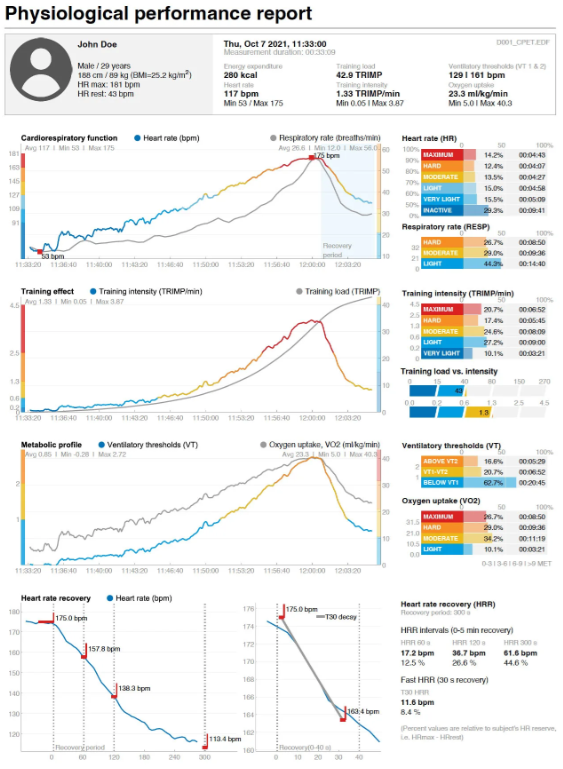

- Training data analysis results (PDF report and CSV export)
- ECG printout option for single-lead ECG signals (standard paper layout, PDF report)
- Analysis session backup (Matlab MAT export).
