[Raman Analyzer]Industrial Raman analyzer for in line and real time process control, Visum Raman In-Line™
RAMAN ANALYZER FOR REAL TIME MONITORING
Advanced analytical instrument that delivers rapid, precise quantitative and qualitative data on a broad range of substances and mixtures within seconds.

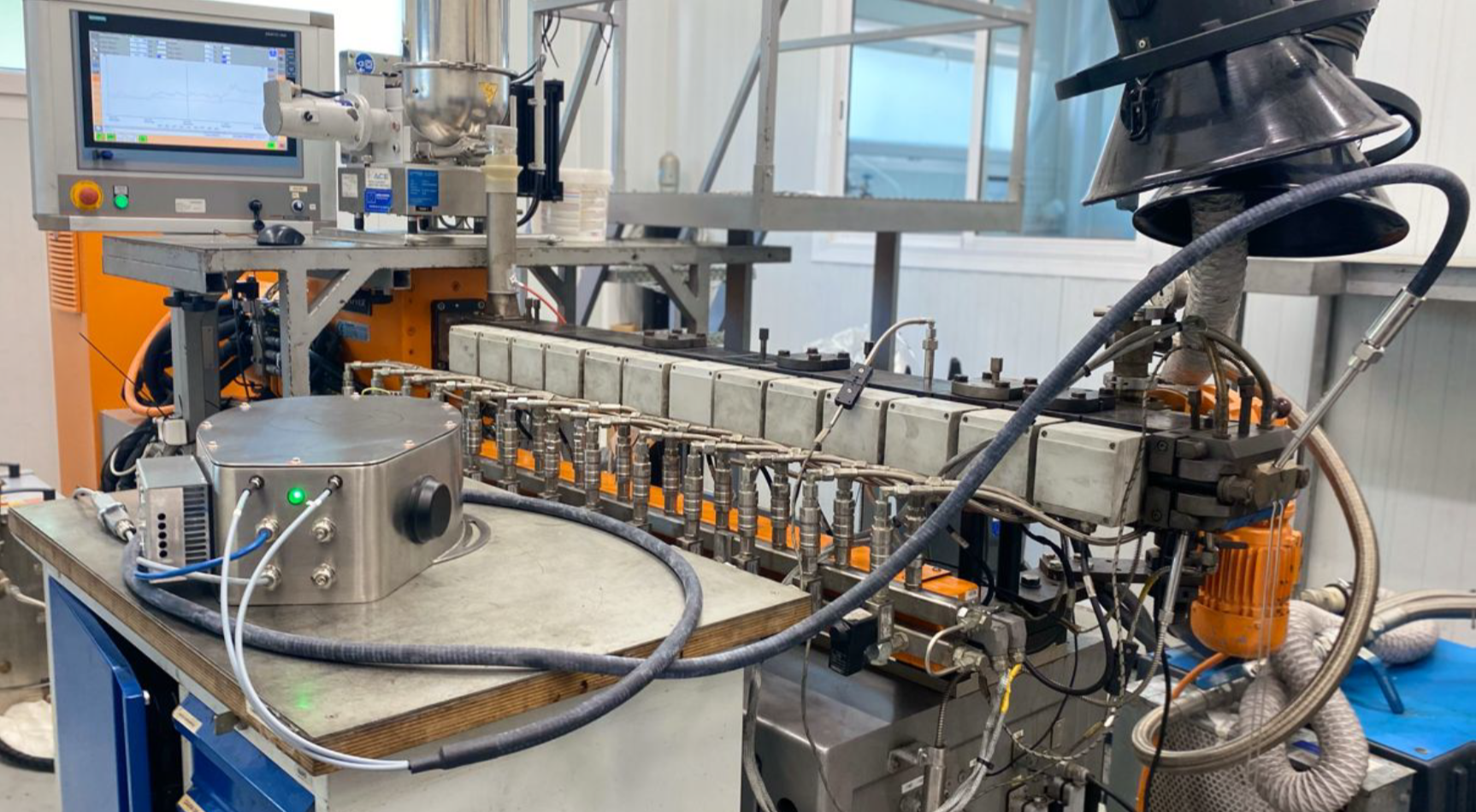

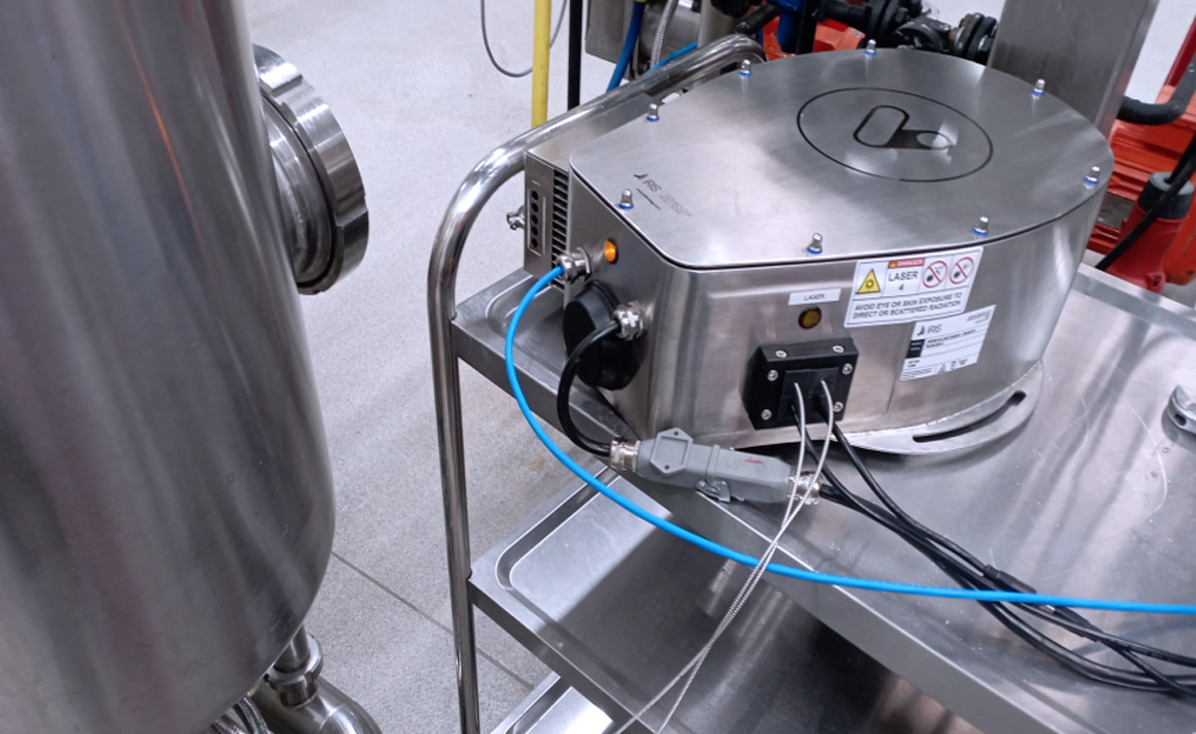

Specially designed for quantitative analysis in aqueous media, it utilizes an immersion probe adaptable to pipelines, tanks, and bioreactors for seamless integration into industrial processes.

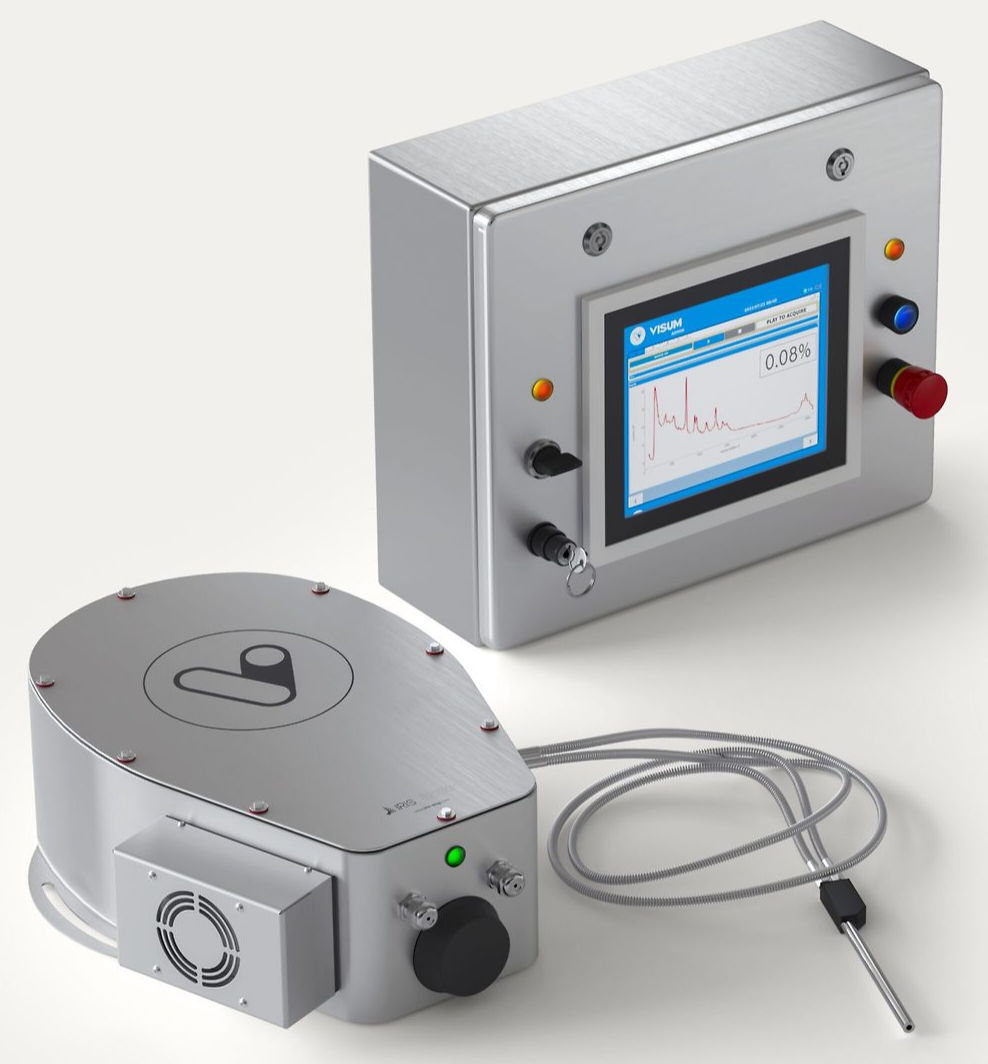

Comprises two primary modules

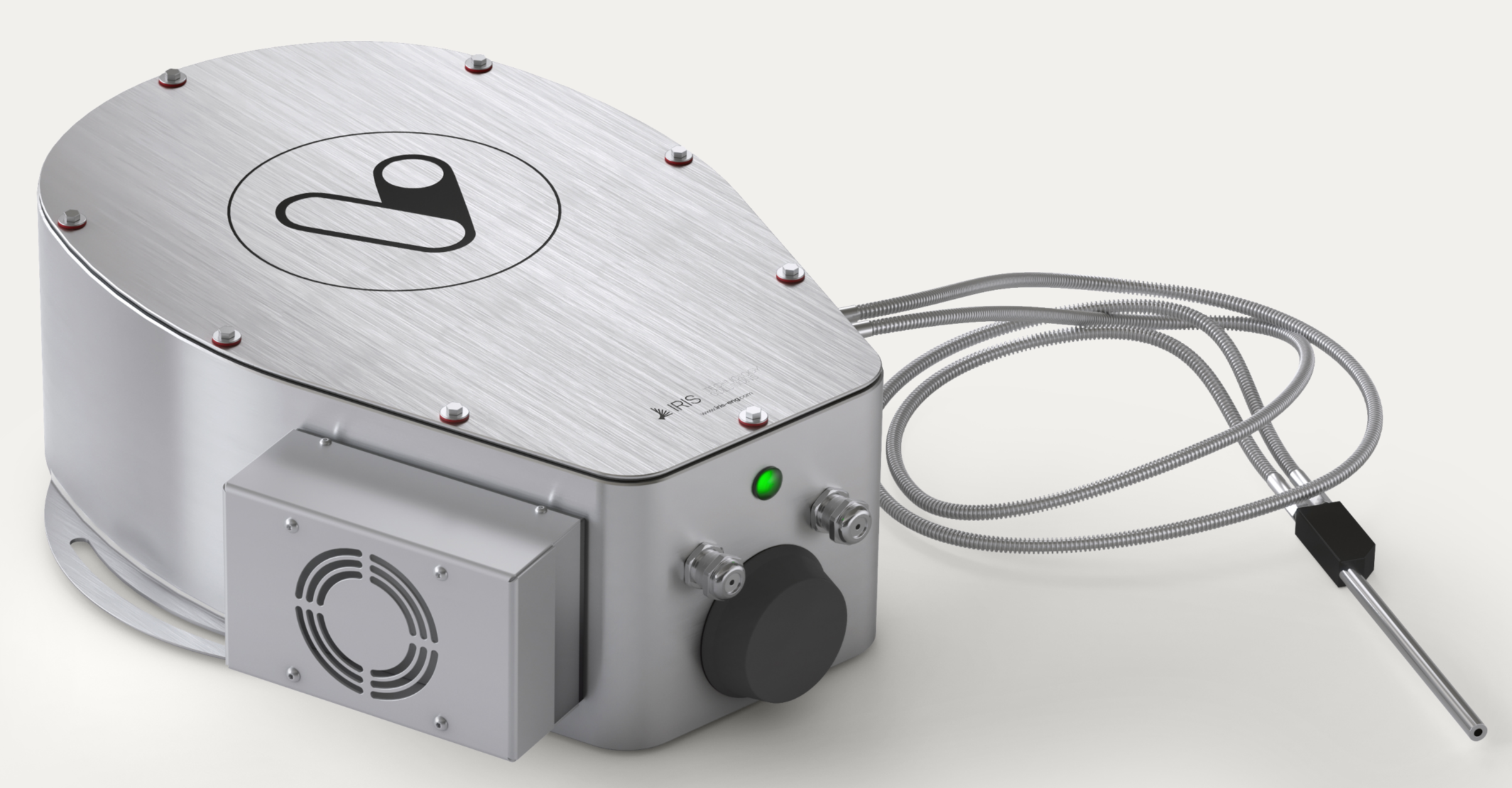

1. Central module (analyzer and immersion probe)
2. Control module (housing the electrical and safety components, along with a touch screen interface).
Equipped with a powerful 500 mW class 4 laser, it provides a stronger, clearer Raman signal than lower-power alternatives, making it particularly effective for monitoring process phases with varying absorptivity.
This ensures high-precision quantitative results with reduced acquisition and measurement times.
Operating at 785 nm, the Visum In-Line Raman Analyzer effectively mitigates fluorescence interference common in some industrial applications, enabling reliable and consistent measurements across complex matrices.
TURNKEY SOLUTIONS
Cutting edge Raman analyzer from IRIS Technology Solutions, renowned as an advanced and precise analytical tool for real-time process monitoring across various industries, including pharmaceuticals, petrochemicals, food, and biotechnology.
This device enables continuous control of critical process parameters, optimising production efficiency and quality through high-resolution, non-destructive measurements.
Notably, it complies with CFR 21 Part 11 regulations for use in GMP environment.
Main Features
1. Raman analyzer engineered for industrial processes and environments: Designed to meet the demands of continuous, in-line industrial monitoring.
2. Fully integrated Raman analyzer: Self contained system with no need for an external computer, streamlining deployment and operation.
3. Raman shift range: 150 to 3000 cm⁻¹ (794 nm to 1027 nm) for broad spectral analysis.
4. High spectral resolution: 11 cm⁻¹ (0.7 nm) precision, ensuring detailed and accurate measurements.
5. 785 nm laser excitation: Optimised wavelength to minimise fluorescence interference, enhancing data quality.
6. High-power class 4 laser (500 mW): Maximises Raman signal strength for precise analysis, with built-in safety measures.
7. Minimal warm-up time: Ready within 5 minutes, significantly faster than comparable devices.
8. Extended laser lifetime: 28,000 hours MTTF, ensuring reliable 24/7 operation for over 3 years.
9. Advanced sensor cooling: Maintains -40°C at 25°C ambient for stability in demanding conditions.
10. Versatile connectivity: Supports Ethernet, OPC, Modbus, Profinet, and more for seamless integration.
11. Rugged IP65~68 Protection: The Raman analyzer is fully protected against dust and water for dependable use in harsh environments.
12. Portable at-line version available: The Raman analyzer can be mounted on a mobile rack for flexibility across multiple processes or laboratory settings. Includes configurable and secure sample-holder module for Falcon vials.
Smart version software
Visum Mster SMART version software
AI supported Model Builder for developing, adjusting or updating predictive models for different recipes or formulations.

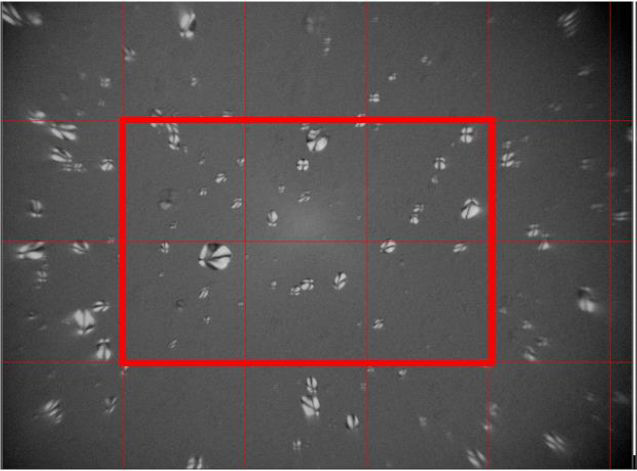

Starch granules under the polarised light microscope with the area marked in red for counting

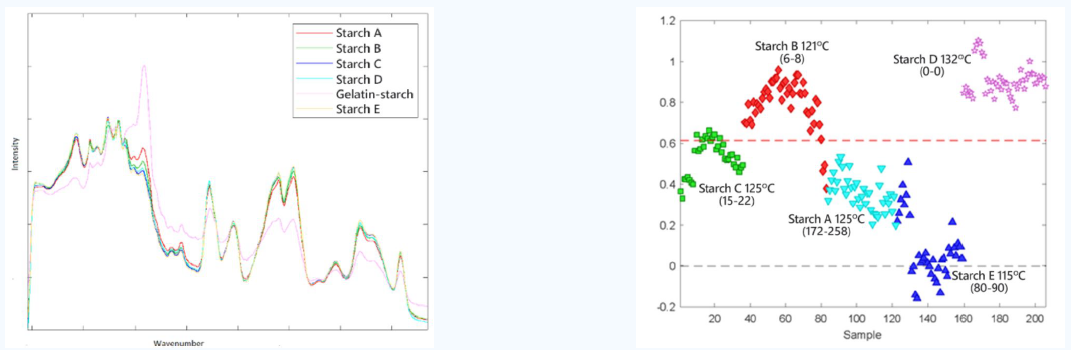

Left: Comparison of the average per processed Raman spectrum of the different recipes used.
Right: Classification resuts of the model for five of the recipes
#. The points of red dotted line corresponnd to measurements classified as qdequately cooked.
Application Sectors
1. Pharma and Biotech
- Real-time quantification of APIs and excipients.
- Quantification of ethanol in complex aqueous matrices.
- Quantification of CPC (Cetylpyridinium Chloride) in aqueous media.
- Quantification of Rapamycin in EtOAc (ethyl acetate).
- Characterisation of reactions.
- Monitoring of crystallisation processes.
- Quantifying chemical composition in aqueous media.
2. Other industries
- Monitoring of gelatinization in the cooking of gummies.
- Monitoring of chemical parameters in aqueous matrices for the food, beverage and other industries.
