[온도습도]스마트 디지털 온도 및 습도 모니터링 센서 적용 꿀 팁
온도센서 및 습도센서 선정할때 여간 고민이 되는게 아닙니다.
특히 정밀 센서를 찾아야 하는 상황에서는 어떤 선택을 해야 할까요?
연구소의 경우는 Certification 증서에대한 고민도 있으시죠?
정밀도는 우선 이정도면 가성비 면에서 최상이라고 추천드립니다.
무엇보다 멀티 적용이 가능하다는 사실!!
실험실, 병원, 제약, 농장, 식품, 산업 현장등 어디서나 적용이 가능하다는 사실에 완전 최고입니다!!
Disposable Temperature/Humidity Data Logger
| MODEL | IMAGE | SPECIFICATION |

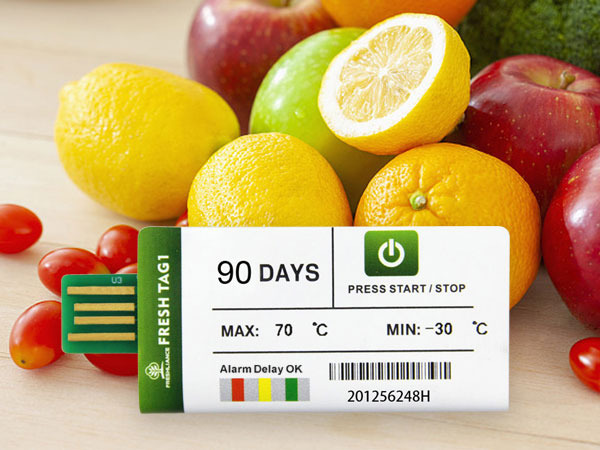

| Fresh Tag 1 USB Temperature Data Logger |  |
Fresh Tag 1 USB Temperature Data Logger 1. Shelf life 3 years 2. Up to 240 days of recording 3. Up to 129,600 readings 4. Automatic data export on PC via USB port, no software needed 5. Factory pre-programmed and pre-calibrated 6. Multiple options (7, 15, 30, 60, 90, 120, 180, 240 days available) 7. Compatible with Windows and Mac OS alike |

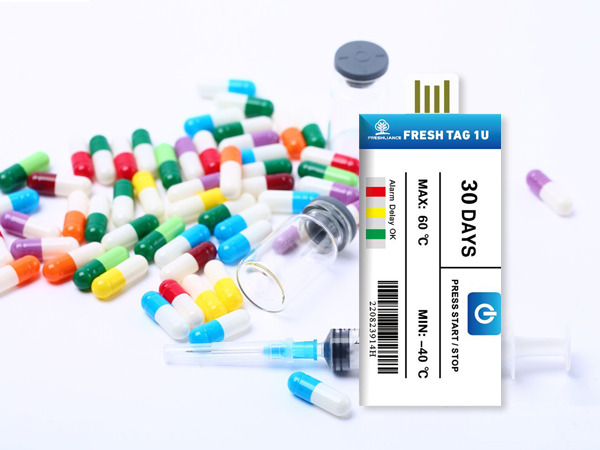

| Fresh Tag 1U Temperature Data Logger |  |
Fresh Tag 1U Temperature Data Logger 1. Shelf life 3 years 2. Max. 240 working days 3. -40℃ low temperature usable 4. Max. 129600 readings 5. No software needed to generate reports automatically 6. Parameters customizable 7.Compatible with Windows and Mac OS alike |

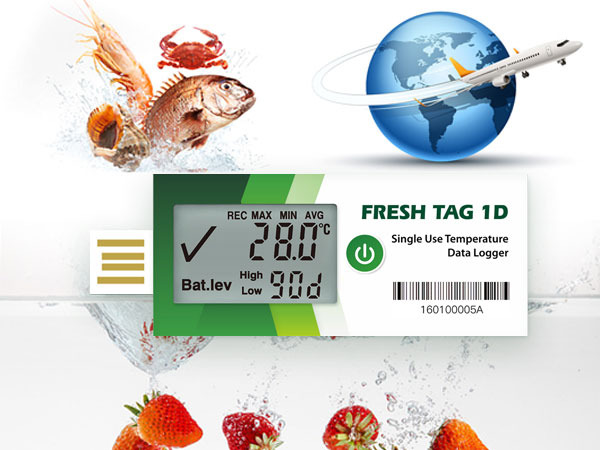

| Fresh Tag 1D Temperature Data Logger |  |
Fresh Tag 1D Temperature Data Logger 1. Shelf life of 2 years 2. ±0.5℃ over the measurement range of -30℃~+70℃ 3. Intuitive LCD display 4. 65,000 readings Max. capacity 5. Working days up to 240 days 6. Parameters customizable 7. Automatic PDF/CSV reports 8. DGM report and calibration certificate optional 9. Compatible with Windows and Mac OS alike 10. Display remaining power, professionally certified |

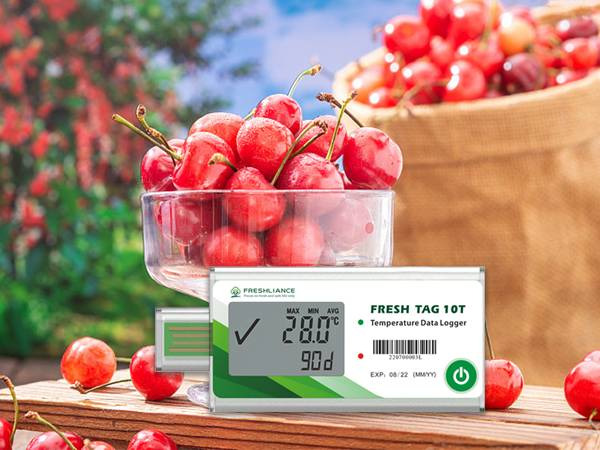

| Fresh Tag 10T Single Use Temperature Data Logger |  |
Fresh Tag 10T Single Use Temperature Data Logger 1. Parameters Configurable 2. Max. 65,000 readings 3. Max. 120 working days 4. LCD display & LED indication 5. Up to 6 alarm points and 9 marks 6. Encrypted PDF/CSV report automatically generated on PC 7. Temporary report available |

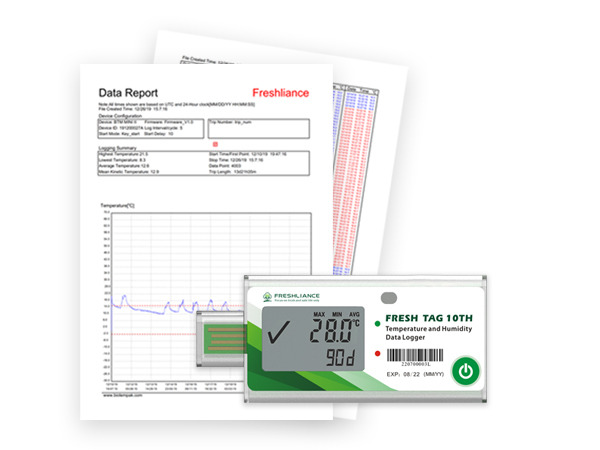

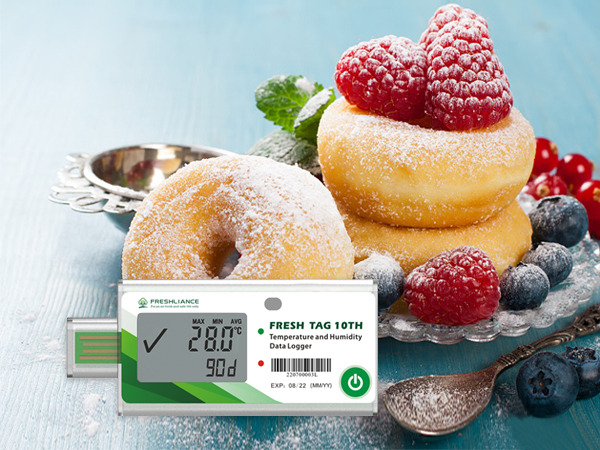

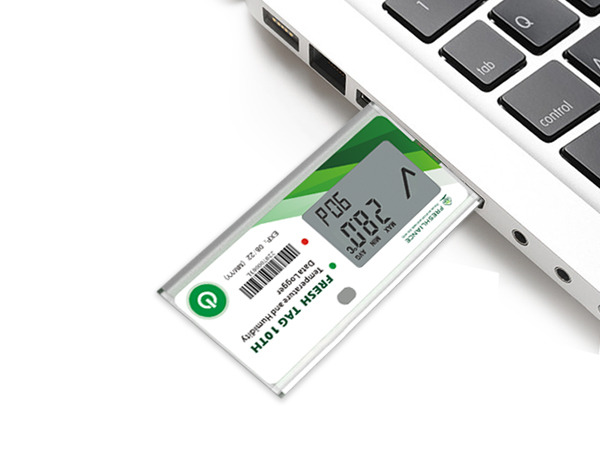

| Fresh Tag 10TH Temperature and Humidity Data Logger |  |
Fresh Tag 10TH Temperature and Humidity Data Logger 1. Parameters Configurable 2. Max. 65,000 readings 3. Max. 120 working days 4. LCD display & LED Alarm for abnormal status 5. Up to 6 alarm points and 9 marks 6. Encrypted PDF/CSV report automatically generated on PC 7. Temporary report available |

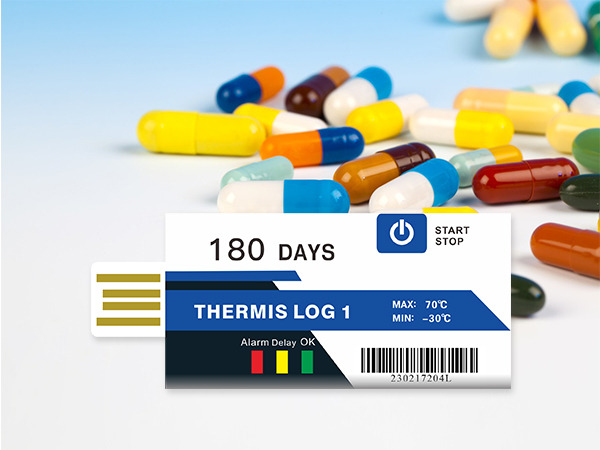

| Thermis Log 1 Temperature Recorder |  |
Thermis Log 1 Temperature Recorder 1. Shelf life of 3 years 2. ±0.3℃ at full range (-30℃ to +70℃) for Pharmaceuticals & Biology Product 3. Automatic generation of PDF/CSV reports 4. NIST traceable calibration certificate 5.Pre-programmed parameters for easy operation 6. Multiple options (7, 15, 30, 60 , 90, 120 or 180 days available) 7. Unique measuring solution based on sensor made in Japan |

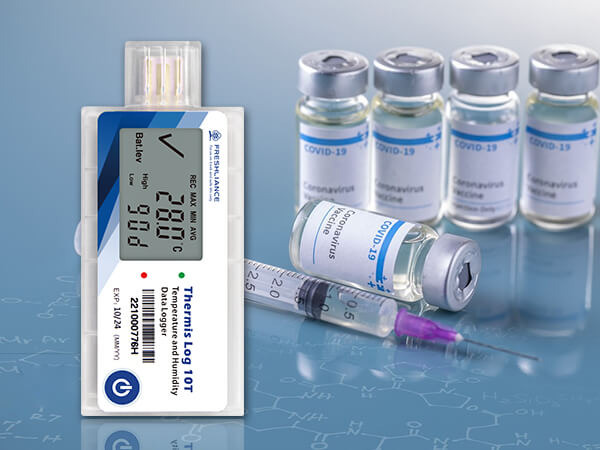

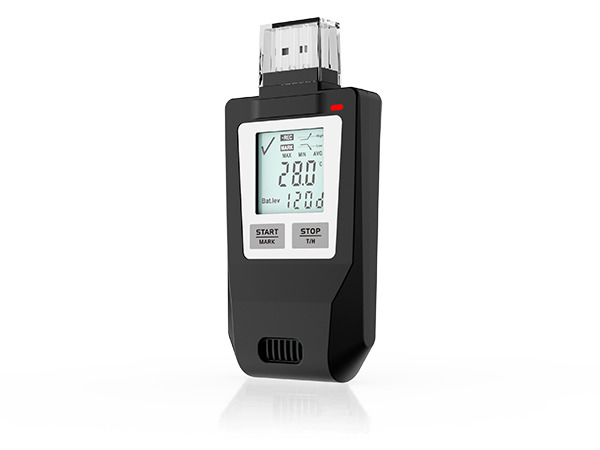

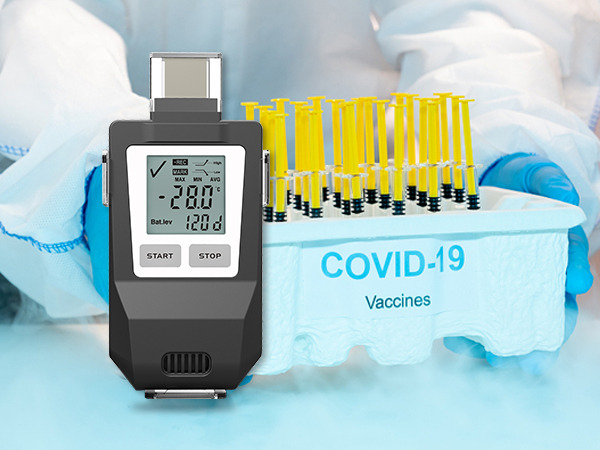

| Thermis Log 10T Single Use USB Temperature Data Loggers |  |
Thermis Log 10T Single Use USB Temperature Data Loggers 1. ±0.3℃ at full range (-30℃ to +70℃) for pharmaceuticals 2. Parameters configurable 3. Automatic report generation on PC (temporary report available) 4. Built-in certificate verification 5. IP65 Professional protection grade 6. Compatible with Windows and Mac OS alike 7. Up to 6 alarm points and 9 marks |

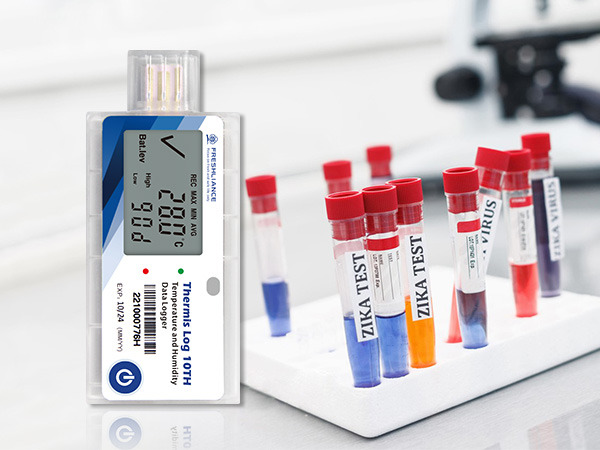

| Thermis Log 10TH USB Temperature Humidity Data Loggers |  |
Thermis Log 10TH USB Temperature Humidity Data Loggers 1. ±0.3℃ and ±3%RH High accuracy for pharmaceuticals 2. Parameters configurable 3. Temporary temperature, Mark available 4. Built-in calibration verification 5. IP65 Professional protection grade 6. Compatible with Windows and Mac OS alike |

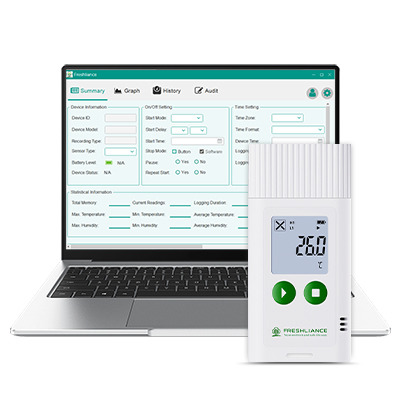

측정결과는 Desktop 전용 프로그램에서 확인할수 있습니다. 프로그램에 워낙 간편하고 심플하게 만들어서 아주 쉽게 사용할 수 있습니다.
Multi Use Temperature/Humidity Data Logger
| MODEL | IMAGE | SPECIFICATION |
| Tagplus-T Temperature Data Loggers |  |
Tagplus-T Temperature Data Loggers 1. Multi-use, configurable parameters 2. Temporary reports available 3. Up to 9 event Marks, Up to 6 alarm points 4. Battery life up to 180 days, replaceable batteries 5. ±0.5°C high accuracy 6. Compatible with Windows and Mac OS alike 7. 35,000 readings maximum memory capacity 8. FDA CFR21 certified |
| TagPlus-TH Temperature Humidity Data loggers |  |
TagPlus-TH Temperature Humidity Data loggers 1. Multi-use, configurable parameters 2. Temporary reports available 3. Up to 9 event Marks 4. Up to 6 alarm points 5. Battery life up to 180 days, replaceable battery 6. ±0.5℃ at full range (-30℃ to +70℃) 7. Compatible with Windows and Mac OS alike 8. 35,000 readings maximum memory capacity 9. FDA CFR21 certified |

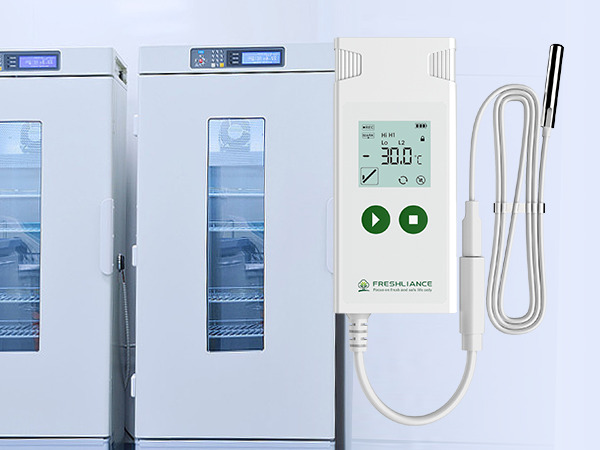

| Atlas Log-30 Temperature Data Logger |  |
Atlas Log-30 Temperature Data Logger 1. Suitable for food, vaccines 2. Single use/Multi use, parameters configurable 3. Flexible ultra thin cable 4. Up to 6 alarm points 5. Mark and pause function 6. Temporary reports 7. Battery replaceable 8. Buffered temperature probe |

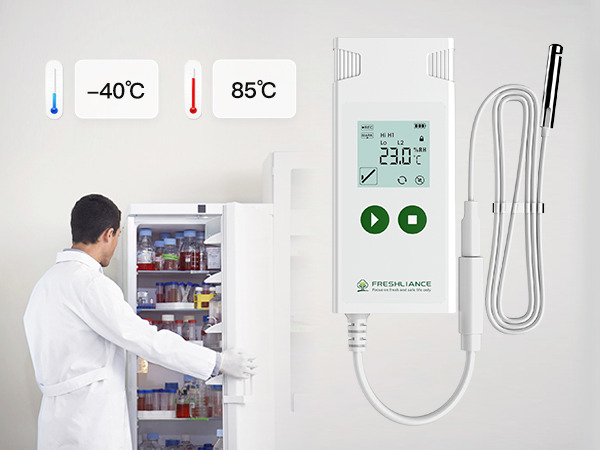

| Atlas Log-TH Temperature Humidity Data Logger |  |
Atlas Log-TH Temperature Humidity Data Logger 1. Temperature range: -40℃~+85℃ 2. Humidity accuracy: ±3％RH 3. Suitable for food, vaccines 4. Single use/multi use, parameters configurable 5. Flexible ultra thin cable 6. Up to 6 alarm points 7. Mark and pause function 8. Temporary reports 9.Battery replaceable |
| Fresh Keeper-1 999 Days Temperature Humidity Data Logger |  |
Fresh Keeper-1 999 Days Temperature Humidity Data Logger 1. Up to 999 working days 2. ±0.5℃ over full range of -30℃~+70℃ 3. Max. 35,000 readings 4. Reusable 5. Parameters configurable 6. Temporary report available 7. Mark function |

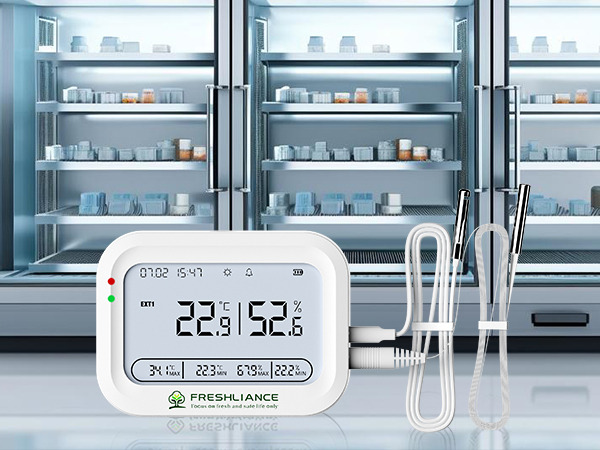

| Coeus -TH Coeus – TT Coeus Industrial Thermometer |  |
Coeus -TH Coeus – TT Coeus Industrial Thermometer 1. Internal SHT20 or external sensor 2. -20℃~50℃ or -45℃~105℃(external type) 3. Accuracy: ±0.5℃(full range), ±0.3℃（25℃） 4. Resolution : 0.1℃ 5. 0~100%RH 6. No software application |

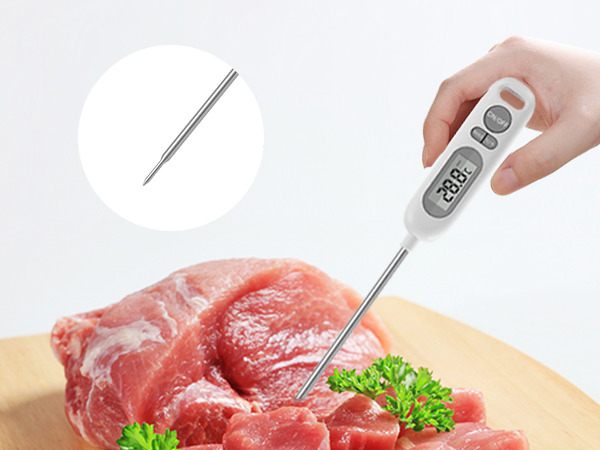

| Waterproof Food Thermometer |  |
Waterproof Food Thermometer 1. Waterproof, solid and durable 2. Backlight 3. ℃/℉ display 4. 10-min auto-off 5. Probe of food-grade stainless steel 6. Magnetic suction installation 7. Instant reading 8. Lock value 9. Temperature range: -50℃~+300℃ 10. No software application |
측정결과는 Desktop 전용 프로그램에서 확인할수 있습니다. 프로그램에 워낙 간편하고 심플하게 만들어서 아주 쉽게 사용할 수 있습니다.
Wireless Temperature Humidity Data Logger
| MODEL | IMAGE | SPECIFICATION |
| Fresh Tracker 10 |  |
Fresh Tracker 10 1. 4G Real time monitoring for temperature, humidity, location, light and vibration 2. APP and PC platform for real-time data tracking and processing 3. Real time positioning on the E-map 4. Notifications via LED indicator, Email, and SMS 5. Airplane mode 6. USB port for device charging and local report generation 7. Buffered temperature probe |

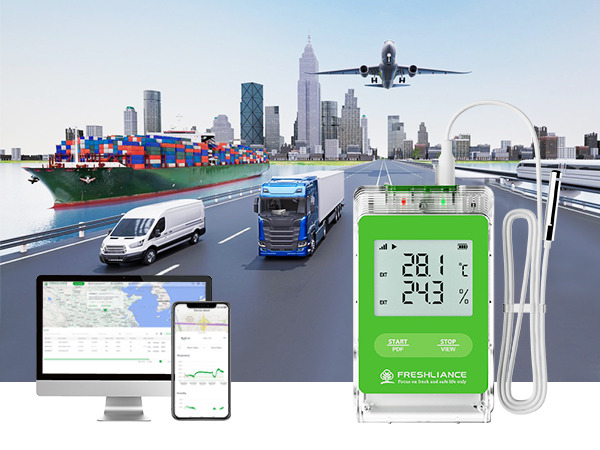

| COEUS-WIFI/4G Wireless Temperature and Humidity Data Logger |  |
COEUS-WIFI/4G Wireless Temperature and Humidity Data Logger 1. WiFi/4G connection for remote device configuration and data transfer 2. Computer platform and App for real-time data tracking, analysis and processing 3. Remote SMS/emails/APP push alert, and local alarm via LED indicators and a buzzer 4. Offline data re-uploading after network recovery, ensuring data reliability and integrity 5. Up to two external probes optional for ultra-low temperature monitoring, -90℃ 6. Large-capacity rechargeable battery for nonstop recording |

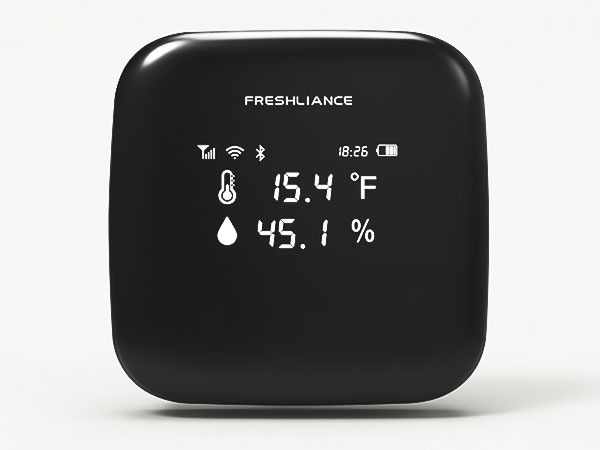

| Gateway Real-time Temperature and Humidity Monitoring |  |
Gateway Real-time Temperature and Humidity Monitoring 1. 24/7 automated data monitoring and transfer to Freshliance cloud 2. Data review and management via the APP or web platform 3. Comprehensive data analysis, filtration and graphing 4. Email, SMS, and APP Push alert 5. Persistent caching during offline mode and data re-upload after network recovery 6. Report data details to minutes or shorter 7.Report of extreme values |

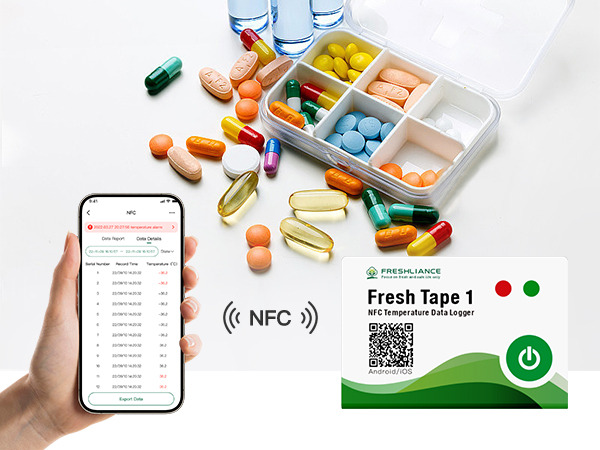

| Fresh Tape 1 Single-use NFC Temperature Data Logger |  |

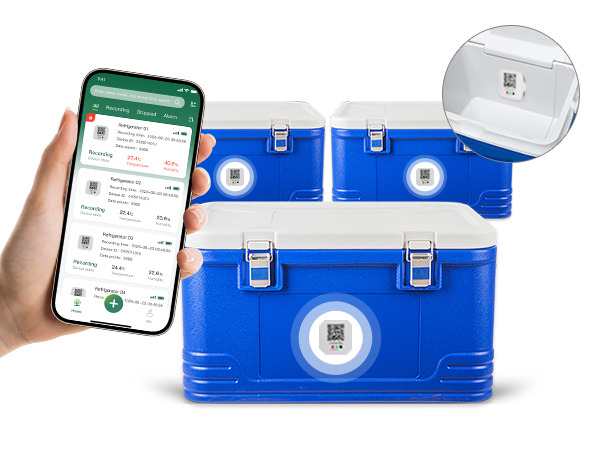

Fresh Tape 1 Single-use NFC Temperature Data Logger 1. Wireless configuration and data acquisition via NFC interface (Near Field Communication) 2. Comprehensive data graphing, analysis and filtration via APP 3. Data alarm via APP and LED indicators of the device 4. Free APP for Android/iOS smartphones 5. Verified quality, IATA requirements complied 6.Temperature range: -30℃~+70℃ |
| Fresh Tag 1 NFC Temperature Logger |  |
Fresh Tag 1 NFC Temperature Logger 1. Near field reading of data via mobile phone, no need to unpack 2. Export data report in PDF or CSV format via mobile APP 3. Upload data to cloud platform, convenient for online query and analysis 4. Read data via NFC mobile phone in case logger is power off 5. Max. 129600 readings memory capacity 6. Low consumption for Max. 180 working days 7. Parameters customizable 8. Data and reports can be read via both NFC and USB 9. Compatible with Windows and Mac OS |

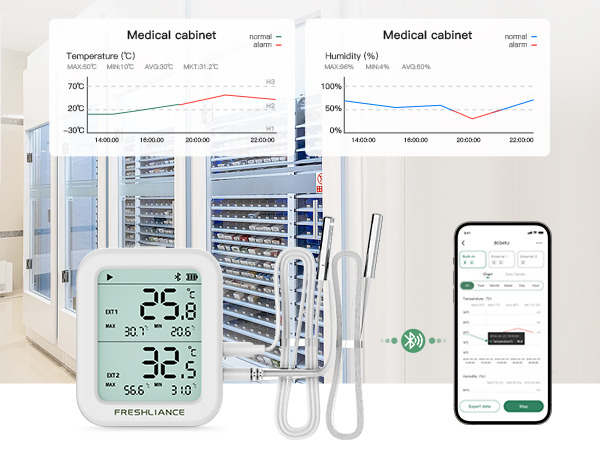

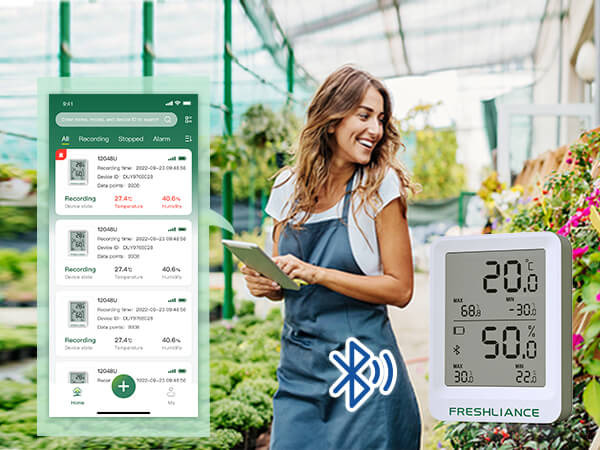

| BlueTag T100/TH100 Bluetooth Temperature and Humidity Data Logger |  |
BlueTag T100/TH100 Bluetooth Temperature and Humidity Data Logger 1. Paired by Bluetooth and data review by Multilingual APP 2. Online data synchronization and sharing among multiple users 3. Comprehensive data graphing, analysis, and processing 4. Report data details to minutes or shorter 5. Electronic signature and email option for data reports 6. Location information |

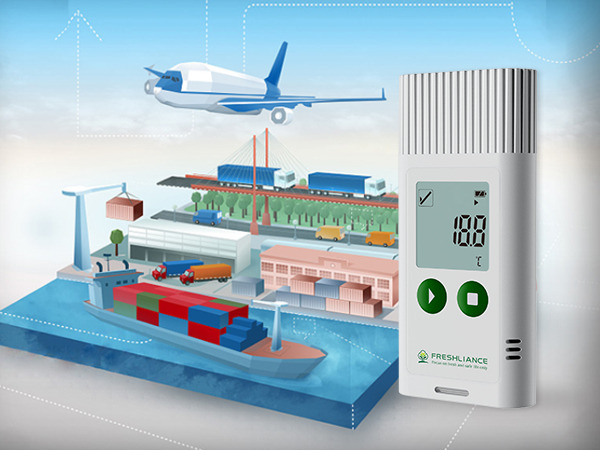

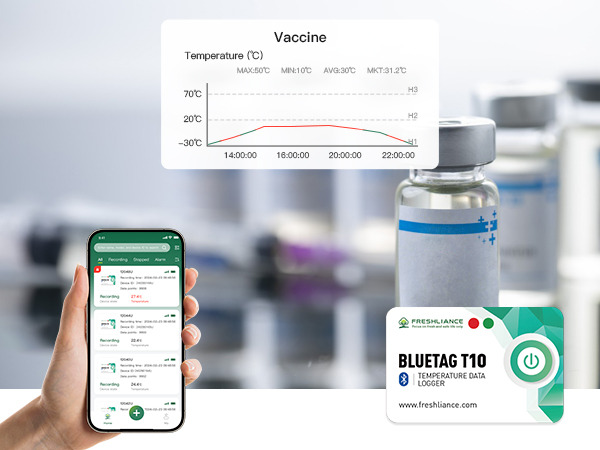

| BlueTag T10 Bluetooth Temperature Data Logger |  |
BlueTag T10 Bluetooth Temperature Data Logger 1. For cold chain logistics and transportation 2. Paired by Bluetooth and review history by APP 3. Comprehensive data analysis, filtration and graphing 4. Data synchronization among multiple users 5. Multilingual app 6. Free data details to minutes or shorter 7. Location information |
| BlueTag TH20 Bluetooth Temperature and Humidity Data Logger |  |
BlueTag TH20 Bluetooth Temperature and Humidity Data Logger 1. Paired by Bluetooth and review history by APP 2. Comprehensive data analysis, filtration and graphing 3. Data synchronization among multiple users 4. Multilingual app 5. Report data details to minutes or shorter 6. Location information 7. Battery replaceable |
| BlueTag TH10 Bluetooth Temperature Humidity Data Logger |  |
BlueTag TH10 Bluetooth Temperature Humidity Data Logger 1. Paired by Bluetooth and review history by APP 2. Comprehensive data analysis, filtration and graphing 3. Data synchronization among multiple users 4. Report data details to minutes or shorter 5. Location information 6. Up to three monitoring channels (External probes optional) 7. Flexible ultra thin cable 8. Buffered temperature probe |
| BlueTag TH30 Bluetooth Temperature Humidity Data Logger |  |
BlueTag TH30 Bluetooth Temperature Humidity Data Logger 1. Paired by Bluetooth and review history by APP 2. Data synchronization among multiple users. 3. Comprehensive data analysis, filtration and graphing 4. Report data details to minute or shorter 5. Location information 6. Up to three monitoring channels (External probes optional) 7. Flexible ultra thin cable optional 8. Buffered temperature probe |

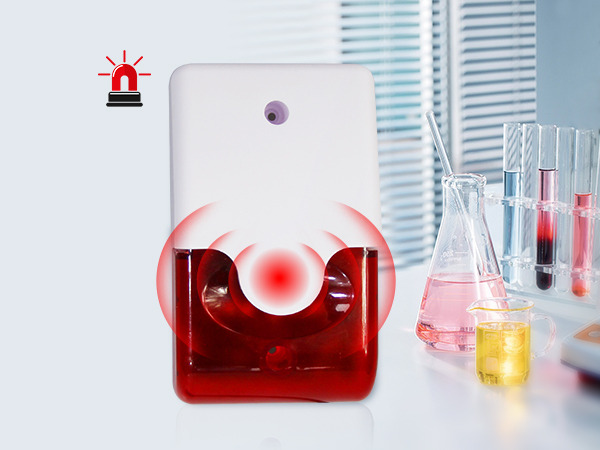

| BlueTag A100 Bluetooth Audible and Visual Alarm |  |
BlueTag A100 Bluetooth Audible and Visual Alarm 1. Power-and-go, no device pairing and programming required 2. Ongoing signal detection 3. Immediate sound and light alarm 4. Mute button available 5. Heat and cold-resistant case for stable performance 6. Easy to install, with 3M adhesive tape or two screws |
Gateway Real-time Temperature and Humidity Monitoring 의 강력한 기능을 한번 보겠습니다.
현재는 아래 2가지 모델만 내부 게이트웨이 망에 연결할 수 있다고하네요. 지속 모델 업데이트는 된다고합니다.
1. BlueTag TH10 Bluetooth Temperature Humidity Data Logger
2. BlueTag TH30 Bluetooth Temperature Humidity Data Logger

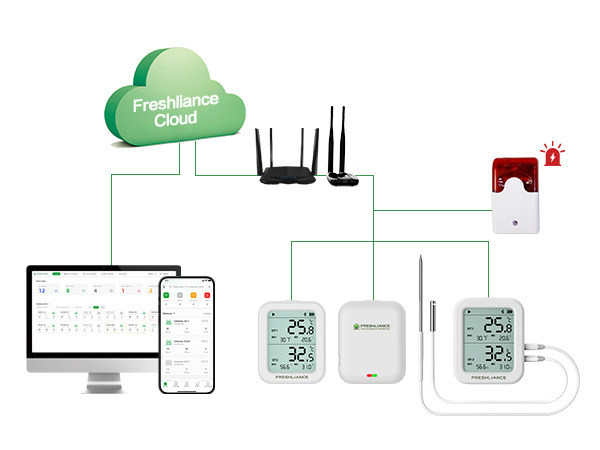

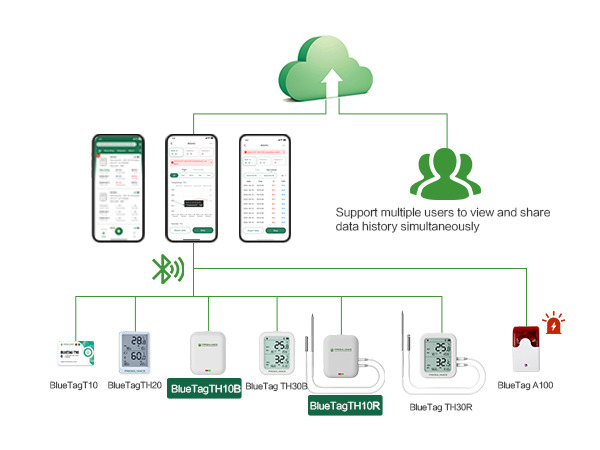

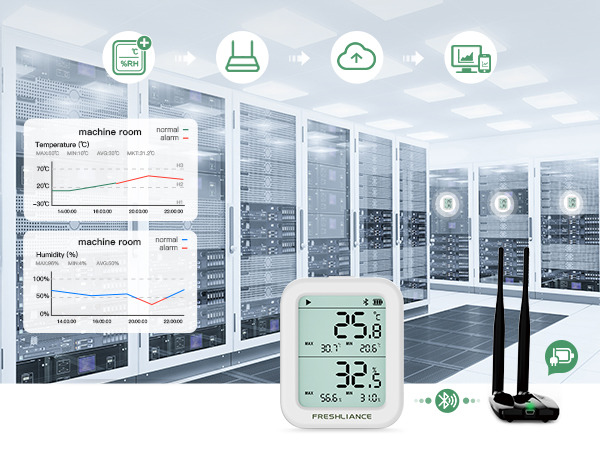

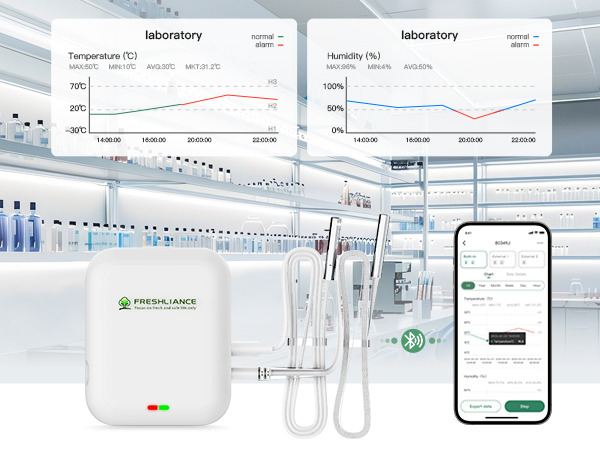

아래 그림 보시면 인터넷 연결방식과 비슷하게 연구실 및 실험실 내부에서 무선 클라우드 커넥션을 연결할 수 있습니다.
그러면 실시간으로 온도 및 습도 데이터를 모니터링 할 수 있다는것입니다.

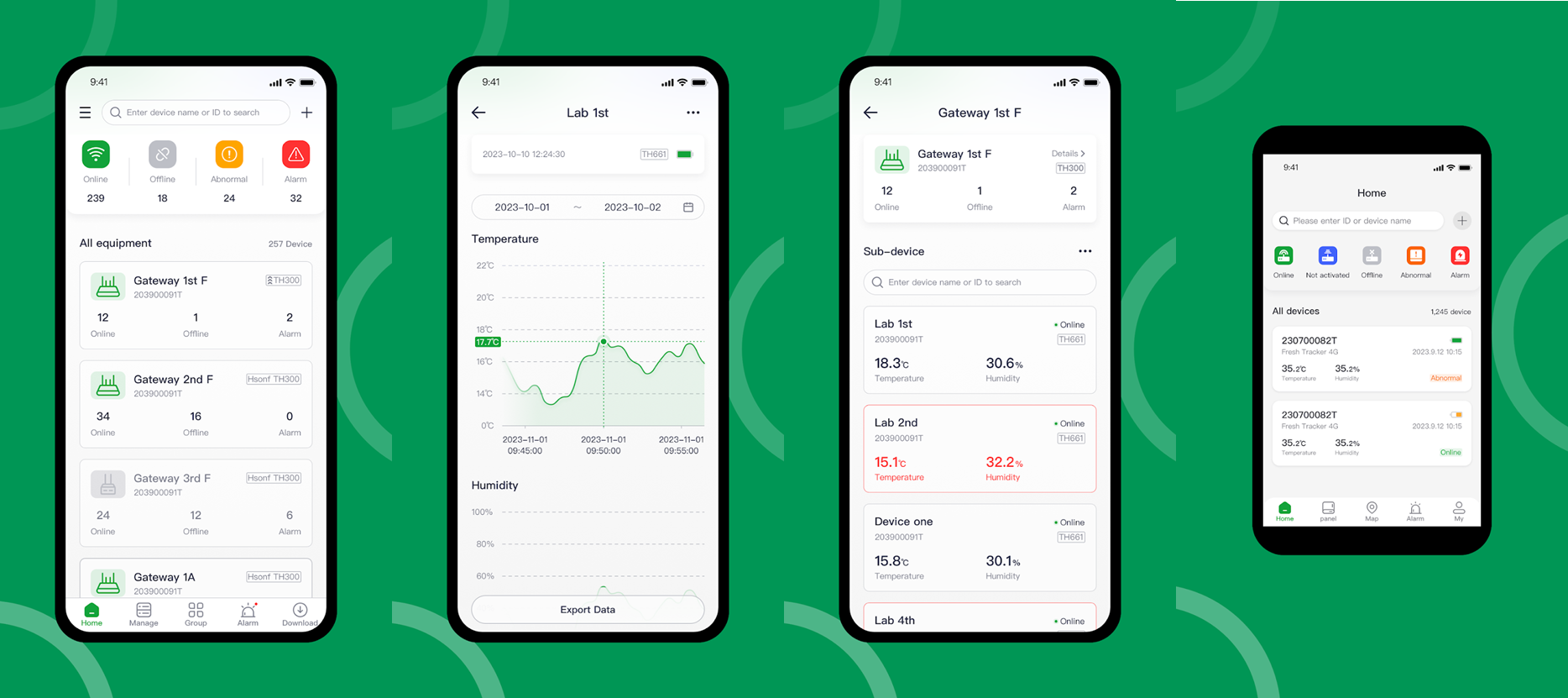

FreshLink 전용 App을 사용해서 접속하면 아래와 같이 실시간 모니터링이 가능합니다.
측정결과는 블루투스 기반으로 실시간 모니터링이 가능합니다.
PDF 파일로도 좌~악 출력해서 시간대별로 정밀하게 변화 데이터를 객관적으로 비교 할수 있습니다.
Excel 파일로도 변환이 가능해서 실험실 및 연구자 분들에게는 완전 최고의 솔루션이라고 생각되요 !!
Ultra High/Low Temperature Data Logger
| MODEL | IMAGE | SPECIFICATION |
| Fresh Keeper-IUT -90℃ Dry Ice Temperature Data Logger |  |
Fresh Keeper-IUT -90℃ Dry Ice Temperature Data Logger 1. Specially designed for dry ice storage and transportation 2. High accuracy ±0.5℃ over the full range of -90℃~+70℃ 3. 35,000 readings maximum memory capacity 4. Disposable/reusable, user configurable 5. Pause and mark function 6. Temporary report 7. LED indicator light optional 8. Be directly placed into a dry ice environment in contact with products |

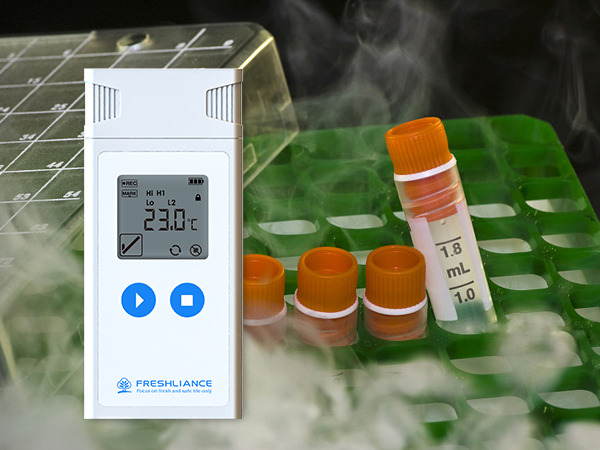

| Atlas Log-IUT Ultra Low Temperature Data Logger |  |
Atlas Log-IUT Ultra Low Temperature Data Logger 1. Temperature range: -80℃~+70℃, Suitable for dry ice freezing, vaccines 2. Single use/Multi use, parameters configurable 3. User selectable and customizable temperature range 4. Up to 6 alarm points 5. Mark and pause function 6. Temporary reports 7. Automatic generation of encrypted reports |

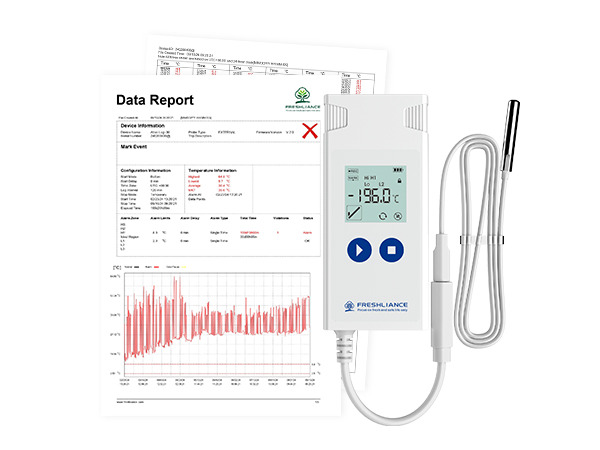

| Atlas Log Multi-use Ultra Low Temperature Data Logger |  |
Atlas Log Multi-use Ultra Low Temperature Data Logger 1. Suitable for ultra-low/high temperature logging 2. Single use/Multi use, parameters configurable 3. Multiple temperature ranges: -60℃~+200℃/-90℃~+200℃/-196℃~+200℃ 4. Up to 6 alarm points 5. Mark and pause function 6. Temporary reports 7. Pluggable external probe 8. Flexible ultra thin cable |

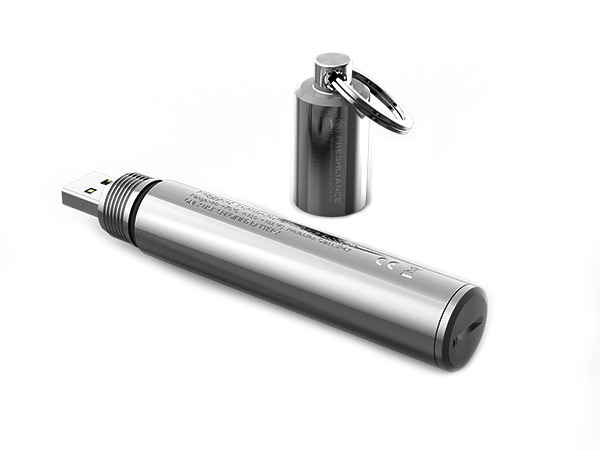

| Iron Tag Rugged Temperature Data Logger (-90℃~+150℃) |  |
Iron Tag Rugged Temperature Data Logger (-90℃~+150℃) 1. Multi use, submersible, suitable for autoclave, etc. 2. Configurable parameters 3. Multiple temperature ranges available: -90℃～+60℃ / -40℃～+125℃ / -50℃～+150℃ 4. ±0.5℃, high accuracy 5. S316 stainless steel case, safe and reliable 6. Temporary report available 7. Replaceable battery |
제품에 대한 자세한 설명이 필요하신 분들은 아래로 문의 해보세요.
자세한 자료도 보내주셔서 모델 선정에 아주 많은 도움이 되었습니다~^^
