Ultimate Photometer

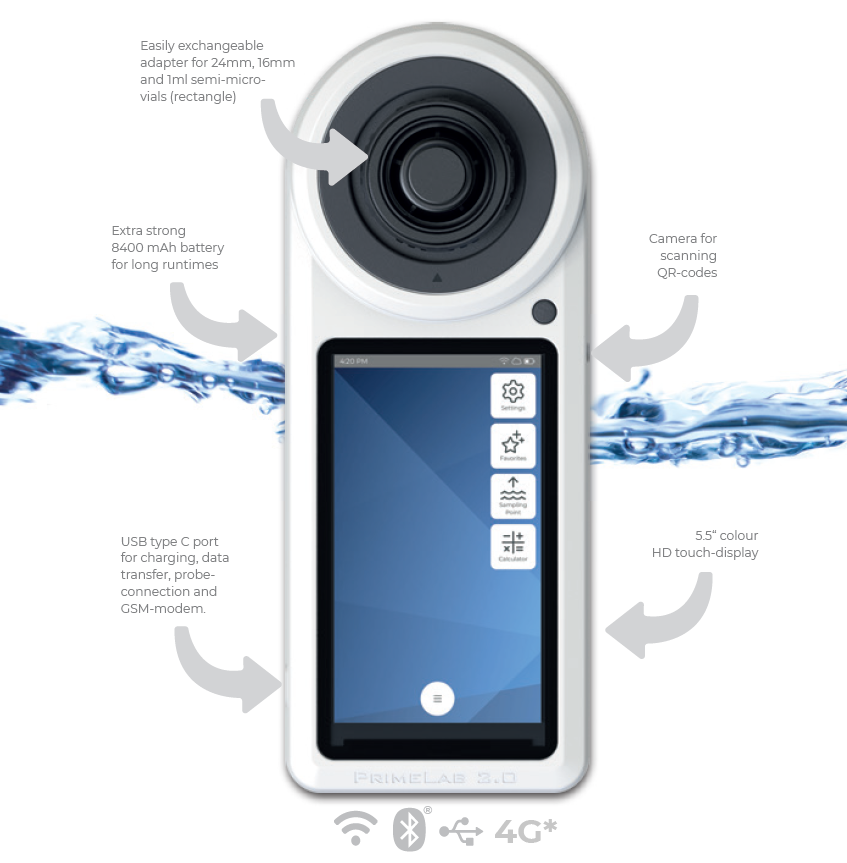

High-precision readings due to 18 parallel wavelengths, WiFi–USB–Bluetooth®–GSM connection, powerful software and app, synchronised via a free cloud service, large HD touch display and the possibility to connect electrodes are just some of the features.
While conventional photometers only perform tests at selected wavelengths, the Primelab can also receive data from 18 different wavelengths in parallel and thus covers the most important parts of the UV and IR range as well as the entire VIS range.
Corresponding LEDs are positioned at both 180° and 90° to also allow NTU turbidity, PTSA and fluorescein measurements. Very narrow peaks between 390 and 950 nm enable the most accurate readings, close to the performance of a spectrophotometer.
The highly professional PrimeLab 2.0 firmware interpolates between the different wavelengths, while some parameter curves are set to use multiple wavelengths to obtain the most accurate test results. For each individual parameter method, there are step-by-step instructions in many different languages, as well as useful animations and links to user videos to ensure that the correct and proper procedure is followed.
With its built-in camera, the PrimeLab 2.0 offers the ability to scan QR-codes to identify sampling points set up by the user and to identify reagents with QR-code on the packaging.
Over time, water analysis has become much more than just a test. Real-time availability of reliable test results and data management are as important as the test results themselves.

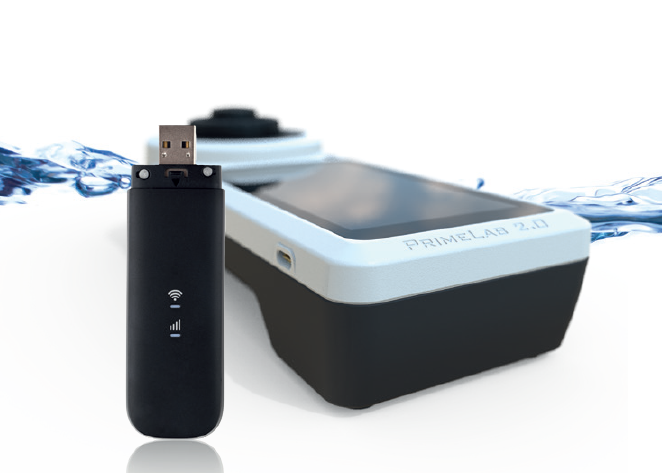

The PrimeLab2.0 is the ultimate in connectivity! With WiFi–USB–GSM(via USB modem) there are several ways to connect the PrimeLab2.0 to a smartphone, tablet, computer or directly to the LabCOM® cloud.
Wherever the tests are carried out, whether it is in the lab, on site or on a ship, inside a cooling tower in fact anywhere the data can be transferred easily and automatically.

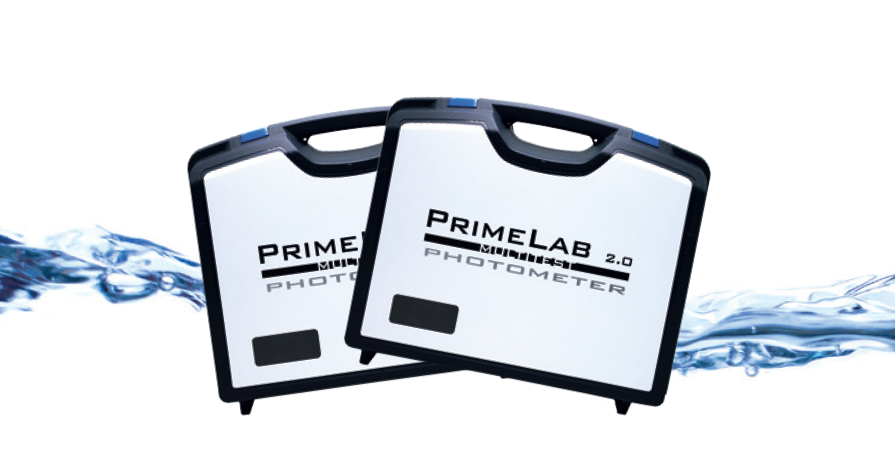

Simple KITS Accessories box
Very easy application

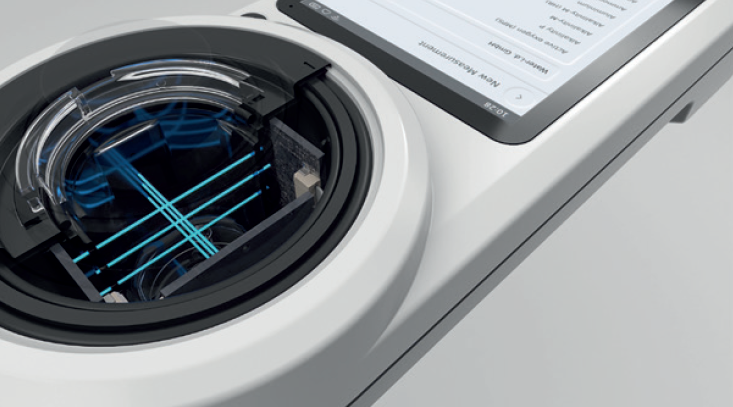

18 Wavelength Sensor Technology
Receive data from 18 different wavelengths, covering the key parts of UV and IR section of the spectrum and the full VIS range.
Three sensors, each with six wavelengths, are interconnected together. To enable NTU-Turbidity, Fluorescein and PTSA measurements, corresponding LEDs are set up at an angle of 180° as well as 90°.
Very narrow peaks between 390 and 950 nm allow utmost accurate readings, similar to the performance of a spectrophotometer.
Interpolate between the different wavelength readings, while some of the parameter curves are set to use multiple wavelengths to obtain the most accurate test results.
18 wavelengths throughout the UV - VIS - IR range are covered by sensors used by the PrimeLab 2.0. Narrow peaks on the spectral curve allow utmost accuracy.

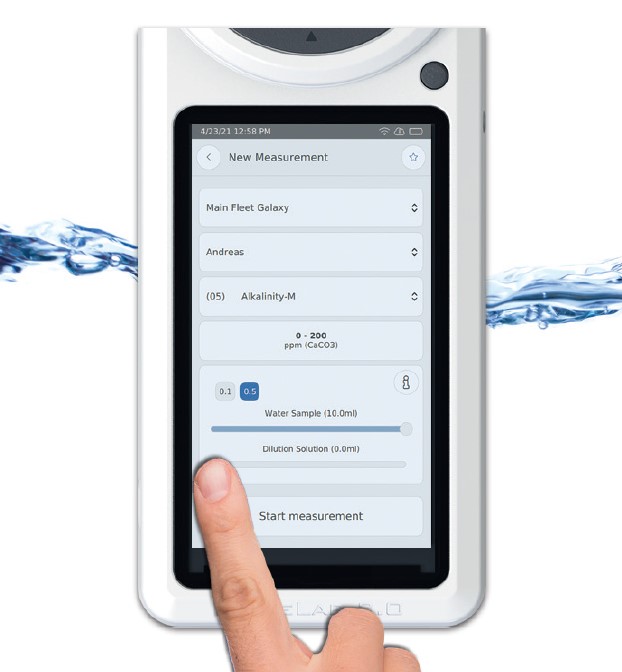

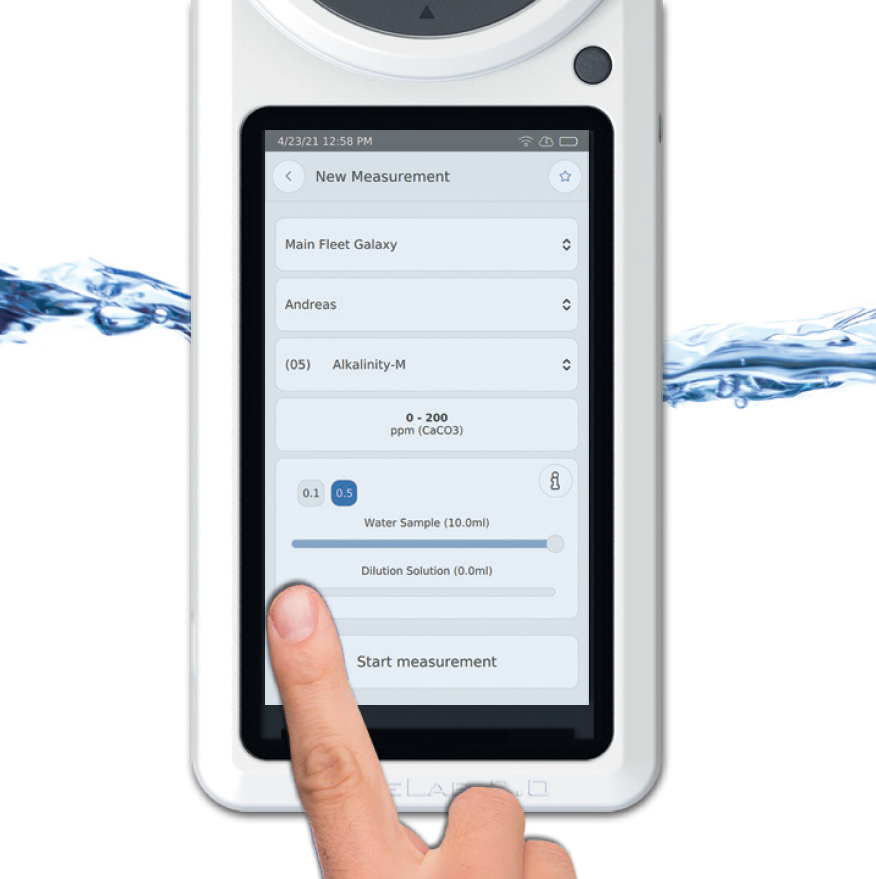

5.5 Color-HD Touch Display
The PrimeLab2.0 features a state-of-the-art 5.5" colour HD touch display.

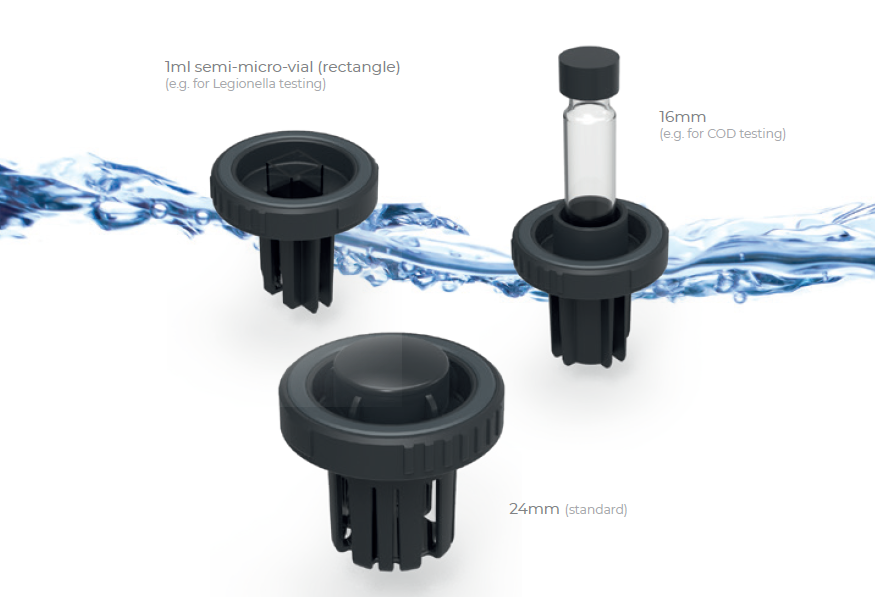

Adapters for dirrerent vials
The PrimeLab2.0 uses 24mm glass vials, 16mm glass vials and 1ml semi-micro-vials (rectangle).

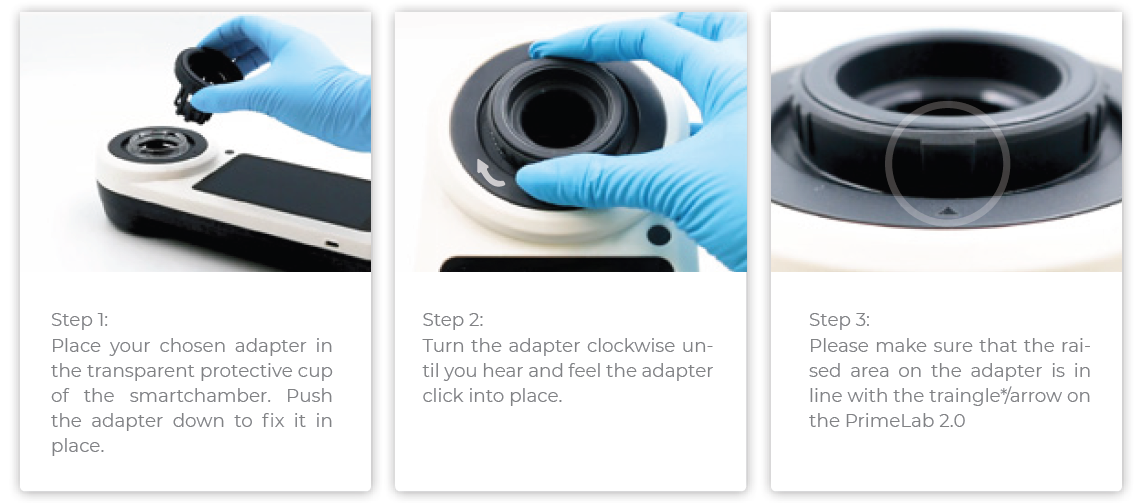

The vial adapter can easily be changed and replaced with a simple, built in, bayonet lock. The same procedure is used for fitting and replacing each adapter (step 1 – 3).
Connecting Primelab2.0
Wifi, USB 4G, Bluetooth connection

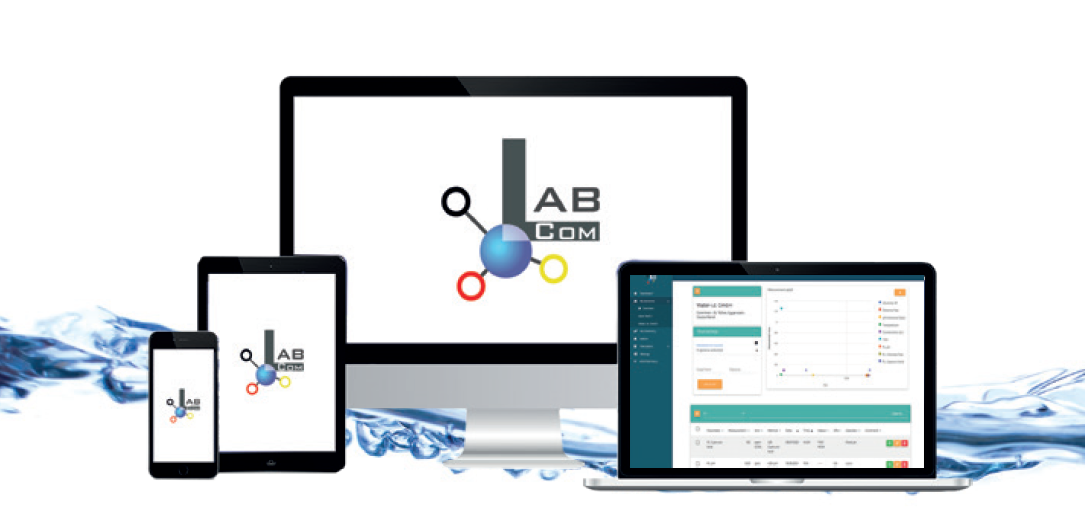

Software, App & Cloud
The LabCOM® Cloud solution (free of charge) requires less than a minute for registration. It provides full access to all test results, sampling points and individual water treatment chemicals either through a regular internet browser or on a smartphone (Android/iOS), tablet or on a computer (Windows/Mac). Your data is synchronized automatically and instantly available to review.
