Medical & Research Animal hematology Analyzer !
3-Part Auto Hematology Analyzer !
Design for Research & Medical
User-friendly interface
10.4 inch true color TFT LCD&touch screen, move visible
Minimize the number of interface layers, pop-up soft keyboard, easy to operate
Internationalization support
Possible choice of parameter units. Several languages avaliable, can switch language online
Pre-defined for 13 animlas plus an addition 3 user-defined animals, satisfy the requirements of most veterinary clinics
Provide test of alarm information
- Text of alarm information is clearer than alarm character provide by traditional 3-part analyzer, such as R1, Rm and Pm
Automatic blank counting
- Automatically start a blank counting and auto-assessment of the results during start-up process
Automatic re-counting
- Automatically re-count after unclogging treamtment while a counting hole is clogged, avoid re-collecting blood
Automatic adjusting
- Automatically adjusting voltage of HGB blank. Automatically adjusting alarm threshould of clogging and bubble of counting apertures
Built-in paterned structure thermal printer. Easy to load paper, and fast print of large size report
- Paper 80mm wide. Report printing takes only 5 seconds
State-of-the-art technology
- Sweeping flow technology, Pulse discrimination technology, Intelligent floating threshould technology
Wide application
- Pet hospitals, Zoos, Livestock System, Laboratory Animal Center, etc
Specification
Measuring Principles
- Impedance method for cells counting
- Cyanide free colorimetric method for HGM measurement
Measuring Channels
- Double channel for counting
Throughput
- From beginning of a test to completion of the printout: ≤ 60 Seconds
Counting Modes
- Whole Blood
- Pre-dileted Blood

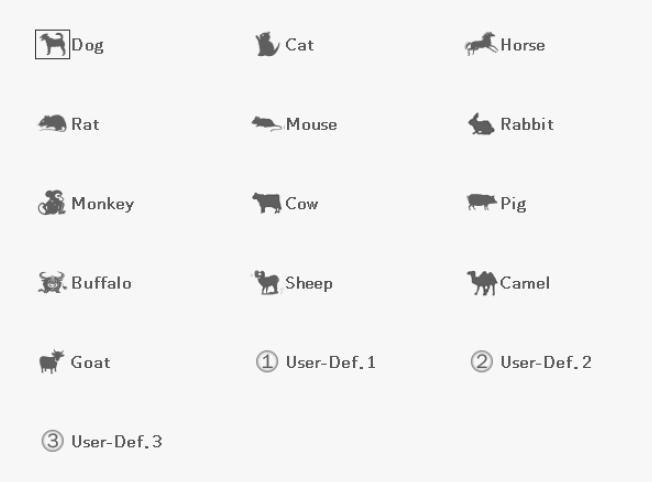

Species of Animals
- 13 pre-determined animal settings
- Cat, Dog, Horse, Mouse, Rat, Rabbit, Pig, Cow, Buffalo, Monkey, Carmel, Sheep, Goat
- Plus 3 programmable on request

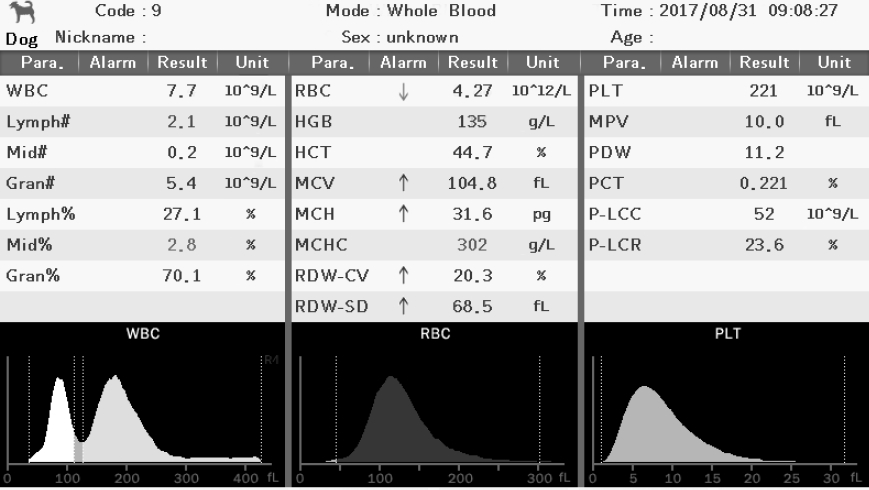

Parameters & Histograms
- Three-part differentiation of WBC covering dog, cat, mouse, rar, rabbit, monkey
- Horse, 21 parameters +3 histograms WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%
- Gran%, RBC, HGB, MCV, MCH, MCHC, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW
- PCT, P-LCT, P-LCC, WBC Histogram, RBC Histogram, PLT Histogram
Alarm System
- Multiple alarams of running status including blank counting abnormal, reagents empty, waste full, counting hole clogged, counting area bubble, recorder abnormal, external printer abnormal and circuit abnormal, etc
Measures of Unclogging Treatment
- Back flushing, soaking and burning. Automatic unclogging treatment before and after the sample analysis
Printout
- English print report, oprional report formats
Storage
- Can store more than 10,000 sample results, including parameters, histograms and animal information.
- Support muitiple conditions combination query
Communication
- Open communication protocol. Support connection to LIS
Data Import & Export
- Import or export data via USB port
Quality Control System
- Include 9 QC files, automatically draw quality control chart, provide the average, SD, CV
Calibration System
- Support manual and automatic calibration
Display & Touch Screen
- 10.4 inch true color TFT LCD and touch screen
Printer
- Built-in patented structure thermal printer, paper 80mm wide, easy to load paper.
- Report printing takes only 5 seconds.
Optional External Devices with USB Port
- Standard 101 keyboard, mouse, barcode scanner and multiple printers
Operating Environment
- Environment Temperature: 10℃ ~ 30℃
- Relative Humidity: ≤ 70%
- Atmospheric Pressure: 70.0kPa ~ 106.0kPa
Reagents
- Provide original reagents
- RFID closure of all reagents optional
