[eliga]휴대 가능한 스마트 지면반력기(Smart Force Plate), 점프력 측정 시스템 강추, T137-C
Smart Force Plate ELIGA
카운트 무브먼트점프, 서전트 점프, 드랍 점프, Isometric 테스트, 컨티뉴 카운트 무브먼트점프, 한발점프, Cadence, 스쿼트
FLEXIBLE & PORTABLE
Portable design for weight and size, with customized suitcase, easy to carry.
MULTI-MODE
Support CMJ, SJ, DJ, IMTP and free test modes etc..
WIRELESS
Using Bluetooth to communicate. Rechargeable work with up to 10 hours of battery duration. Wireless without worry.
BALANCED MONITORING
The double-plate structure collects the force of both feet separately, and monitors the balance of force.
Specifications
Size: 610*360*52 mm
Weight : 10.5kg/piece, 2pcs in total
Measuring range: 0-10kN
Display frequency: 200Hz
Sampling frequency : 1000Hz
Features

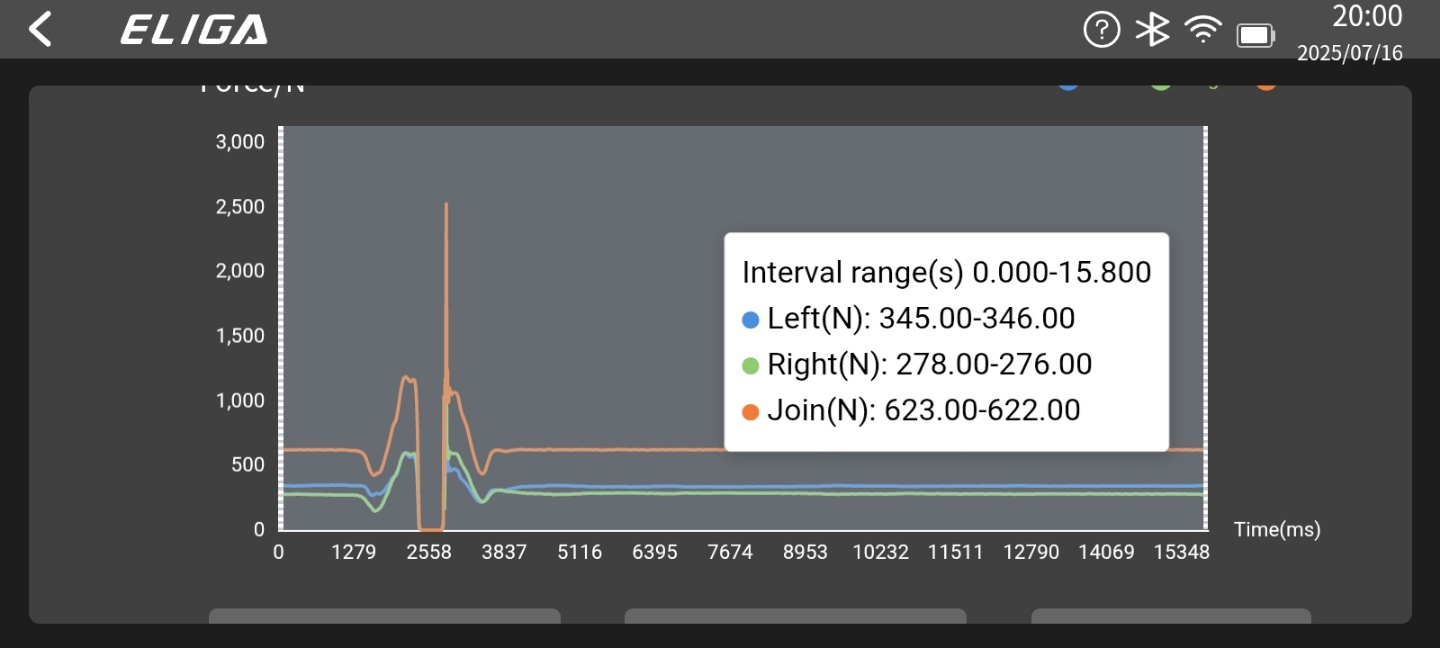

1. Draw the left, right and resultant force curves in real time, and automatically calibrate the core point of the action;
2. Monitor more than 20 parameters such as peak RFD and relative maximum power;
3. Supports exclusive test modes such as CMJ, SJ, DJ, IMTP, etc.;
4. After training, you can exclude weight factors and check absolute strength;

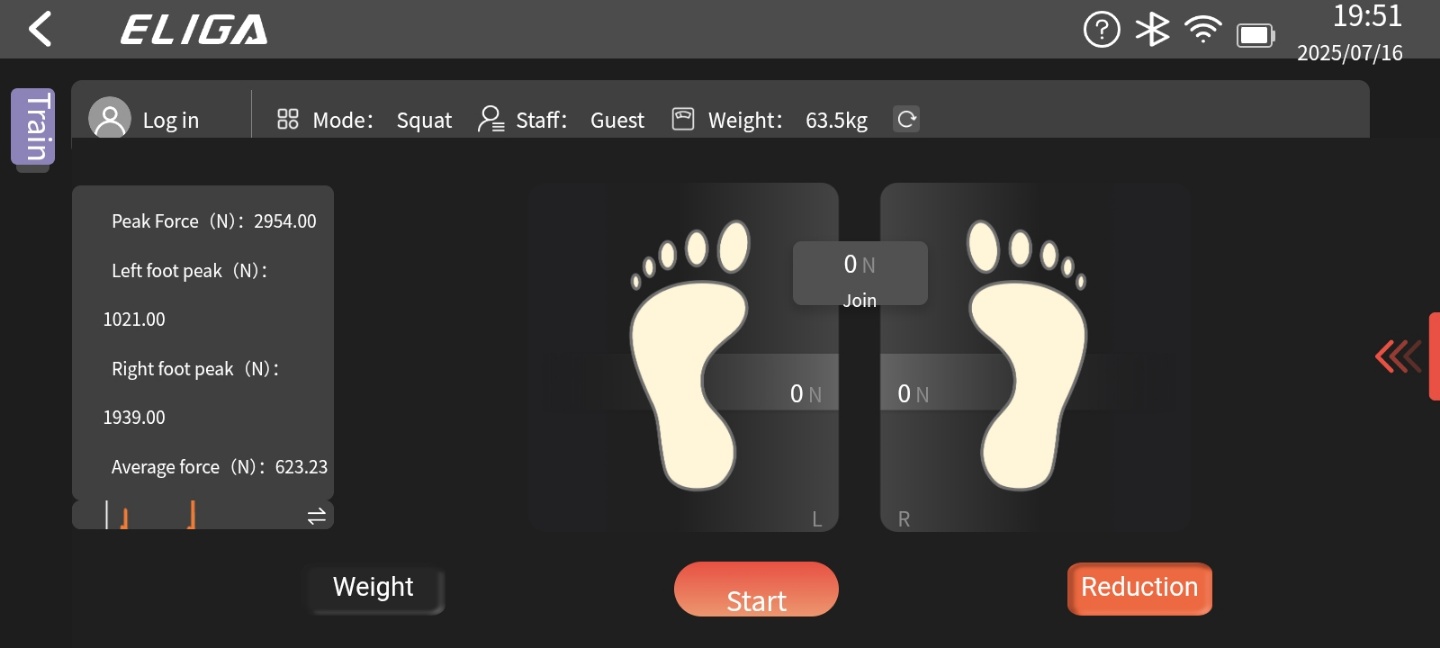

5. Measure the left, right and resultant forces and display them in real time;
6. Real-time display of left and right balance;
7. Support APP scan code to log in, and the training data can be interconnected while logged in, and the data can be synchronized to the mobile phone and Pamfa system;
8. Can be connected to the PAMFA cloud management system for team management, data viewing, analysis and export;
9. Cloud data server in mainland China. Private cloud server can be built to achieve complete data confidentiality.

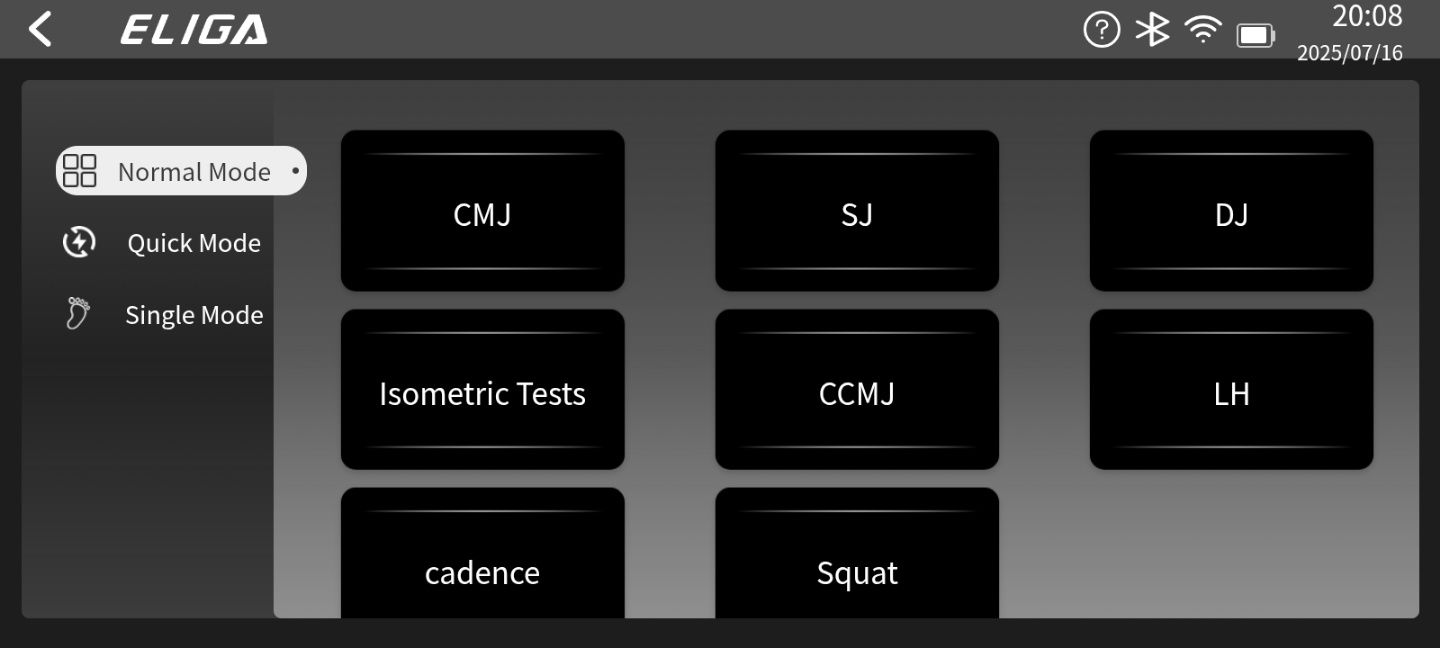

Supports modes
Countermovement Jump (CMJ), Squat Jump (SJ), Drop Jump (DJ), Isometric Mid-Thigh Pull (IMTP) and Consecutive Countermovement Jump (CCMJ) and Free test, can also perform a single-leg test.
Display Parameters:
1. Peak force
2. Relative peak force
3. Vertical jump height
4. Balance ratio of left & right foot force
5. Peak RFD
6. Relative maximum power
7. Action time
Operated with App to realize wireless use
Portabel Case
Lab to Field 언제 어디서나 사용 가능
Movie Data
사용법이 간편하고 내구성이 우수한 지면반력 측정 시스템 사용 동영상입니다.
