[1080MOTION] Smart Research Grade Resistance Training - 1080QUANTUM
1080 Quantum is a sophisticated system for performance training, testing, rehabilitation and research.
Validated by scientists in professional sports training, the system is proven to be more effective than traditional methods.
The power lies in our patented technology where resistance level, mode and speed are provided by an electric motor.
This creates a unique ability to safely and independently control resistance and speed in the concentric and eccentric phase while measuring force and power throughout the movement.
All controls are accessed and operated via a user friendly touch screen interface.
The ability to test and train while at the same time document and get real-time feedback on physical output, is invaluable for any trainer or health care professional when implementing a training or rehabilitation program.

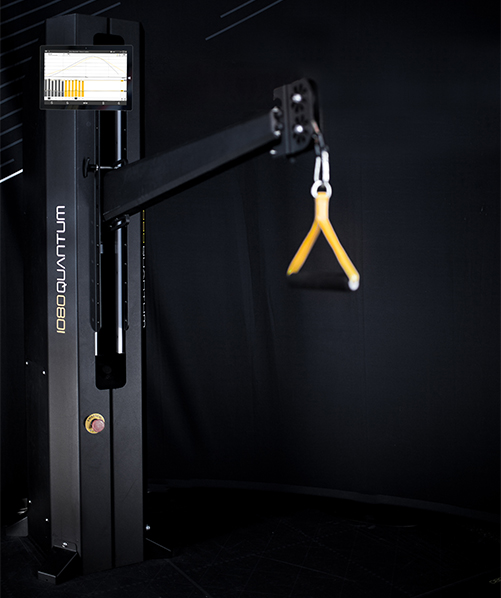

1080QUANTUM OVERVIEW
Unparalleled versatility and accuracy for evaluating and developing force, speed, power and acceleration.
A wide range of functional tests and exercises can be performed with 1080 Quantum.
The adjustable arm with a 5 meter cable ensures the optimal loading angle for any movement pattern.
Load the athlete vertically, horizontally or diagonally using grips, belts, vests or other attachments.
Resistance types for testing and training in both the concentric and eccentric phase of any movement
1. Isoinertial – emulated normal weight stack resistance
2. Isotonic- constant resistance
3. Isokinetic- constant speed for optimal force development and time under tension
4. Variable inertia – resistance and inertia when you need it. Also known as “No Flying Weight” mode for optimal power training at high velocities.
5. Vibration – different amplitudes at 25 Hz for neuromuscular stimulation.
Specification of Single Cable
1. 1-25 kg (2-55 lbs) of continuous concentric load
2. 1-30 kg (2-66 lbs) of continuous eccentric load
3. 1-50 kg (2-110 lbs) of continuous concentric load withGear 2
4. 1-60 kg (2-132 lbs) of continuous eccentric load withGear 2
5. Maximum con/ecc load during 3 seconds: 75 kg (165 lbs), 150 kg (331 lbs) with Gear 2
6. Concentric velocity: 0.1–8 m/s (0.3-26 ft/s)
7. Eccentric velocity: 0.1–6 m/s (0.3-20 ft/s)
8. In Gear 2 maximum speed is halved

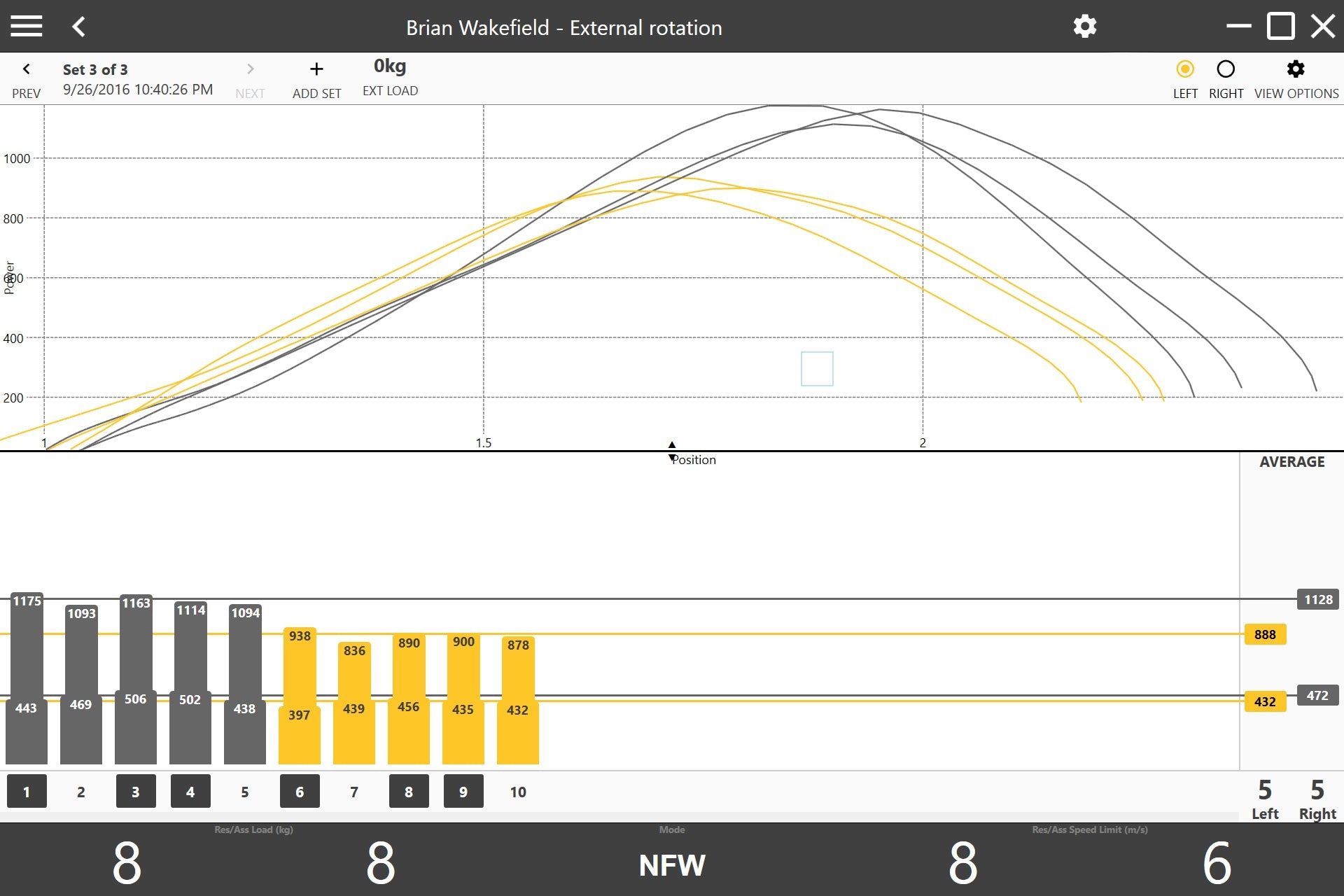

9. Recording frequency of force, speed and power: 333 Hz
10. Tablet with touch screen interface or laptop
11. Weight: 180 kg (400 lbs)
12. Operating system: Windows 10
13. Height: 1.7 m (5.6 ft)
14. Max cable travel: 5 m (16 ft)
