Smart Foot Pressure Analysis - Accuracy FSR Sensor Monitoring Winshoe



Focus on the quickness of inshoe pressure measurement under the foot.

It is the solution for a quick and reliable test of your insole, shoe on real conditions or at the clinic.





Specification

1. light

2. 4 pairs of 8 preplaced sensors positionned on the key points of the foot (foot size 35 to 46)

3. Max pressure : 8kg/cm²

4. Bluetooth  PC or Android smartphone connection

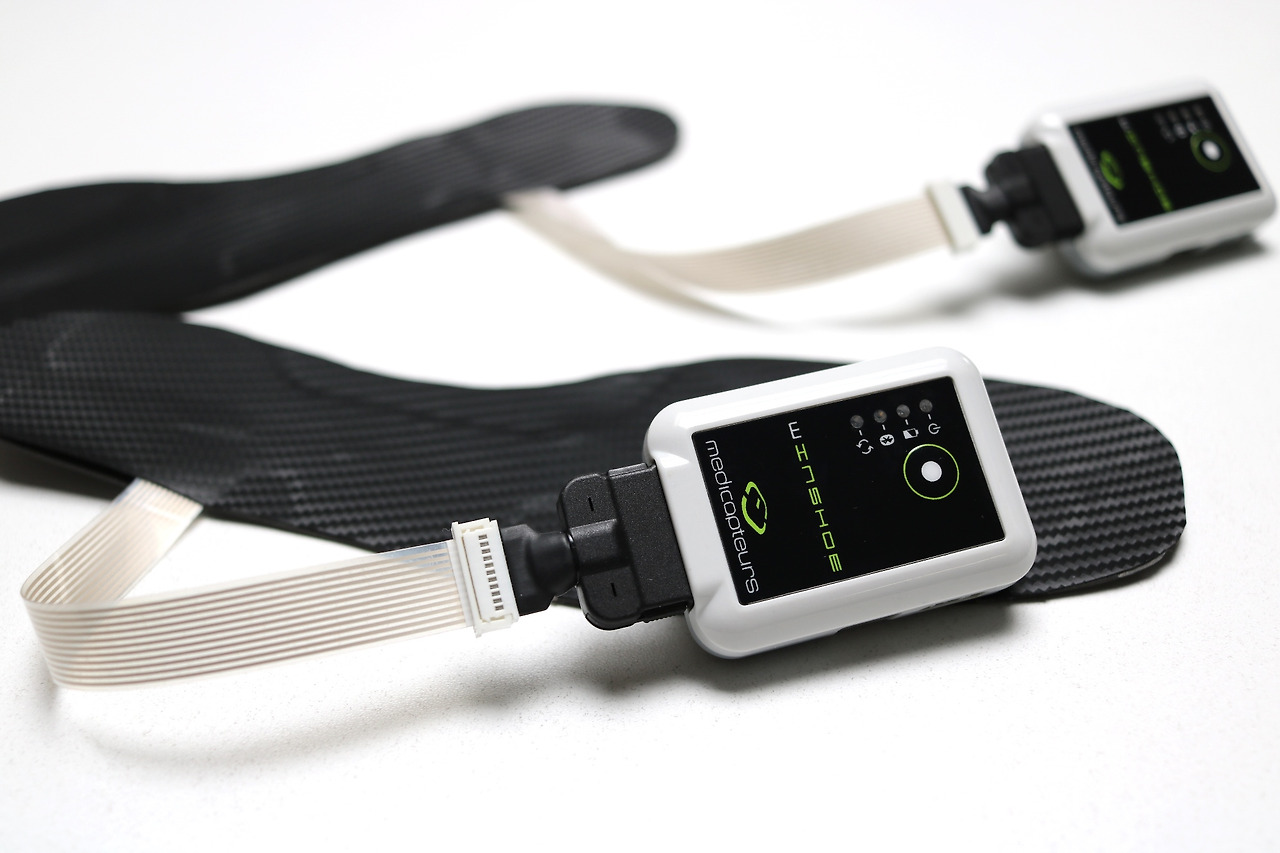

Light and and movement free boxes

1. 100 Hz Acquisition

2. automatic synchro of the two bluetooth boxes

3. Fast USB charge (1h30)

4. Full charge battery allow 5 hours of measurement

5. Simple clip attach to shoelaces or straps

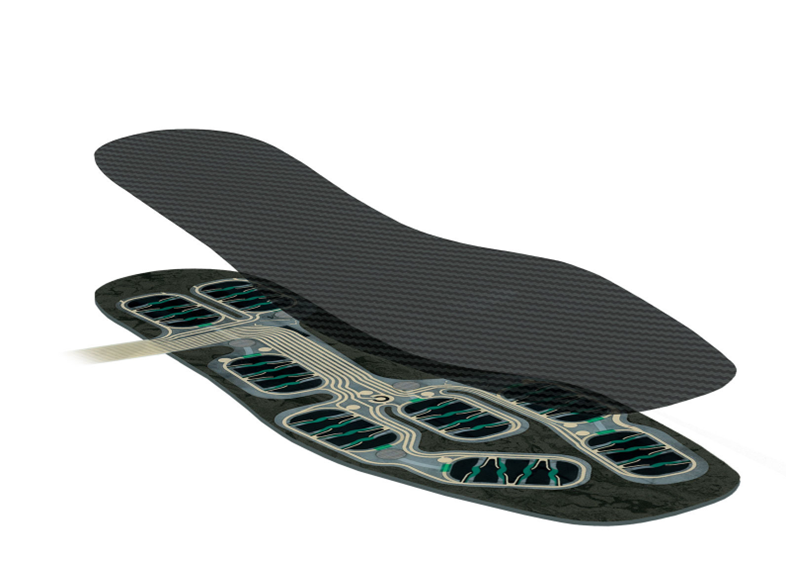

High-precision pressure sensors

1. 8 ultra-thin, calibrated sensors

2. very strong and reliable sensors

3. Guaranteed for 1 million uses, validated on test bench

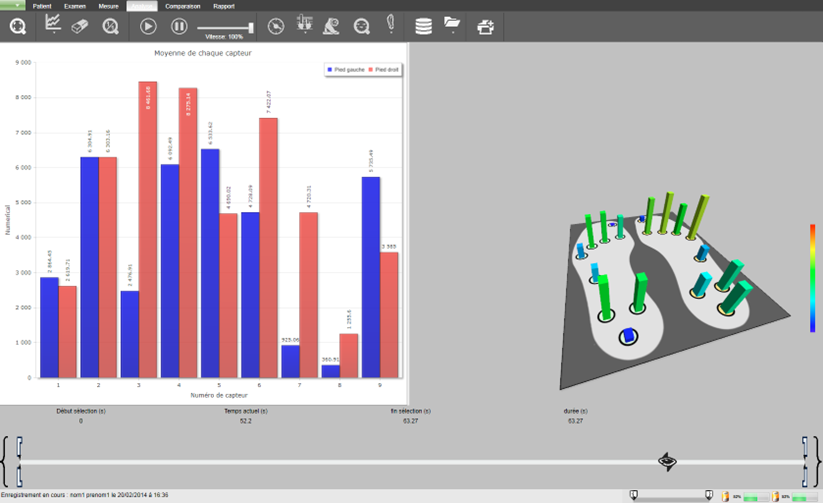

Analysis

1. Detailed acquisition analysis: displays the pressures, activation times and each of the sensors' impulses

2. Right foot / Left foot comparison

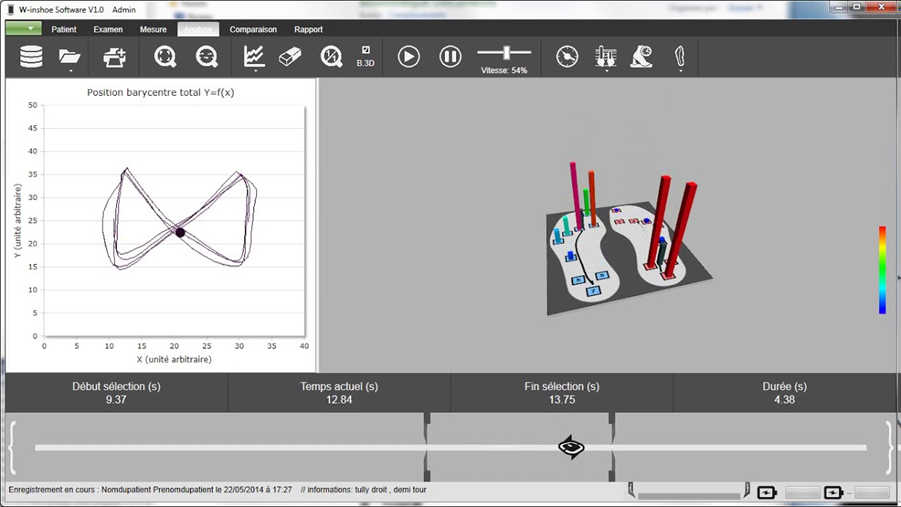

3. Sensor barycenter (COP)

4. Automatic Step detection

5. Comparison of sensor values/graphics between several recordings

6. One click button report editing.

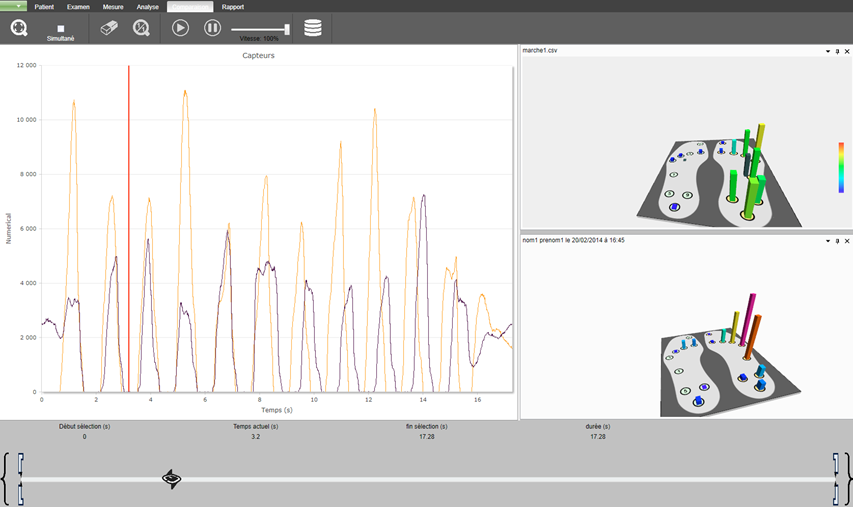

PC Softaware

Window program analysis

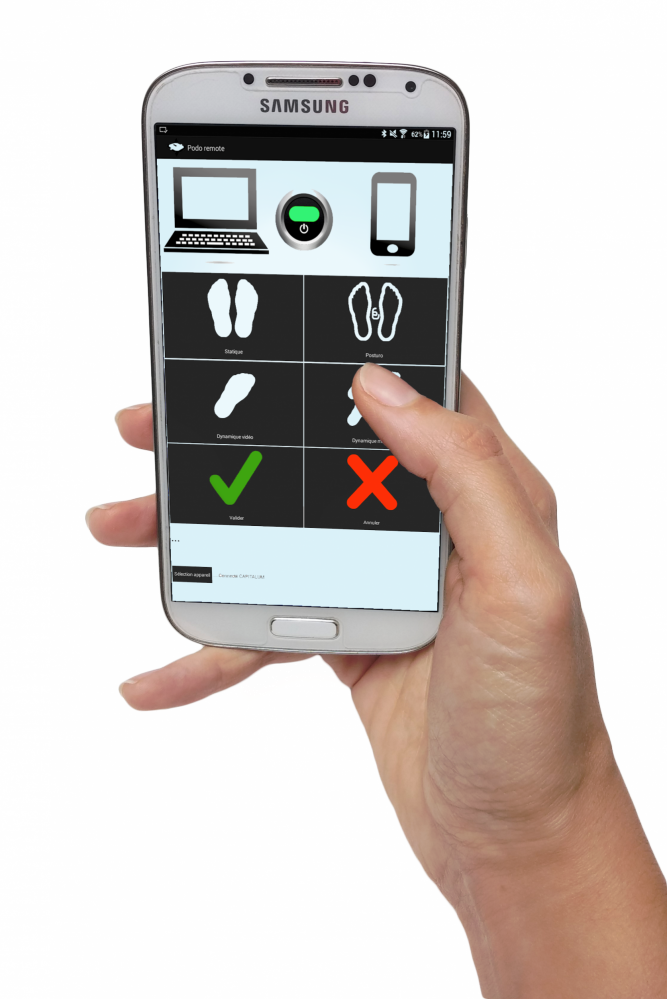

Android Software

1. Android smartphone or tablet software

2. record from your smatphone, vizualize results and choose data to upload (USB) to the PC software

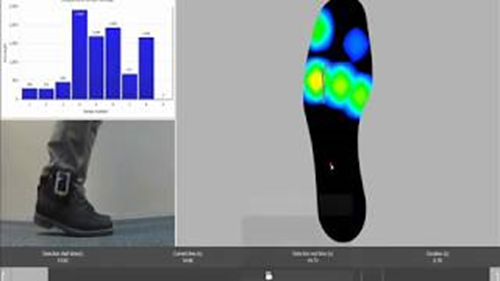

Movie Data

Portable Sports Foot Pressure Analysis
