[디지털근력측정]ergoFET Digital Force Gauge

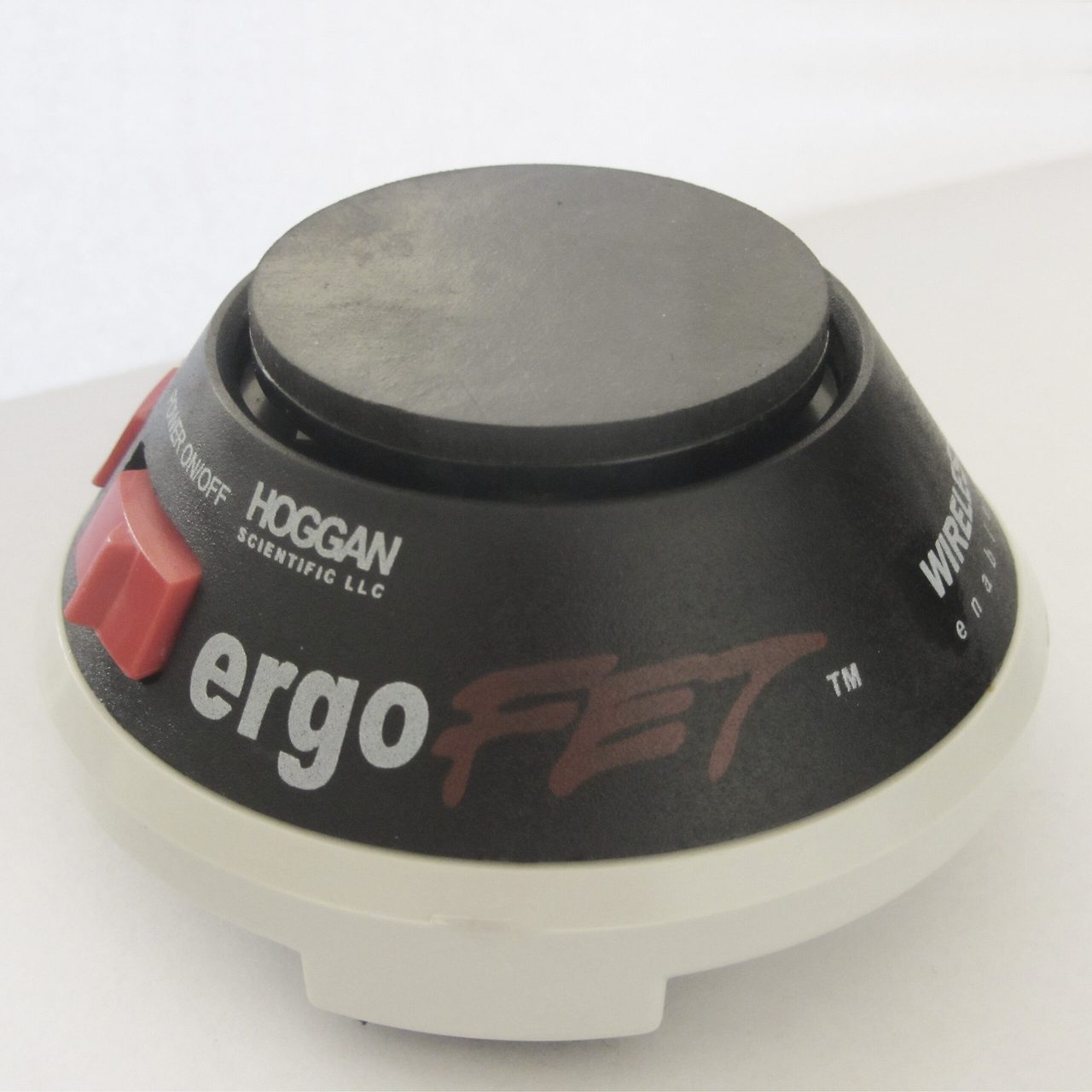

ergoFET™
- Digital force gauge designed for Ergonomic and Engineering Applications

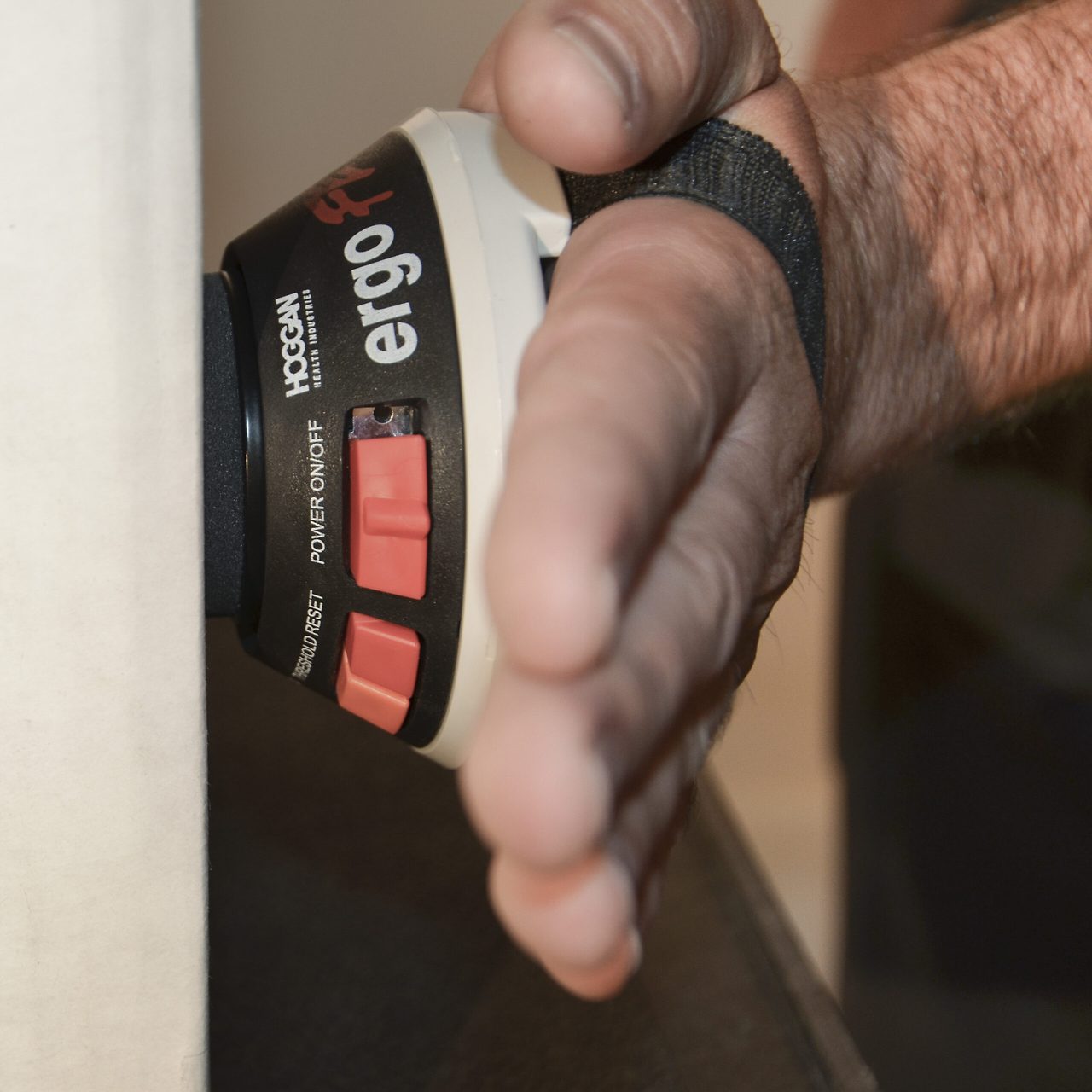

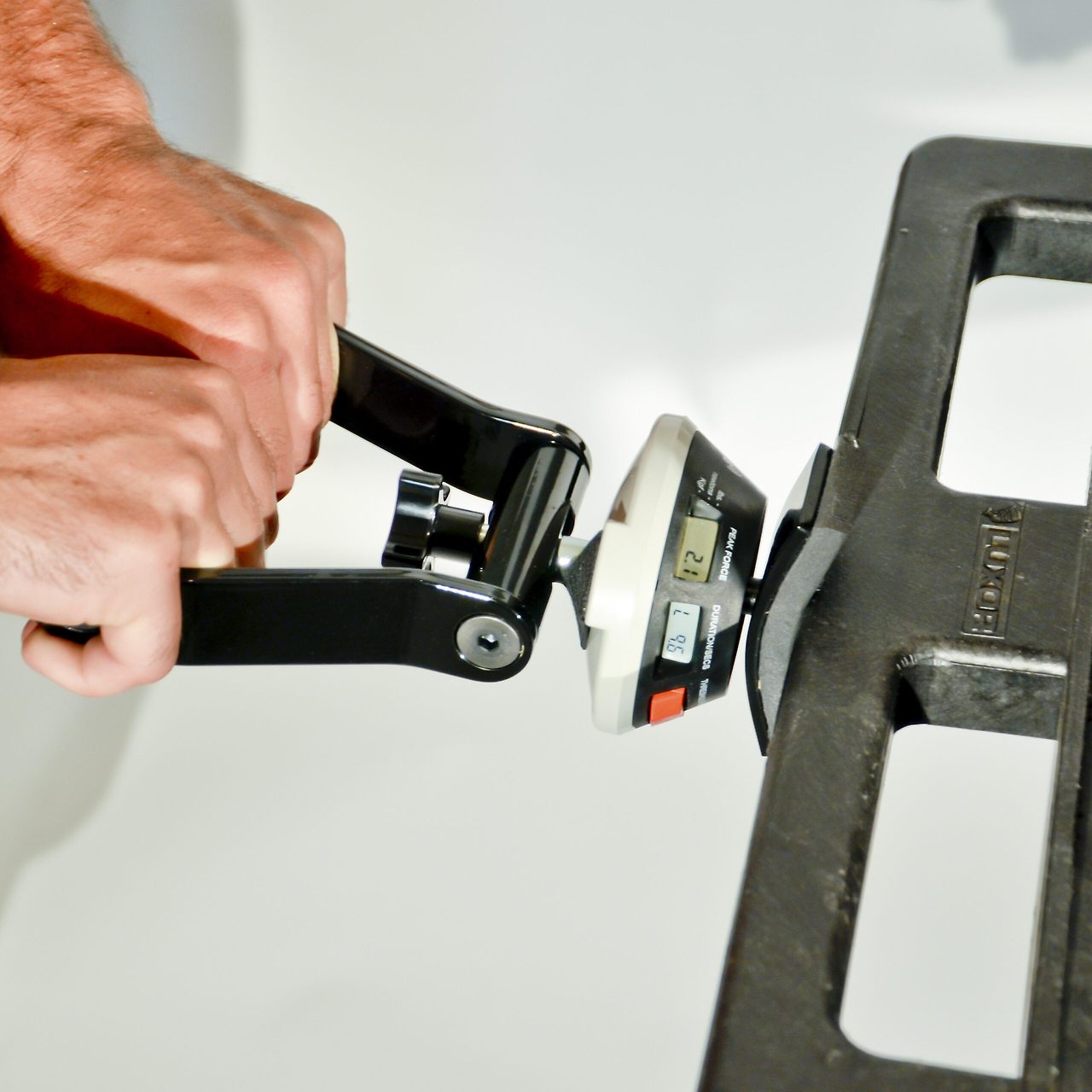

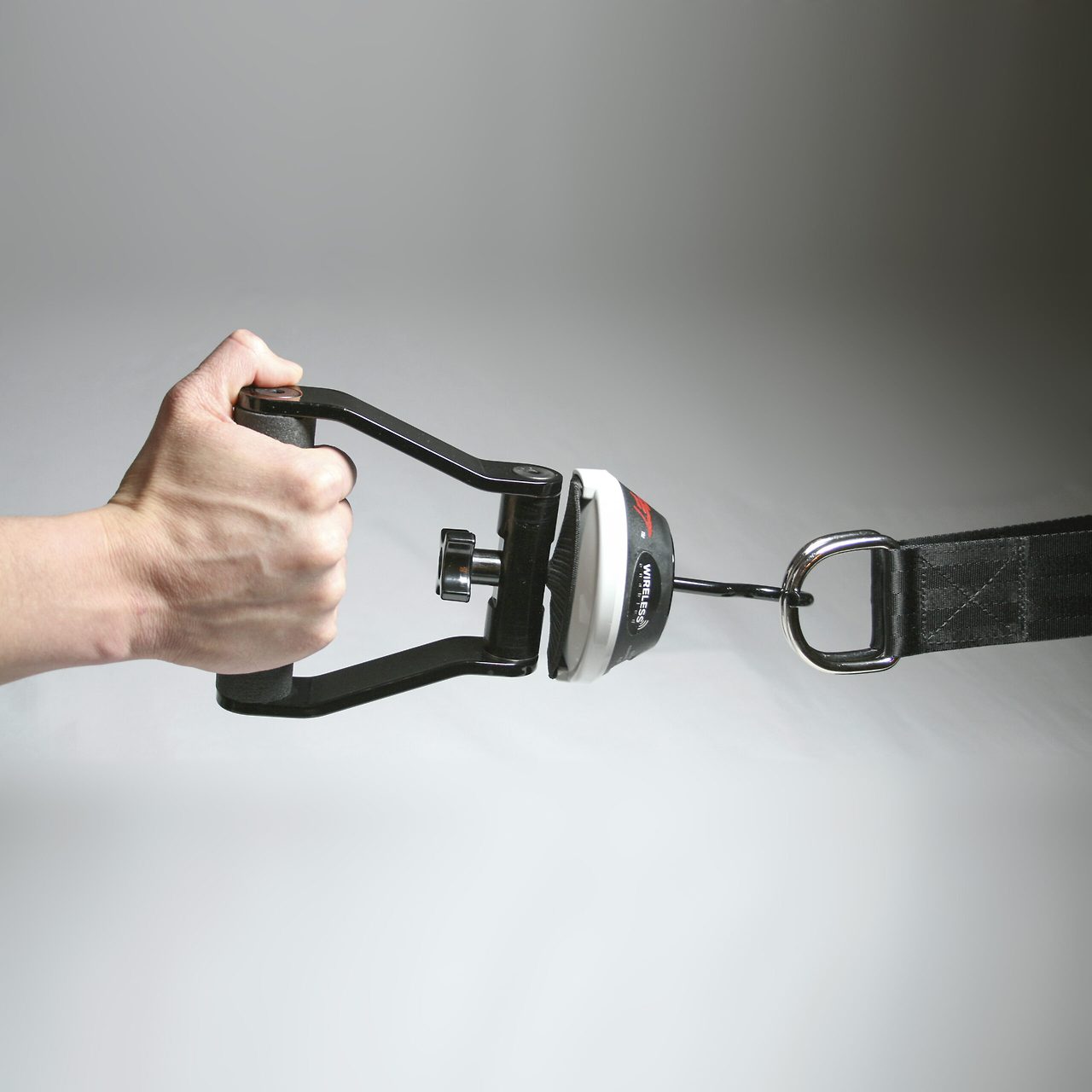

- Measures Push & Pull Forces
- 300 lb(136 kg) Force Load Capacity

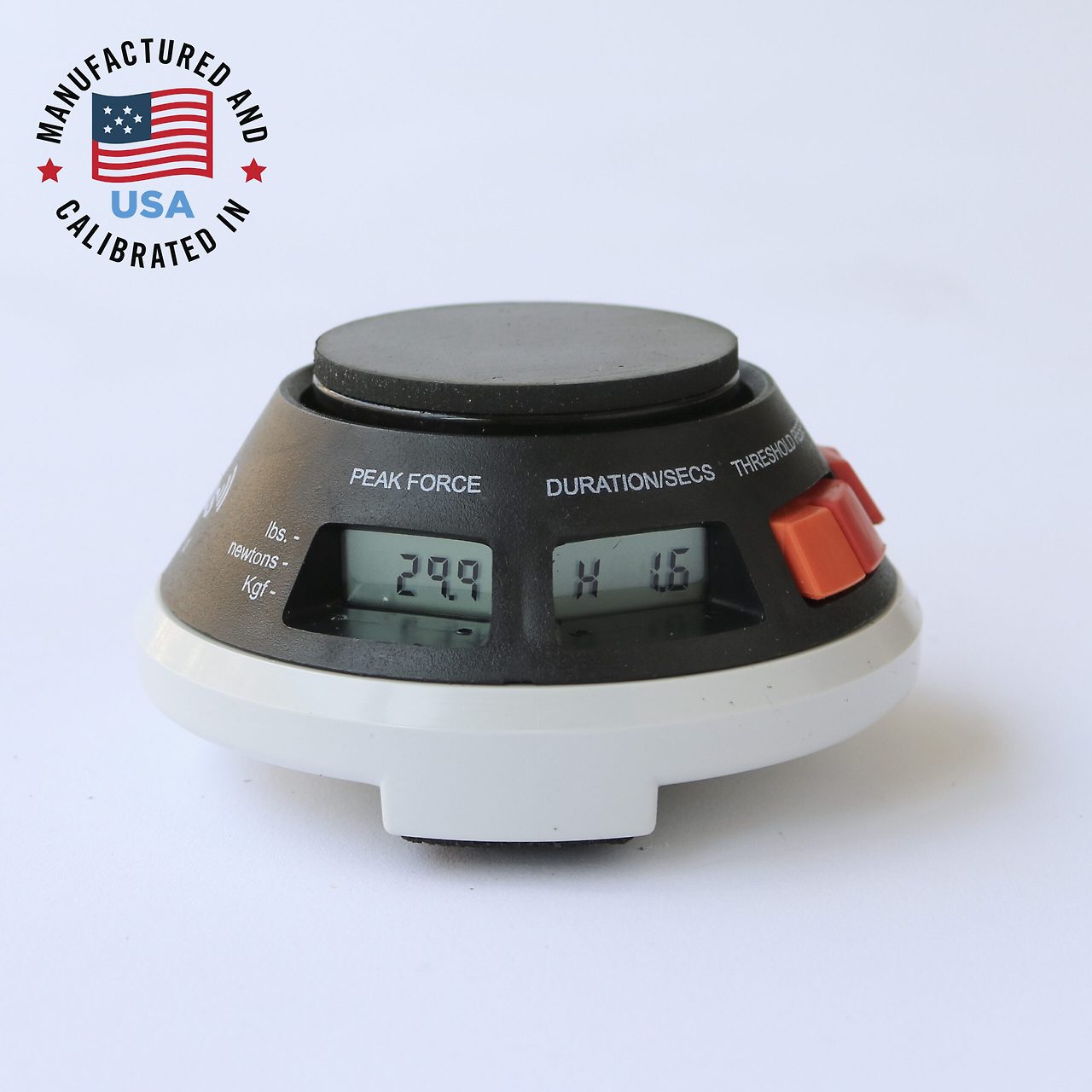

- Easy To Read LCD Displays Show Peak Force and Elapsed Time
- Low and High Threshold Settings Provide Expanded Sensitivity
- Available FET Data Collection Software Automatically Tracks and Analyses Test Data
Gauge Measures both Push and Pull Forces up to 300 Pounds
Wireless ergoFET™ is a digital force gauge that empowers ergonomic, engineering, and safety professionals to objectively measure and quantify human and product performance.
This capability yields improved product functionality, quality, and manufacturing efficiency, while reducing costs associated with cycle time and repetitive motion injuries.
Wireless ergoFET™ force gauge eliminates cables, cords, and wires. This cost-effective and ergonomically handheld design makes testing easier and more closely simulates actual job tasks for one hand test applications.
Major corporations in automotive, aerospace, and consumer products industries have applied this proven technology for their ergonomic applications.
Application
ergoFET™ Specifications:
1. 300 lbs. maximum force load capacity
2. Selectable units of measure: pounds (lbs.), Newtons (N), or kilogram-force (kgf)
3. Accuracy within 1% of reading
4. Two threshold settings for muscle testing: Low Threshold – 0.8 lb. to 300 lbs. in
5. 0.1 lb. increments and High Threshold – 3.0 lbs. to 300 lbs. in 0.1 lb. increments
6. Uses rechargeable lithium ion battery.
7. Self-activating “sleep” mode after 3 minutes of non-use to extend battery life
Software

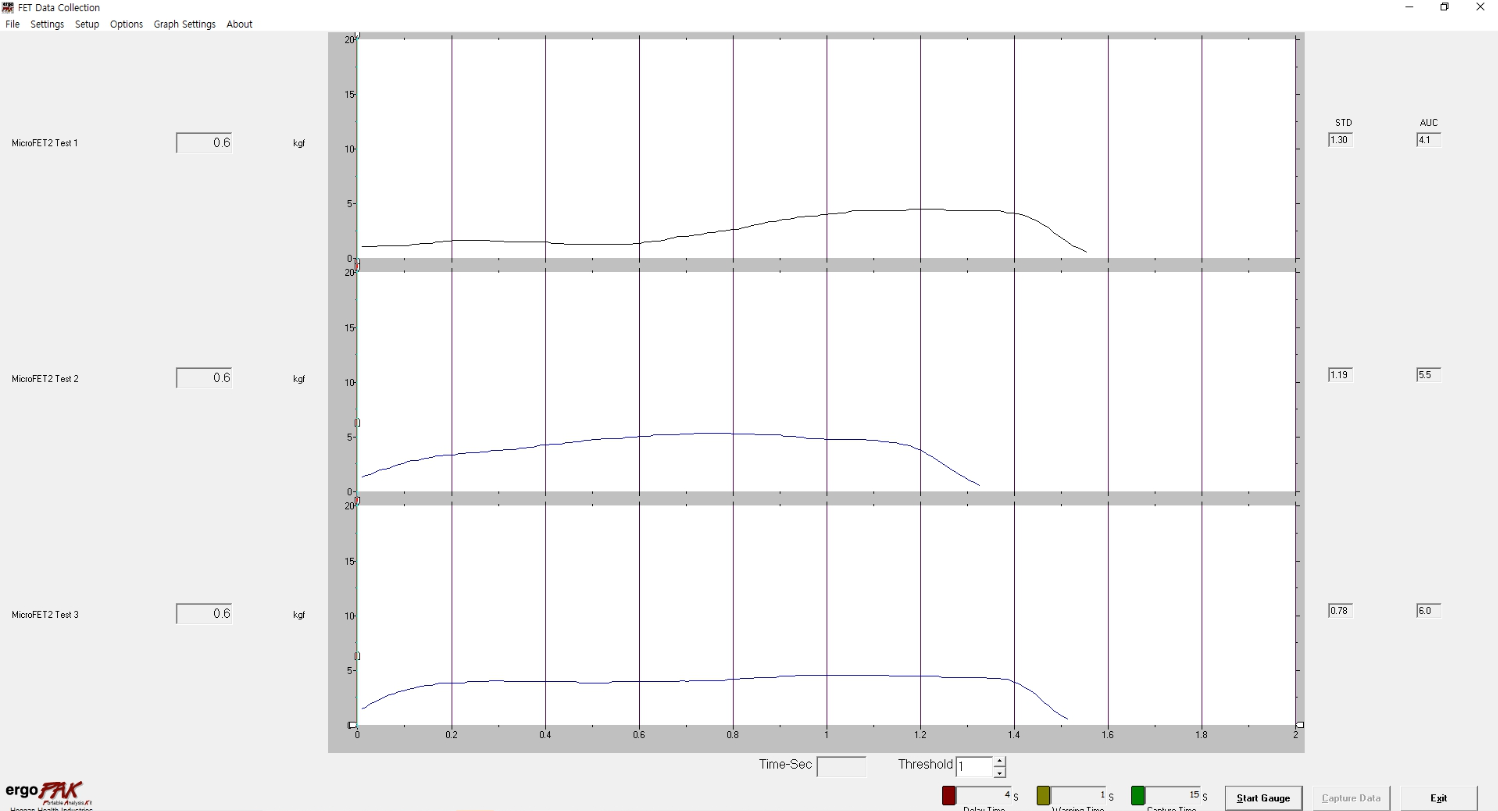

FET Data Collection Software Package
This digital force gauge program is designed for research and education applications.
The program simultaneously captures raw test data while displaying a realtime graph of the data.
The data is saved in comma-separated values (CSV) format and can be opened in most spreadsheet programs for further analysis.
System Package

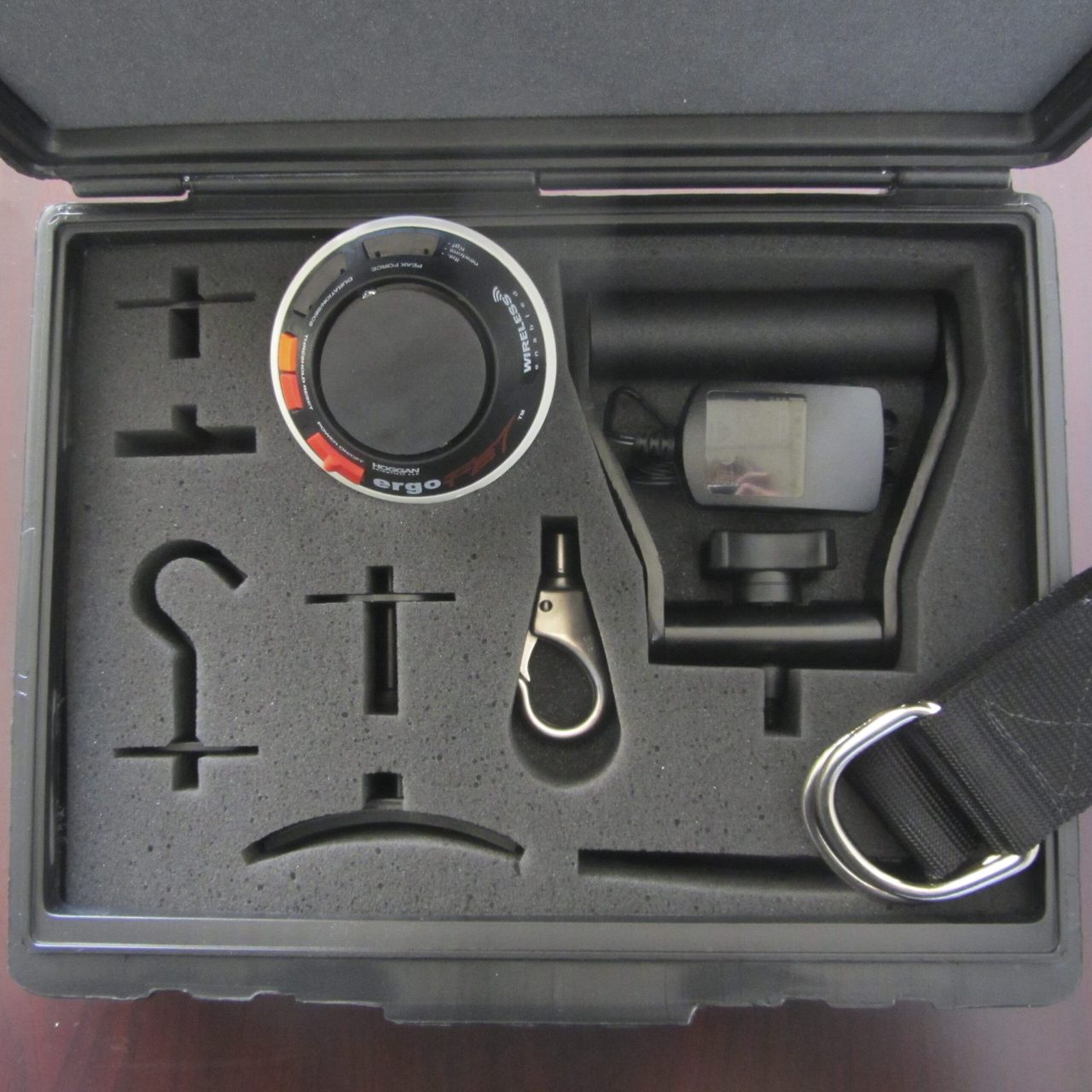

HardBox Portable Case
Contact & Ask
HOGGAN KOREA
MDK System
www.mdksystem.com
TEL : 02 553 0923
