실린지 펌프는 정량 펌프에 비해서 출력 볼륨이 워낙 작아서 고민이 많으실 것입니다.



소개해드리는 실린지 펌프 모델을 보시면 왠만한 실험부터 산업분야까지 모두 적용 가능할 것입니다.







Syringe Pumps



1. Laboratory Syringe Pumps



MODEL	IMAGE	SPECIFICATIONS

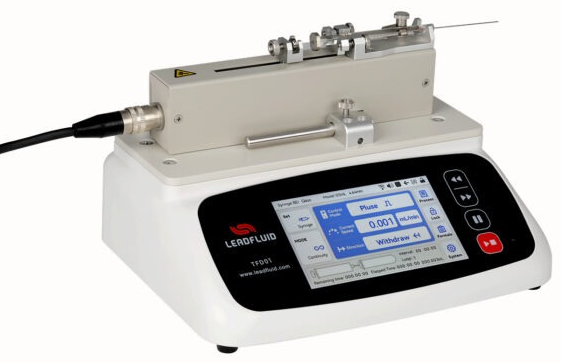

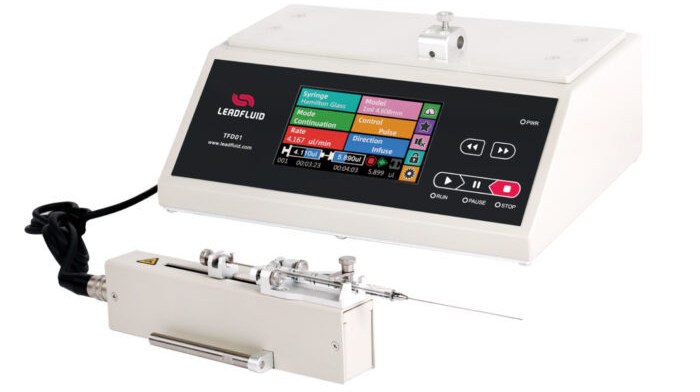

TFD01-01(New)		TFD01-01(New) Laboratory Syringe Pump The TFD01-01 syringe pump is a single-channel split style micro syringe pump that combines aesthetics, intelligence, precision, and reliability.  It is an ideal choice for laboratories requiring high-precision, pulse-free transmission of microflow volumes. Flow: 0.058nL/min-1.587mL/min Max: 1 Channel

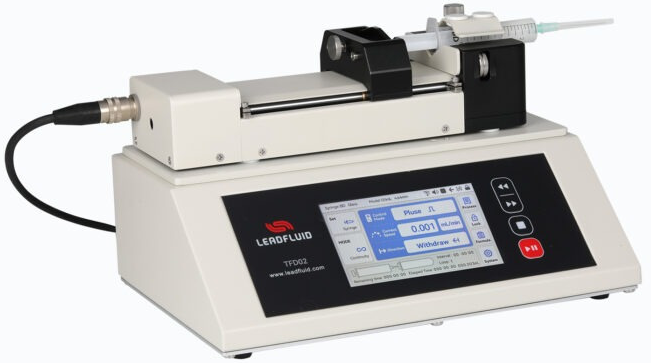

TFD02-01		TFD02-01 Laboratory Syringe Pump TFD02-01 syringe pump is a single-channel split style micro syringe pump that combines aesthetics, intelligence, precision, and reliability.  It is an ideal choice for laboratory requiring high-precision, pulse-free transmission of microflow/microliter volumes. Flow: 0.184nL/min-83.318mL/min Max: 1 Channel

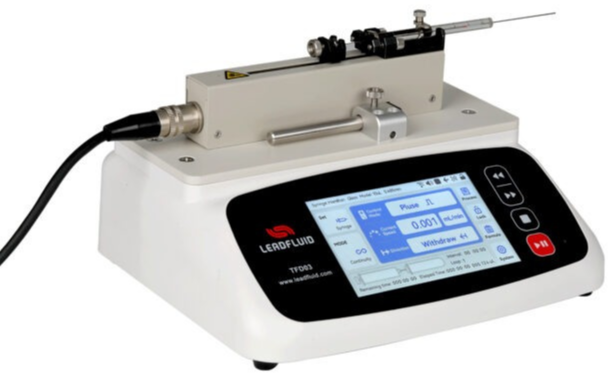

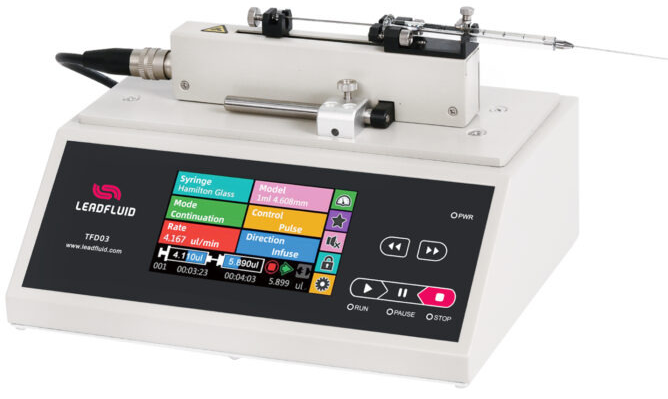

TFD03-01		TFD03-01 Laboratory Syringe Pump The TFD03-01 syringe pump is a single-channel split style micro syringe pump that combines aesthetics, intelligence, precision, and reliability.  It is an ideal choice for laboratories requiring high-precision, pulse-free transmission of microflow volumes. Flow: 0.005nL/min-152.456uL/min Max: 1 Channel

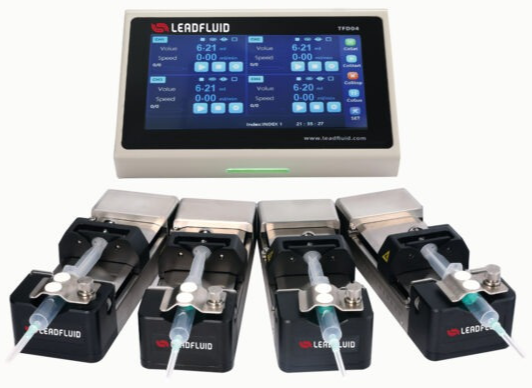

TFD04		TFD04 Laboratory Syringe Pump TFD04 laboratory syringe pump, transmission accuracy error＜±0.5%, can independently control 1～8 channel operation.  Split design, more flexible usage. 7 inch HD color touch screen display and operation, powerful functions,simple operation, rich operating information.  RS485 communication, support MODBUS protocol. Flow: 0.005nL/min-152.456uL/min Max: 8 Channels

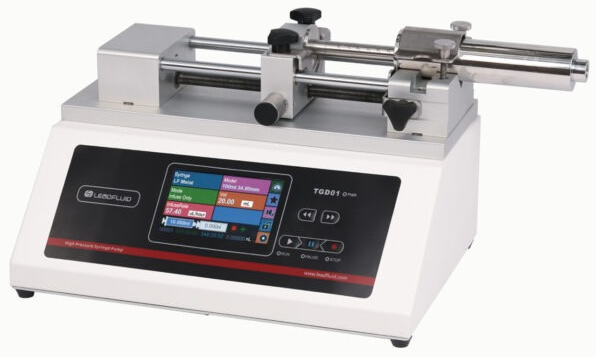

TGD01		TGD01 Precision High Pressure Syringe Pump TGD01 is a single channel high pressure syringe pump,HD LCD touch screen,transmission of linear thrust> 200lbs (91kg)in a wide range of flow rate, support five working modes such as infuse and withdraw.  RS485 communication, compatibility MODBUS protocol, wide range power input, suitable for high-precision transmission of liquids (including high viscosity). Flow: 3.000pL/min～214.915mL/min Max: 1 channel

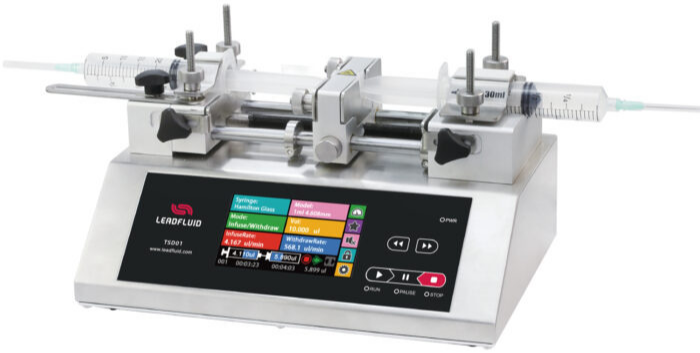

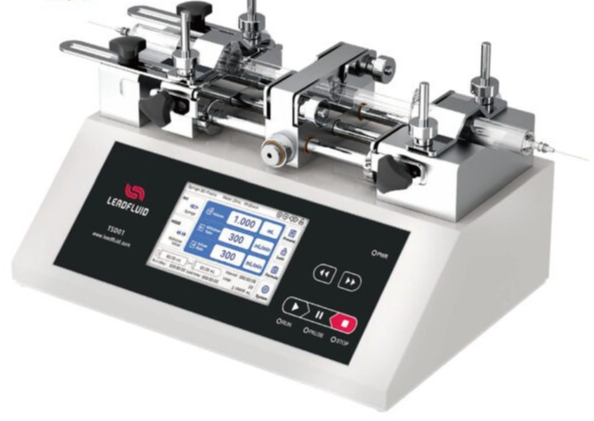

TSD01-01		TSD01-01 Two Way Push Pull Syringe Pump TSD01-01 can accommodate two syringes and achieve continuous liquid transfer through external valve control.  Featuring a 5-inch high-resolution color LCD display, it offers convenient touchscreen operation for quick parameter setup.  Dual-color indicator lights clearly display the current operating status. With built-in support for various syringe manufacturers and specifications, it allows for easy selection and storage of multiple sets of data to meet the requirements of different experimental flow rates.  It supports high-precision control, includes protective structures, and features overload alarm mechanisms.  The product supports external signal-controlled start/stop, includes built-in RS485 communication, and supports the Modbus protocol.  Encased in a metal shell with wide-range power input, it is suitable for various experimental environments. Typical applications: various laboratory applications, micro-volume transfer, micro-flow transfer, pulseless transfer, and high-precision transfer. Flow: 0.184nL/min-83.318mL/min

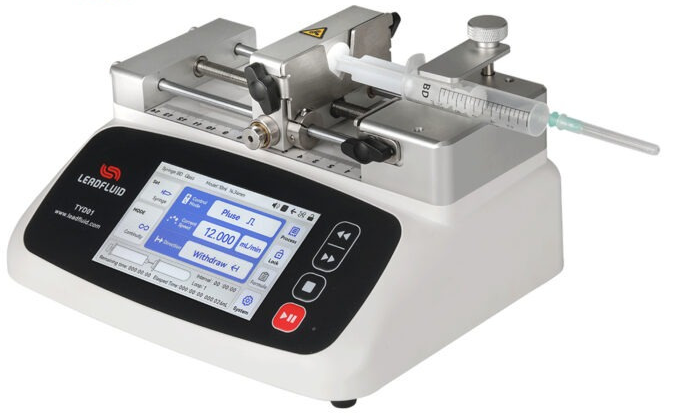

TYD01-01(New)		TYD01-01(New) Laboratory Syringe Pump TYD01-01 laboratory syringe pump is a high-precision and multifunctional desktop syringe pump designed specifically for laboratory applications. Its unique design and functional features make it an good choice for various experimental environments. Flow: 0.184nL/min～83.318mL/min Max: 1 channel

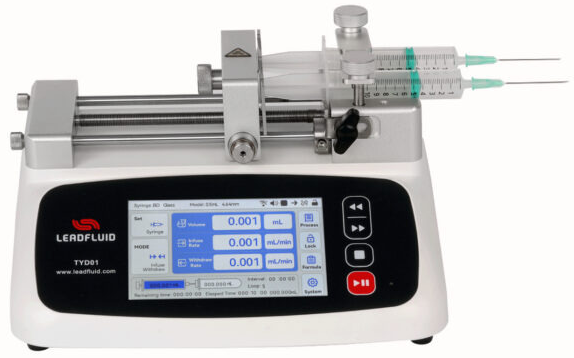

TYD01-02 (New)		TYD01-02 (New)Laboratory Syringe Pump TYD01-02 laboratory syringe pump is a high-precision and multifunctional desktop syringe pump designed specifically for laboratory applications. Its unique design and functional features make it an good choice for various experimental environments. Adopts integrated table model design, 5-inch HD LCD touch screen display and operation, can assembly 1 plastic syringe or gas tight syringe, size range of syringe 10μL～60mL，flow range 0.184nL/min～83.318mL/min. Use excellent control system and precision mechanical structure, linear travel accuracy<± 0.35%, multiple working modes are available,powerful function. It is very suitable for high precision micro-transmission of various fluids in scientific research and experiment. Flow: 0.184nL/min-83.318mL/min Max: 2 Channels

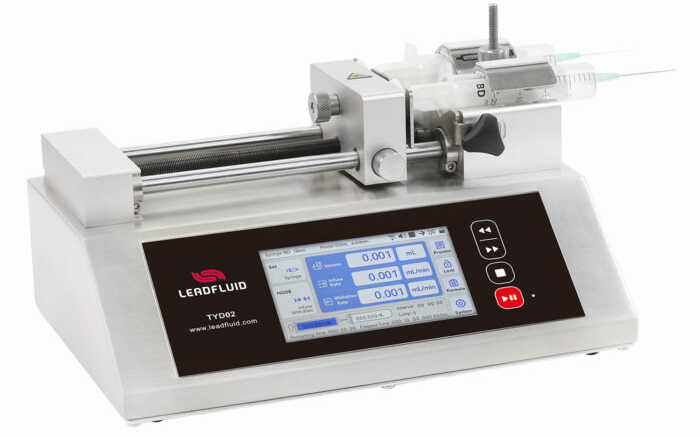

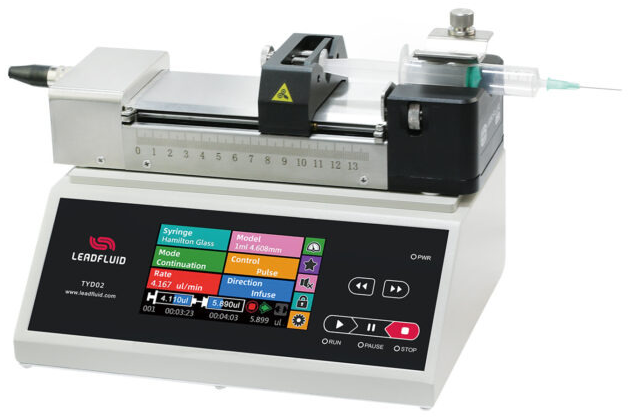

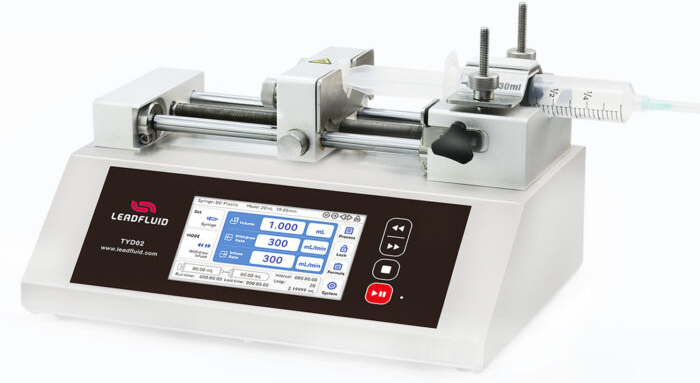

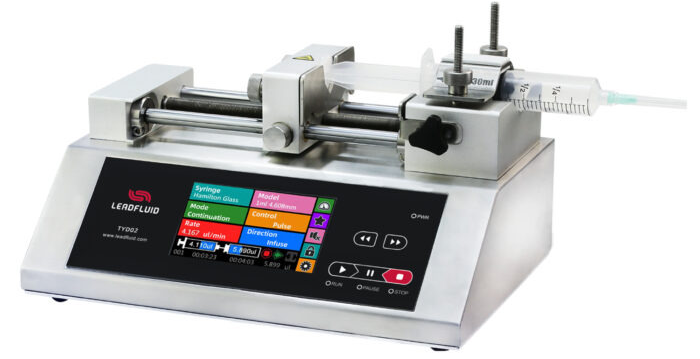

TYD02-01		TYD02-01 Laboratory Syringe Pump TYD02-01syringe pump adopts integrated table model design, 5 inch HD LCD touch screen display and operation, can assembly 1 plastic syringe or gas tight syringes, size range of syringe 10μL～140mL,flow range 0.184nL/min～173.718mL/min. Use excellent control system and precision mechanical structure, linear travel accuracy <±0.35%, multiple working modes are available,powerful function It is very suitable for high precision micro-transmission of various fluids in scientific research and experiment. Drive screw fixation using high strength aviation bearing, compared with traditional copper sleeve bearing, the service life of the screw has been significantly improved, and the accuracy is higher. Strong Anti-EMI performance, continuous and stable operation under high voltage electrostatic field. RS485 communication, compatibility MODBUS protocol, automation control system can be composed of computer, PLC, single chip computer etc. multiple host computers. Flow: 0.184nL/min-173.718mL/min Max: 1 Channel

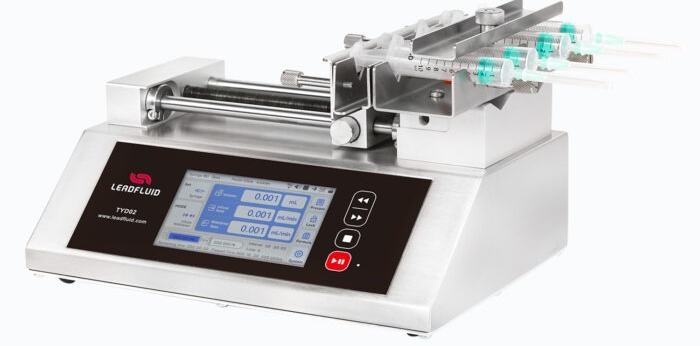

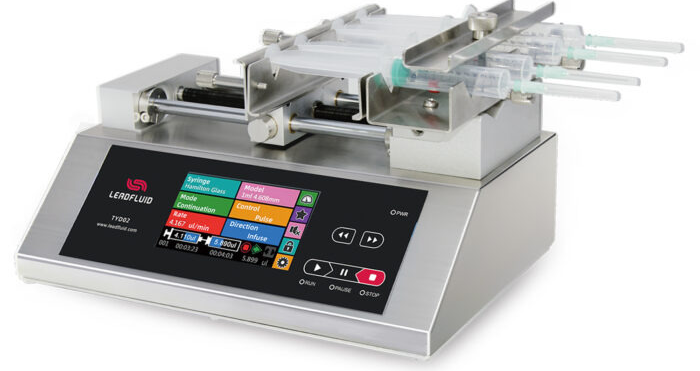

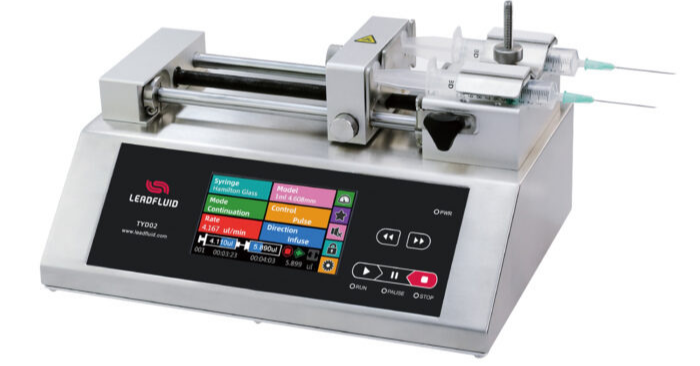

TYD02-02		TYD02-02 Laboratory Syringe Pump TYD02-02 syringe pump adopts integrated table model design, 5 inch HD LCD touch screen display and operation, can assembly 2 plastic syringe or gas tight syringes, size range of syringe 10μL～140mL,flow range 0.184nL/min～173.718mL/min. Use excellent control system and precision mechanical structure, linear travel accuracy <±0.35%, multiple working modes are available,powerful function It is very suitable for high precision micro-transmission of various fluids in scientific research and experiment. Drive screw fixation using high strength aviation bearing, compared with traditional copper sleeve bearing, the service life of the screw has been significantly improved, and the accuracy is higher. Strong Anti-EMI performance, continuous and stable operation under high voltage electrostatic field. RS485 communication, compatibility MODBUS protocol, automation control system can be composed of computer, PLC, single chip computer etc. multiple host computers. Flow: 0.184nL/min-173.718mL/min Max: 2 Channels
TYD02-04		TYD02-04 Laboratory Syringe Pump TYD02-04 syringe pump adopts integrated table model design, 5 inch HD LCD touch screen display and operation, can assembly 4 plastic syringe or gas tight syringes, size range of syringe 10μL～10mL,flow range 0.184nL/min～24.520mL/min. Use excellent control system and precision mechanical structure, linear travel accuracy <±0.35%, multiple working modes are available,powerful function It is very suitable for high precision micro-transmission of various fluids in scientific research and experiment. Drive screw fixation using high strength aviation bearing, compared with traditional copper sleeve bearing, the service life of the screw has been significantly improved, and the accuracy is higher. Strong Anti-EMI performance, continuous and stable operation under high voltage electrostatic field. RS485 communication, compatibility MODBUS protocol, automation control system can be composed of computer, PLC, single chip computer etc. multiple host computers. Flow: 0.184nL/min-24.520mL/min Max: 4 Channels

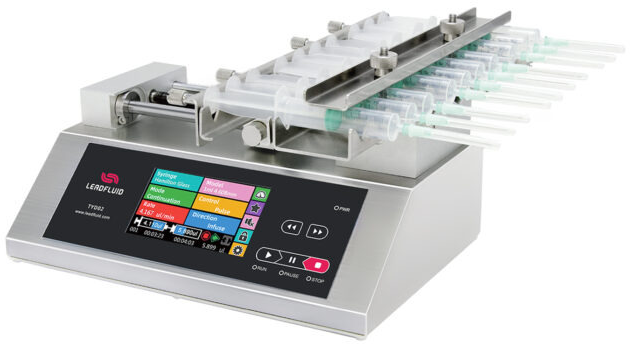

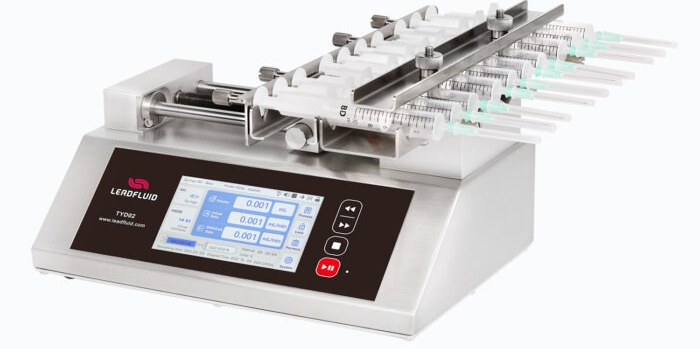

TYD02-10		TYD02-10 Laboratory Syringe Pump TYD02-10 syringe pump adopts integrated table model design, 5 inch HD LCD touch screen display and operation, can assembly 10 plastic syringe or gas tight syringes, size range of syringe 10μL～10mL, flow range 0.184nL/min～24.520mL/min. Use excellent control system and precision mechanical structure, linear travel accuracy <±0.35%, multiple working modes are available,powerful function It is very suitable for high precision micro-transmission of various fluids in scientific research and experiment. Drive screw fixation using high strength aviation bearing, compared with traditional copper sleeve bearing, the service life of the screw has been significantly improved, and the accuracy is higher. Strong Anti-EMI performance, continuous and stable operation under high voltage electrostatic field. RS485 communication, compatibility MODBUS protocol, automation control system can be composed of computer, PLC, single chip computer etc. multiple host computers. Flow: 0.184nL/min-24.520mL/min Max: 10 Channels

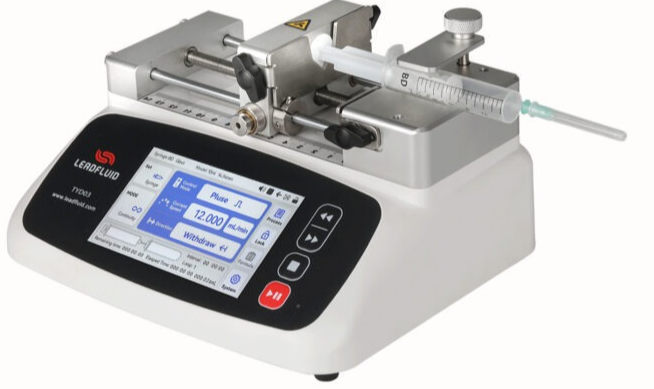

TYD03-01(New)		TYD03-01(New)Laboratory Syringe Pump TYD03-01 laboratory syringe pump is a high-precision and multifunctional desktop syringe pump designed specifically for laboratory applications. Its unique design and functional features make it an good choice for various experimental environments. Adopts integrated table model design, 5-inch HD LCD touch screen display and operation, can assembly 1 plastic syringe or gas tight syringe, size range of syringe 10μL～60mL，flow range 0.037nL/min(10μL)～16.663mL/min (60mL). Use excellent control system and precision mechanical structure, linear travel accuracy<± 0.35%, multiple working modes are available,powerful function It is very suitable for high precision micro-transmission of various fluids in scientific research and experiment. Flow: 0.037nL/min-16.663mL/min Max: 1 Channel
TFD01-01		TFD01-01 Split Laboratory Syringe Pump TFD01-01 is a single channel multi-mode micro syringe pump. There are five working modes available: infusion, withdrawal, infusion then withdrawal, withdrawal then infusion and continuous cycle.  It has split structure. The execution part is equipped with a mounting bracket to use cooperatively with microscopic operating equipment, stereotaxic instrument and other fixtures.  It can be used with 5μL-1000μL microliter syringe. The high precision control is suitable for all kinds of biological experiments. High resolution color touch LCD screen is convenient to set parameters.  Multiple indicators show the working status. Built-in RS485 Modbus to work with external control device. TFD01-01 is suitable for syringe size 5μL-1mL, linear force from 0.635μm/min to 95.25mm/min. Flow: 0.058nL/min-1.587mL/min Max: 1 Channel
TFD02-01		TFD02-01 Split Style Laboratory Syringe Pump TFD02-01 laboratory syringe pump consists of two parts, controller and execution unit.exquisite structure, high precision, stable operation. The controller and execution unit are separated, through cables connecting, and equipped with fast socket connector, easy to disassemble and assemble. It can be used in conjunction with other instruments and devices,such as brain stereotaxis. Execution unit can cooperate with 10μl～60ml syringe, which is suitable for various micro-injection. Flow: 0.184nL/min-83.318mL/min Max: 1 Channel
TFD03-01		TFD03-01 Split Style Laboratory Syringe Pump TFD03-01 laboratory syringe pump consists of two parts, controller and execution unit.exquisite structure, high precision, stable operation. The controller and execution unit are separated, through cables connecting, and equipped with fast socket connector, easy to disassemble and assemble. It can be used in conjunction with other instruments and devices, such as brain stereotaxis. Execution unit can cooperate with 0.5μL～100μL syringe, which is suitable for various micro-injection. Smaller Size, Easier To Clamp. Flow: 0.005nL/min-152.456uL/min Max: 1 Channel

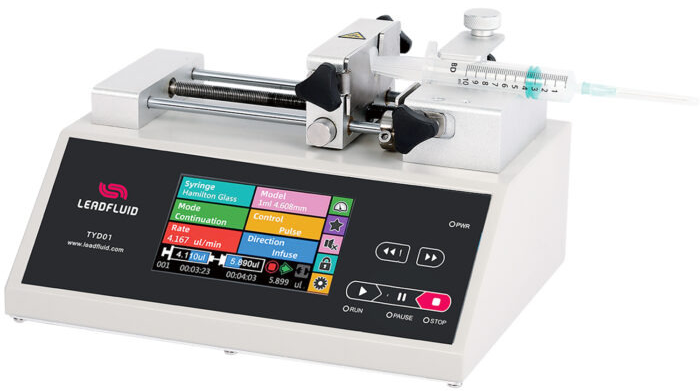

TYD01-01		TYD01-01 Laboratory Syringe Pump TYD01-01syringe pump adopts integrated table model design, 4.3-inch HD LCD touch screen display and operation, can assembly 1 plastic syringe or gas tight syringes, size range of syringe 10μL～60mL,flow range 0.184nL/min～83.318ml/min. Use excellent control system and precision mechanical structure, linear travel accuracy<±0.35%, multiple working modes are available,powerful function It is very suitable for high precision micro-transmission of various fluids in scientific research and experiment. Drive screw fixation using high strength aviation bearing, compared with traditional copper sleeve bearing, the service life of the screw has been significantly improved, and the accuracy is higher. Strong Anti-EMI performance, continuous and stable operation under high voltage electrostatic field. RS485 communication, compatibility MODBUS protocol, automation control system can be composed of computer, PLC, single chip computer etc. multiple host computers. Flow: 0.184nL/min-83.318mL/min Max: 1 Channel

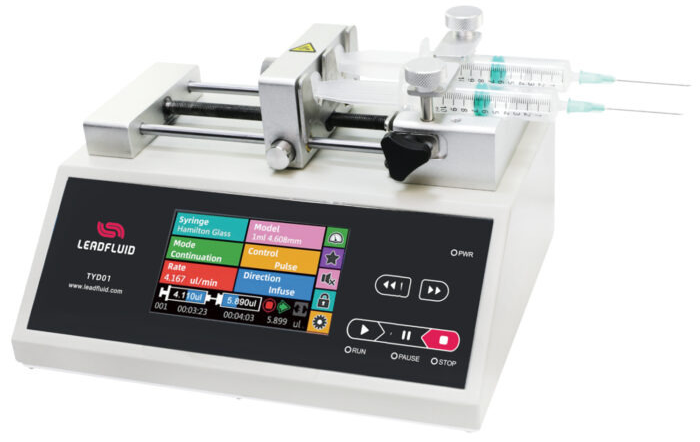

TYD01-02		TYD01-02 Laboratory Syringe Pump TYD01-02 series syringe pump adopts integrated table model design, 4.3-inch HD LCD touch screen display and operation, can assembly 1 plastic syringe or gas tight syringes, size range of syringe 10μL～60mL,flow range 0.184nL/min～83.318ml/min. Use excellent control system and precision mechanical structure, linear travel accuracy<±0.35%, multiple working modes are available,powerful function It is very suitable for high precision micro-transmission of various fluids in scientific research and experiment. Drive screw fixation using high strength aviation bearing, compared with traditional copper sleeve bearing, the service life of the screw has been significantly improved, and the accuracy is higher. Strong Anti-EMI performance, continuous and stable operation under high voltage electrostatic field. RS485 communication, compatibility MODBUS protocol, automation control system can be composed of computer, PLC, single chip computer etc. multiple host computers. Flow: 0.184nL/min-83.318mL/min Max: 2 Channels
TYD02-01		TYD02-01 Laboratory Syringe Pump TYD02-01syringe pump adopts integrated table model design, 4.3-inch HD LCD touch screen display and operation, can assembly 1 plastic syringe or gas tight syringes, size range of syringe 10μL～140mL,flow range 0.184nL/min～173.718mL/min. Use excellent control system and precision mechanical structure, linear travel accuracy<±0.35%, multiple working modes are available,powerful function It is very suitable for high precision micro-transmission of various fluids in scientific research and experiment. Drive screw fixation using high strength aviation bearing, compared with traditional copper sleeve bearing, the service life of the screw has been significantly improved, and the accuracy is higher. Strong Anti-EMI performance, continuous and stable operation under high voltage electrostatic field. RS485 communication, compatibility MODBUS protocol, automation control system can be composed of computer, PLC, single chip computer etc. multiple host computers. Flow: 0.184nL/min-173.718mL/min Max: 1 Channel
TYD02-02		TYD02-02 Laboratory Syringe Pump TYD02-02 syringe pump adopts integrated table model design, 4.3-inch HD LCD touch screen display and operation, can assembly 1 plastic syringe or gas tight syringes, size range of syringe 10μL～140mL,flow range 0.184nL/min～173.718mL/min. Use excellent control system and precision mechanical structure, linear travel accuracy<±0.35%, multiple working modes are available,powerful function It is very suitable for high precision micro-transmission of various fluids in scientific research and experiment. Drive screw fixation using high strength aviation bearing, compared with traditional copper sleeve bearing, the service life of the screw has been significantly improved, and the accuracy is higher. Strong Anti-EMI performance, continuous and stable operation under high voltage electrostatic field. RS485 communication, compatibility MODBUS protocol, automation control system can be composed of computer, PLC, single chip computer etc. multiple host computers. Flow: 0.184nL/min-173.718mL/min Max: 2 Channels
TYD02-04		TYD02-04 Laboratory Syringe Pump TYD02-04 syringe pump adopts integrated table model design, 4.3-inch HD LCD touch screen display and operation, can assembly 4 plastic syringe or gas tight syringes, size range of syringe 10μL～10mL,flow range 0.184nL/min～24.520mL/min. Use excellent control system and precision mechanical structure, linear travel accuracy<±0.35%, multiple working modes are available,powerful function It is very suitable for high precision micro-transmission of various fluids in scientific research and experiment. Drive screw fixation using high strength aviation bearing, compared with traditional copper sleeve bearing, the service life of the screw has been significantly improved, and the accuracy is higher. Strong Anti-EMI performance, continuous and stable operation under high voltage electrostatic field. RS485 communication, compatibility MODBUS protocol, automation control system can be composed of computer, PLC, single chip computer etc. multiple host computers. Flow: 0.184nL/min-24.520mL/min Max: 4 Channels
TYD02-10		TYD02-10 Laboratory Syringe Pump TYD02-10 syringe pump adopts integrated table model design, 4.3-inch HD LCD touch screen display and operation, can assembly 10 plastic syringe or gas tight syringes, size range of syringe 10μL～10mL,flow range 0.184nL/min～24.520mL/min. Use excellent control system and precision mechanical structure, linear travel accuracy<±0.35%, multiple working modes are available,powerful function It is very suitable for high precision micro-transmission of various fluids in scientific research and experiment. Drive screw fixation using high strength aviation bearing, compared with traditional copper sleeve bearing, the service life of the screw has been significantly improved, and the accuracy is higher. Strong Anti-EMI performance, continuous and stable operation under high voltage electrostatic field. RS485 communication, compatibility MODBUS protocol, automation control system can be composed of computer, PLC, single chip computer etc. multiple host computers. Flow: 0.184nL/min-24.520mL/min Max: 10 Channels

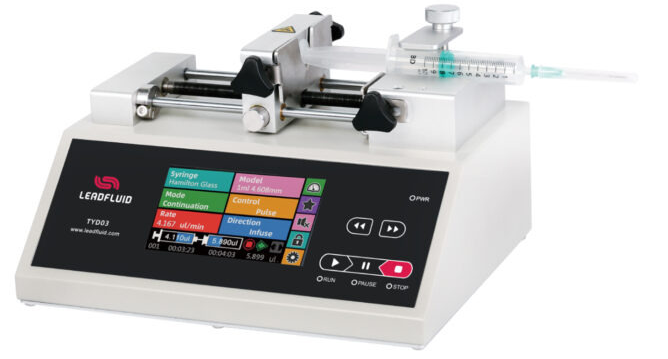

TYD03-01		TYD03-01 Laboratory Syringe Pump TYD03-01syringe pump adopts integrated table model design, 4.3-inch HD LCD touch screen display and operation, can assembly 1 plastic syringe or gas tight syringes, size range of syringe 10μl～60ml,flow range 0.037nL/min～16.663mL/min. Use excellent control system and precision mechanical structure, linear travel accuracy<±0.35%, multiple working modes are available,powerful function It is very suitable for high precision micro-transmission of various fluids in scientific research and experiment. Drive screw fixation using high strength aviation bearing, compared with traditional copper sleeve bearing, the service life of the screw has been significantly improved, and the accuracy is higher. Strong Anti-EMI performance, continuous and stable operation under high voltage electrostatic field. RS485 communication, compatibility MODBUS protocol, automation control system can be composed of computer, PLC, single chip computer etc. multiple host computers. Flow: 0.037nL/min-16.663mL/min Max: 1 Channel
TSD01-01		TSD01-01 Two-way push-pull Style Laboratory Syringe Pump TSD01-01 is a small flow, high precision, can be continuous transmission liquid syringe pump. Durable mechanical transmission design, long life and good reliability. Screw fixation using special high precision aviation bearing alternatives to traditional copper, longer service life and high precision. High resolution color LCD, touch screen is convenient fast set parameters, multiple light clear confirmed its working state. Support for multiple syringe to choose, to meet the requirements of different experimental flow and high precision control,and protection agencies and alarm mechanism. RS485 communication, support the MODBUS protocol, wide range power input, adapt to various occasions. Flow: 0.184nL/min-83.318mL/min Max: 2 Channels







2. Industrial Syringe Pumps

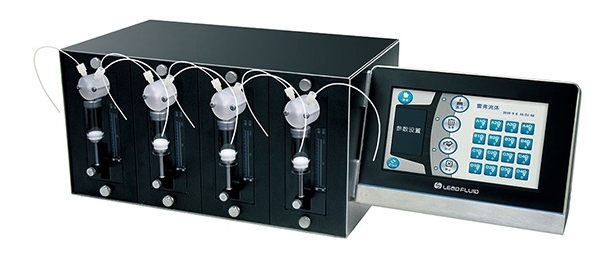

DF30-G		DF30-G Series Micro Syringe Pump Dispensing System Suitable for 10μl~5ml, high-precision dispensing of aqueous liquids. Manual operation and automatic control modes ,cooperate with automatic filling production line.

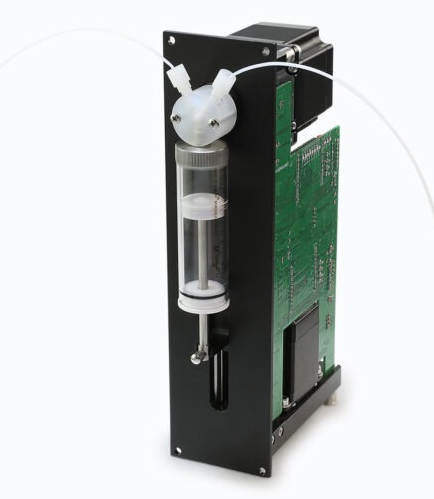

G6060-1S		G6060-1S Industrial Micro Syringe Pump G6060-1S is mainly suitable for high-precision continuous transmission, dilution, distribution, and other processes of micro-liquid.

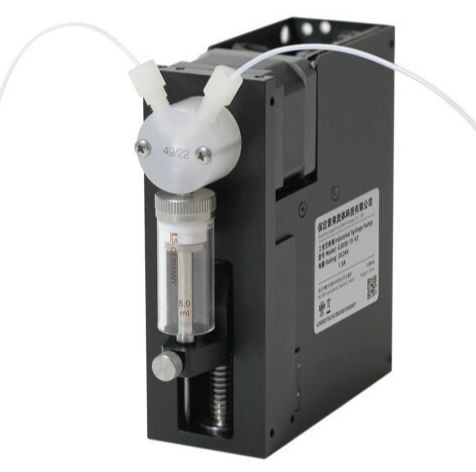

G3030-1S		G3030-1S Industrial Syringe Pump Equipped with a high-precision feedback system, significantly enhancing detection sensitivity and operational stability. Compatible with various valve specifications and has a lifespan of over one million cycles, effectively reducing maintenance costs. Meticulously designed for needs such as pipetting, diluting, and dispensing, it is widely used in equipment support systems like environmental detectors, spray coating machines, and pipetting workstations, meeting high-performance fluid handling requirements in both industrial and research settings.
