Force-sensitive matrices is the perfect entry-level solution for capturing and visualizing detailed data from printed pressure sensor matrices.

It provides you with everything you need to perform your own experiments and evaluate different sensor architectures, resolutions, sensitivities and materials with respect to your application.







FSR Sensor Package



Hardware

• Main board with 1 Analog Module
• Arduino Nano BLE (pre-programmed)





Software

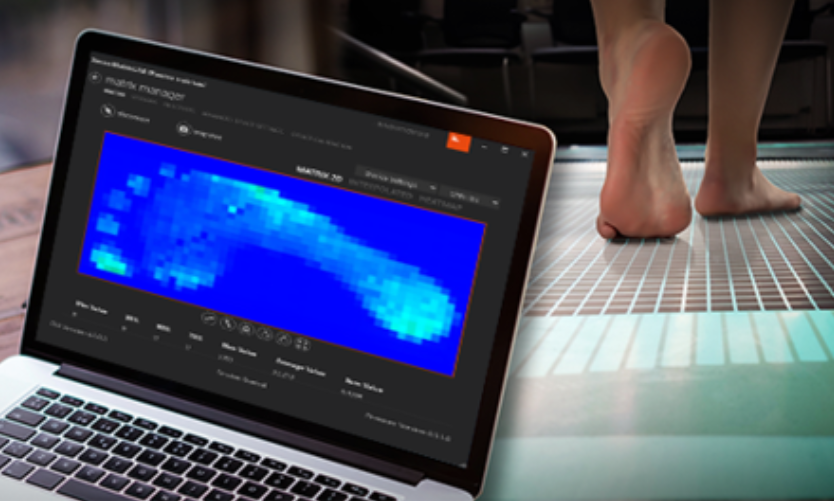

• Proprietary SensorMatrixLAB software - basic license

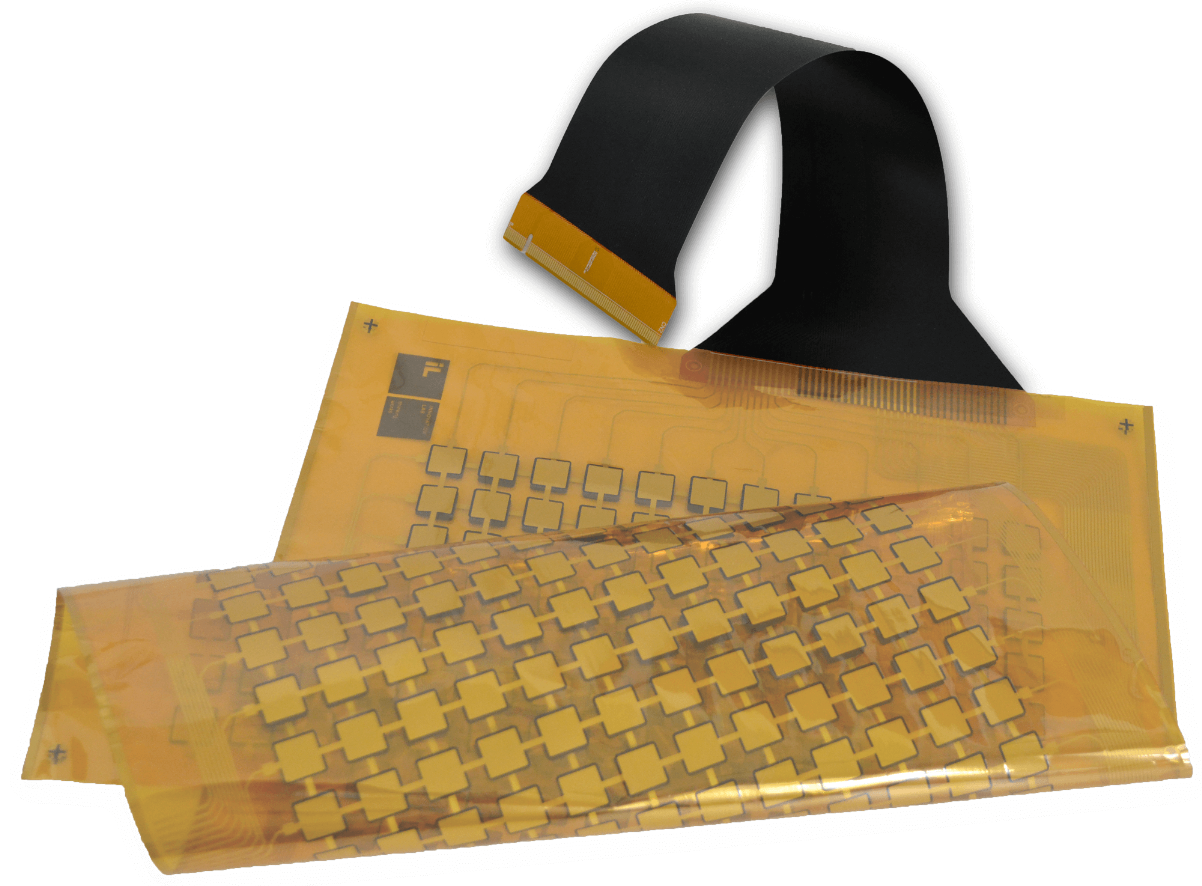

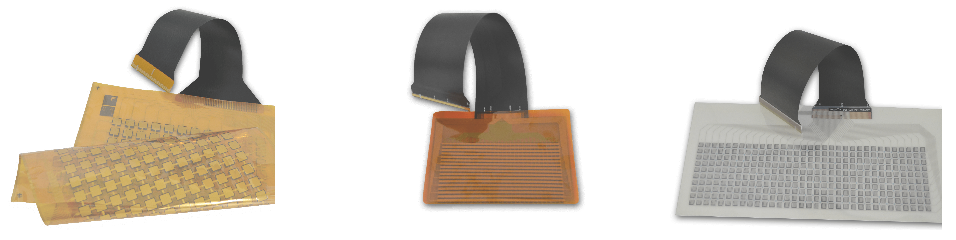

FSR sensor

• TM29x17: Thru mode architecture with high spatial resolution for high pressure on 50 µm PI foil
• TM21x20: Thru mode architecture for large area applications on 25 µm PI foil
• SM32x10: Shunt mode architecture with specifically high sensitivity on 75 µm PEN foil





Model	TM29x17	M21x20	SM32x10
Measurement Mode	Thru	Thru	Shunt
Resolution(of pixels)	29x17	20x12	33x10
Active area( )	15x9	38x22	33x10
Pixel size( )	0.32x0.32	1.1x1.1	0.62x0.57
Foil material	PI 50 um	PI 25um	PEN 100um
Operating temperature	- 20  ~  -100	- 20  ~  -100	- 20  ~  -100
Suitability for Low pressure	+	++	++
Suitability for High pressure	++	+	-









System Specification

• 12-bit ADC resolution
• Supports sensor matrices with a resolution up to 32x32 sensor pixels
• Alternatively, up to 8 individual FSR sensor pixels can be read out simultaneously
• Scan frequency (for 32x32 matrix): 8 Hz
• Implementation as extension board for Arduino NanoBLE©
• Arduino includes BLE connectivity, 3D accelerometer, gyroscope and magnetometer
• Powering options: USB port or battery
• Simple data readout via USB Serial







Application

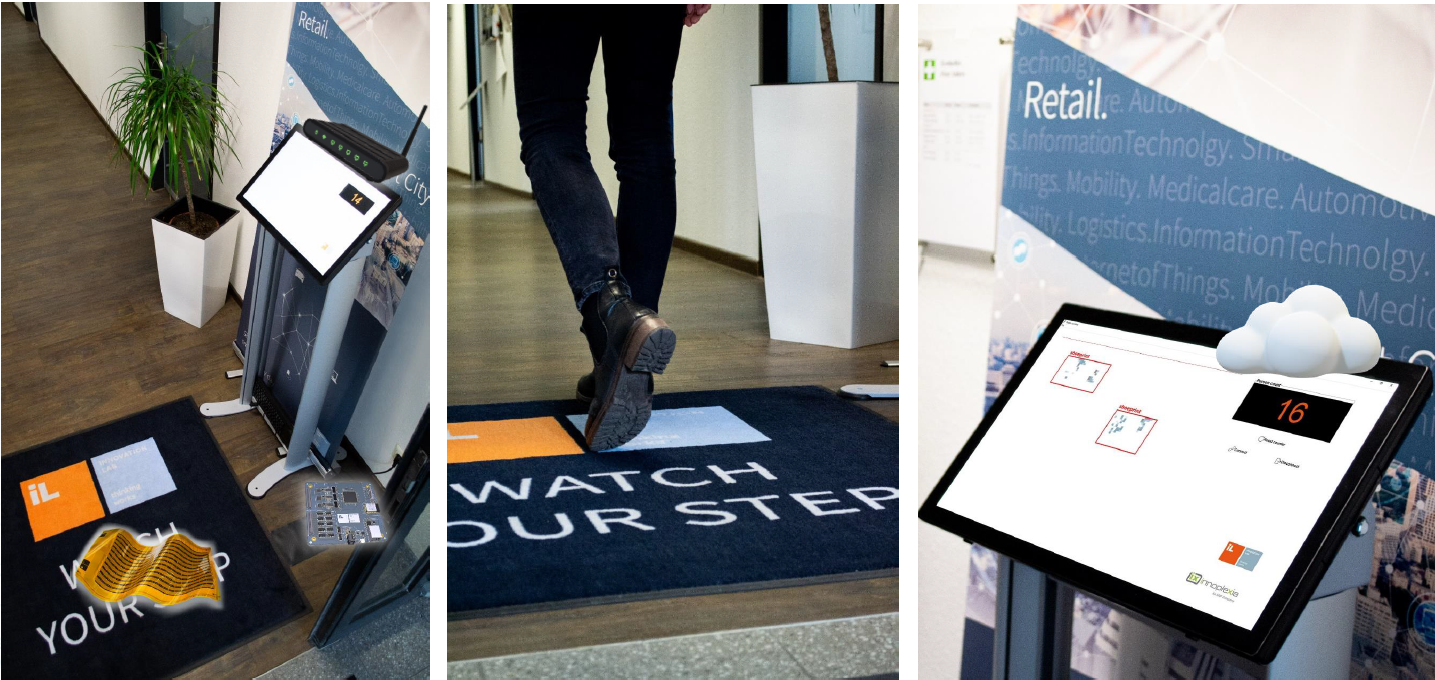

Carpet pressure monitoring



Teeth pressure monitoring



Battery temperatury monitoring

Seat pressure monitoring
